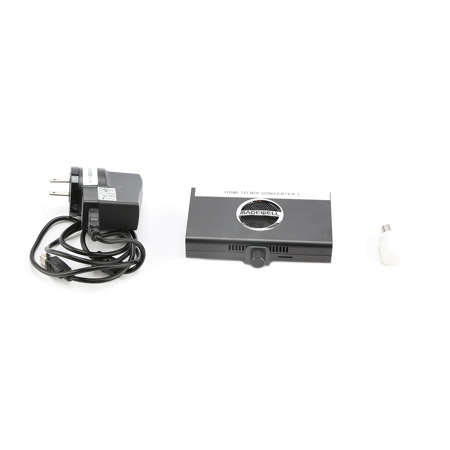

Used Magewell Pro Convert HDMI Plus to NDI Converter

Microsoft Internet Explorer 11
Microsoft Edge
Mozilla Firefox version 61 and above
Google Chrome version 49 and above
Apple Safari 11.1 and above
Opera 55.0.2994.44 and above

OBS
XSplit
vMix
VidBlasterX
Wirecast
streamstar SW
mimoLive
Any other NewTek NDI-enabled encoding or streaming software

HDMI:
DVI-D 1.0
HDMI 1.4

HDMI:
DVI-D 1.0
HDMI 1.4

SD Card (functions to be developed)

Mini-DIN-8 jack

1/4-20 mounting hole

10/100/1000Mbps Ethernet
IEEE 802.3af PoE

USB 2.0 Type B
5V/2.1A power supply
USB RNDIS/ECM

Support for input video resolutions up to 4096x2160

297MHz HDMI receiver
Adaptive HDMI equalizer
Support for customized EDID
Support for extraction of AVI/Audio InfoFrames
Full colorimetry support
Support for up to 4096x2160 4:4:4/4:2:2 30fps or 4096x2160 4:2:0 60fps input signals
Support for 8 channel IEC60958 audio streams
Support for extraction of audio formation information & channel status data

Support for extraction of video timing information
Support for extraction of 3D format information
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode

Support for 4:2:2 8-bit output
Support for up to 2048x2160 120fps
Support for NDI 3.x

Video processing pipelines with 160 Mpixels/s
Video brightness, contrast, saturation, hue adjustment
Video de-interlacing: Top field only, Bottom field only
Video aspect ratio conversion: Auto or manual selection of output aspect ratio
Video color format conversion: Auto or manual selection of input color format & quantization range; Auto or manual selection of output color format, quantization range & saturation range

Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats; Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats; Support for Limited or Full quantization range; Support for Limited, Full & 'Extended gamut' saturation range

Support for setting the device name shown in the system using Web UI. By default, the device name is 'Pro Convert'
Support for setting the source name shown in the system using Web UI. By default, the source name is 'board-index + serial number'
Support for setting board-index, from 0 to F, through on-board rotary switch

Support for manual update using Web UI

Status LEDs indicate:
The state of power supply: On/off
Tally: Preview/program
The state of input signal: Locked/unlocked
The state of loop through signal: Loop through connected and signal detected/undetected

5V max current: Approx. 1.5A
Max power consumption: Approx. 8W

Operating temperature: 0 to 45 deg. C (32 to 113 deg. F)
Storage temperature: -20 to 70 deg. C (-4 to 158 deg. F)
Relative Humidity: 5% to 90% non-condensing

117.5 x 66.7 x 23.4mm (4.63 x 2.63 x 0.92")
