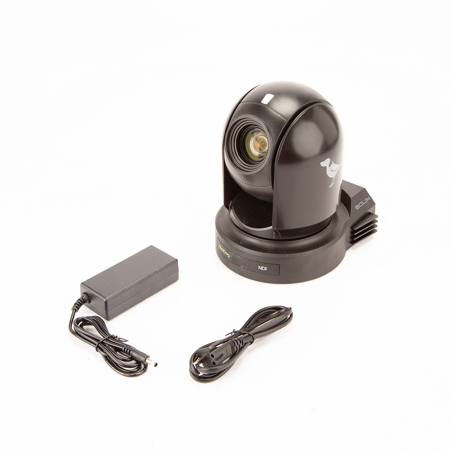

Used BirdDog Eyes P200 1080P Full NDI PTZ Camera with Sony Sensor - SKU#1931053

SKU: US1930942 MFR: BDP200B
Earn VIP Reward Points

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

BirdDog Eyes P200 Specifications

Camera
  • Image Sensor

    1 / 2.8" CMOS 2.13MP

  • Lens

    4.3-129mm

  • Optical Zoom

    30x

  • Digital Zoom

    12x

  • Horizontal Angle of View

    63.7 degree (W) - 2.3 degree (T)

  • Aperture

    F1.6 (W) - F4.7 (T)

  • Min. Illumination

    Color: 0.01 lux (F1.6, AGC on, 1/30s, High sensitive mode), 0.1 lux (F1.6, AGC on, 1/30s, Normal sensitive mode)

  • Shutter Speed

    1/1 - 1/10000s

  • Focus

    Auto, Push, Manual

  • White Balance

    Auto, Indoor, Outdoor, Manual, OPW, ATW

  • Exposure

    Auto, Manual, Shutter/Iris Priority

  • Backlight Comensation

    YES

Mechanical

Jump to...
  • Pan Movement

    Horizontal: +/-350 degrees continuous pan (Zoom Adaptive Speed Range: 0.05 Degree -100 Degree /S )

  • Tilt Movement

    Vertical: +90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05 Degree -50 Degree /S)

  • Preset Positions

    128 (Speed adjustable: Up to 150o/s)

  • Preset Speed

    0-5 Level adjustable

  • Environmental

    Indoor

Video Interface

Jump to...
  • Video Output

    NDI/HDMI/SDI

  • Video Formats

    1080P 60, 59.94, 50, 29.97, 25
    1080i 60, 59.94, 50
    720p 60, 59.94, 50, 29.97, 25

  • Audio I/O

    3.5mm Audio In (Stereo)
    3.5mm Audio Out (Stereo)

Control Interface

Jump to...
  • IP PTZ Control

    NDI Control (auto configuring)

  • Serial PTZ Control

    2x RJ45: RS232/RS422/RS485

  • Serial Control Protocol

    VISCA / Pelco D

Network

Jump to...
  • Video Compression

    Full NDI - i-frame high quality low latency NDI for production

  • Network Protocol

    NDI - Discovery, configuration and control

  • Web Control interface

    Full control via Web/Mobile UI including Scene presets

Power & Dimension

Jump to...
  • Operating Temperature

    14 degree F - 122 degree F (-10 degree C - +50 degree C)

  • Operating Humidity

    =< 80%

  • Power Input

    12vDCm, PoE+ (IEEE 802.3at)

  • Dimensions

    6.29 x 7.0 x 8.66" (160 x 178 x 220mm)

  • Weight

    4.40 lb (2.0kg)

About BirdDog Eyes P200 1080P Full NDI PTZ Camera with Sony Sensor - SKU#1931053

NDI Has Never Looked So Good.

Designed for serious production the image quality of P200 is best in class. By teaming up BirdDog’s custom NDI silicon chip, a Sony CMOS Backlit Sensor, and a true Sony Image Module, P200 has lightening auto focus, incredibly sharp images, and insanely fast zoom. P200 has frame rates up to 1080p60, 30x optical zoom, and features independent, live triple outputs in SDI, HDMI and Full NDI.

NDI Has Never Looked So Good.

Full NDI. No Compromises.

In the world of NDI® there are two flavours, NDI and NDI|HX. NDI is a variable bit rate, I-Frame codec that is reaches around 140Mbits at 1080p60 and is visually lossless. NDI|HX is a compressed, long-GOP, H.264 variant that reaches around 12Mbits at 1080p60. P200 is a Full NDI camera.

Full NDI. No Compromises.

Sony Sensor. Optics Done Right.

The best pictures come from the best silicon. P200 is teams up a world class Sony CMOS Backlit Sensor with the BirdDog custom NDI® chip to form a match made in silicon heaven. Your productions deserve the best.
Lightning auto focus. Insanely fast zoom. Precision optics. The only way to achieve the best picture quality is with image module made by the world’s best. P200 uses a true Sony image module to give unparalleled performance, picture quality, and responsiveness.

Sony Sensor. Optics Done Right.

BirdDog & Bolin. BFF’s.

Sometimes a partnership is so strong it creates more than the sum of the individual parts. BirdDog and Bolin have joined forces to bring the World’s Best range of NDI PTZ gear to market. With Bolin’s commitment to using the highest quality Sony Sensors and their ability to build weatherproof cameras BirdDog knew there was only one PTZ partner that shared BirdDog’s vision of bringing to market the highest quality products at reasonable prices. Through BirdDog’s NDI know-how and Bolin’s unrivalled PTZ engineering pedigree an unbreakable partnership has formed. Batman and Robin. Mulder and Scully. Joanie and Chachi. You get the idea.

BirdDog & Bolin. BFF’s.

Triple Output. NDI, SDI & HDMI.

With NDI, SDI, and HDMI simultaneous outputs the P200 is ready to go live with your full NDI workflow today or if you are still in an old school SDI workflow you can control via RS422, RS485, and RS232. No matter which way you like to work, you can rest easy in the knowledge that P200 has you covered for all workflow situations.

Triple Output. NDI, SDI & HDMI.

PTZ Keyboard. Take Control.

Combine P200 with the BirdDog PTZ Keyboard and you have total control of all functions remotely. PTZ Keyboard is a full featured PTZ Keyboard that can control up to 255 PTZ cameras on a single network so can scale to even the most complex installations. PTZ Keyboard can control P200 over NDI or by RS422 / RS232 when using in SDI mode.

PTZ Keyboard. Take Control.

Warranty Information

This used item has a FREE 180-day warranty. See details.
