CyberPower CST135XLU Specifications

General

General

Jump to...
  • Typical Applications

    Desktop Computers
    Workstations
    Home Theater Equipment
    Personal Electronics
    Home Networking
    VoIP Phone Systems
    Automatic Voltage Regulation

  • Energy Saving

    GreenPower UPS Bypass Technology

  • Energy Star Certified

    Yes

  • UPS Topology

    Line Interactive

  • Circuit Breaker

    15 A

  • Cord Length

    6' (1.8m)

  • Input Frequency Range

    57 Hz - 63 Hz

  • Input Plug Type

    NEMA 5-15P

  • Input Voltage Range

    90 VAC - 142 VAC

  • Nominal Input Voltage

    120 VAC

  • Automatic Voltage Regulation

    Single Boost

  • On AC WaveForm

    Sine Wave

  • On Battery Frequency

    60 Hz +/- 1%

  • On Battery Voltage

    120 VAC +/- 5%

  • On Battery Waveform

    Simulated Sine Wave

  • Outlet Type

    10 - NEMA 5-15R

  • Outlets - Battery & Surge Protected

    5

  • Outlets - Surge-Only Protected

    5

  • Outlets - Total

    10

  • Output Power Factor

    0.6

  • Overload Protection

    Internal Circuitry Limiting
    Circuit Breaker Protected

  • Typical Transfer Time

    4 ms

  • USB Charge Port

    Yes

  • USB Charge Port Amperage

    2.1 Amps (Shared)

  • USB Charge Port Quantity

    2

  • USB Charge Port Standard

    Type A

  • USB Charge Port Type

    2 Type A

  • USB Charge Port Voltage

    5 VDC

  • Under/Over-Voltage Correction

    0.1

  • VA

    1350 VA

  • Watts

    810 W

Surge Protection & Filtering

Jump to...
  • EMI/RFI Filtration

    Yes

  • Phone / Network Protection RJ11/RJ45

    1-In / 1-Out (Combo)

  • Surge Suppression (Joules)

    1500 J

Management & Communications

Jump to...
  • Audible Alarms

    Battery Mode
    Low Battery
    Overload

  • HID Compliant USB Port

    Yes

  • LCD

    Multifunction LCD

  • LED Indicators

    Power On
    Wiring Fault

  • Management Cable

    USB Cable

  • Serial Port

    1 Serial

  • Software (Free Download)

    PowerPanel Personal

Environmental

Jump to...
  • Operating Elevation

    0 - 10000' (0 - 3048m)

  • Operating Relative Humidity

    0 - 90 % (non-condensing)

  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Storage Elevation

    0 - 50000' (0 - 15239m)

  • Storage Temperature

    5 - 113 Degree F (-15 - 45 Degree C)

Certifications

Jump to...
  • Environmental

    RoHS Compliant

  • Safety

    UL1778

Battery

Jump to...
  • Battery Size

    12 V / 7 Ah

  • Battery

    Sealed Lead-Acid Battery

  • Hot Swappable

    No

  • Replacement Battery Cartridge

    RB1270X2C

  • Runtime at Full Load

    2 min

  • Runtime at Half Load

    10 min

  • Typical Recharge Time

    8 Hours

  • User Replaceable Battery

    Yes

  • Battery Info

    Required, included

  • Battery Material

    Lead acid

  • Battery Type

    Non-universal

  • Battery Quantity

    2

Physical

Jump to...
  • Color

    Black

  • Form Factor

    Mini-Tower

  • Material

    Plastic

  • Dimensions (W x H x D)

    3.9 x 9.7 x 10.2" (9.91 x 24.64 x 25.91cm)

  • Weight

    23 lbs (10.43kg)

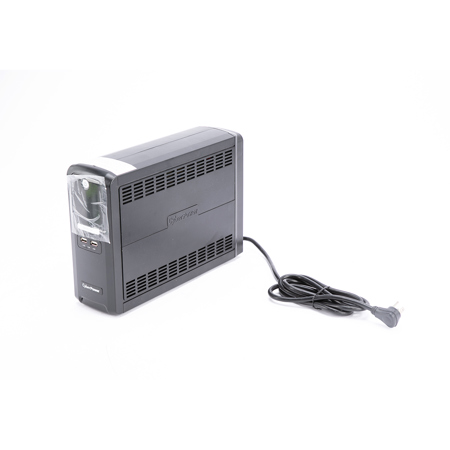

About CyberPower CST135XLU 1350VA/810W Simulated Sinewave LCD Battery Backup UPS System, Black

The CyberPower Intelligent LCD CST135XLU is a mini-tower UPS system featuring line interactive topology. This advanced system provides reliable battery backup and surge protection for a range of devices, including desktop computers, workstations, networking devices, and home entertainment systems.

Utilizing simulated sine wave output, the CST135XLU ensures a steady supply of power, even during minor power fluctuations. This is achieved through the use of Automatic Voltage Regulation (AVR), a feature that corrects these fluctuations without the need to switch to battery power, thereby extending the battery life. This makes the CST135XLU an ideal choice for areas where power inconsistencies are common.

The system also includes two USB charge ports with a shared 2.1 Amp capacity, allowing for the rapid charging of portable devices such as smartphones, MP3 players, and cameras.

In addition to its primary functions, the CST135XLU offers a range of protective features. Surge Protection diverts excess voltage away from sensitive electronics during power surges or spikes, preventing potential damage. Data Line Protection safeguards against power surges traveling through telephone, coaxial, and Ethernet lines.

The CST135XLU also boasts a Line Interactive Topology, which includes an autotransformer that regulates both low and high voltages without the need to switch to battery power. This feature, combined with the Simulated Sine Wave Output, ensures a cost-effective battery backup solution for equipment that doesn't require sine wave output.

The system's GreenPower UPS Bypass Design is a patented feature that allows stable AC power to bypass the UPS transformer, reducing energy consumption, noise, and heat buildup.

The CST135XLU also features a Multifunction LCD Panel that displays detailed information on battery backup and power conditions, alerting users to potential issues before they can affect critical equipment. Its Ultra Quiet Design minimizes operational noise, creating a quieter work environment.

The system comes with PowerPanel Personal Edition Software, providing a user-friendly dashboard interface for controlling and monitoring the UPS. This model is an ENERGY STAR certified Uninterruptible Power Supply (UPS) system, signifying its energy efficiency and environmental friendliness.

The CST135XLU also includes an Automatic Voltage Regulation (AVR) feature that stabilizes the incoming AC signal to maintain output power at a nominal 120 volts, significantly increasing battery life and reducing the risk of data loss, memory freezes, and system crashes.

Finally, the system's Transformer Outlets are spaciously designed to accommodate transformer block adapters or other large-sized adapters, making it a versatile addition to any home or office setup.

CyberPower CST135XLU 1350VA/810W Simulated Sinewave LCD Battery Backup UPS System, Black Features

  • Line Interactive Topology
  • Automatic Voltage Regulation (AVR)
  • Simulated Sine Wave Output
  • USB Charge Ports
  • GreenPower UPS Bypass Design
  • Multifunction LCD Panel
  • PowerPanel Personal Edition Software

What's in the box:

  • CyberPower CST135XLU 1350VA/810W Simulated Sinewave LCD Battery Backup UPS System (Black)
  • USB A+B Type Cable
  • User Manual
