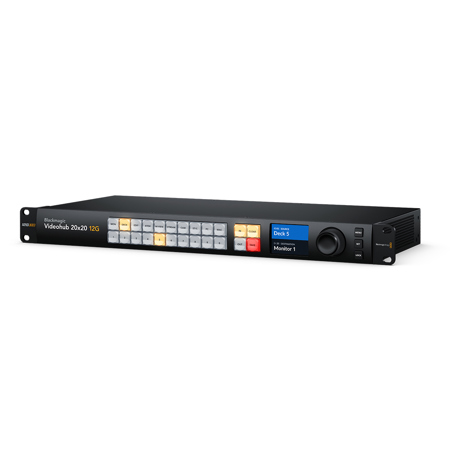

Used Blackmagic Design Videohub 12G Router, 20 Inputs and 20 Outputs

SKU: US1934936 MFR: VHUBSMAS12G02020
Earn VIP Reward Points

Key Features

  • Seamlessly route video with the Videohub 12G Router's 20x20 SDI matrix for efficient workflows.
  • Enjoy universal SDI compatibility, from SD to 12G-SDI, ensuring high-quality video signals always.
  • Easily control your video sources via Ethernet, USB-C, or the intuitive front panel of the router.
  • Experience pristine video quality with auto SDI reclocking on all outputs for reliable broadcasts.
  • Use the Videohub 12G Router in studios or live events for flawless high-resolution video switching.
  • Rely on the internal power supply with power fail protection, keeping your setup running smoothly.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$137.99

3 Year

$215.99

4 Year

$292.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Blackmagic Design Videohub 12G Specifications

Connections

Connections

Jump to...
  • SDI Video Inputs

    20

  • SDI Video Outputs

    20

  • SDI Rates

    DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G

  • Video Input Re-Sync

    None

  • SDI Reclocking

    On all SDI outputs

  • Reference Inputs

    Tri-Sync or Black Burst

  • Reference Outputs

    Reference terminating loop output

  • Ethernet

    Supports 10/100/1000 BASE-T

  • Computer Interface

    USB-C

Standards

Jump to...
  • SD Video Standards

    525i59.94 NTSC, 625i50 PAL

  • HD Video Standards

    720p50, 720p59.94, 720p60
    1080i50, 1080i59.94, 1080i60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
    1080PsF23,98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30

  • 2K Video Standards

    2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
    2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI

  • Ultra HD Video Standards

    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60

  • 4K Video Standards

    4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI

  • SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B
    SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU-R BT.656 and ITU-R BT.601

  • SDI Audio Sampling

    Television standard sample rate of 48kHz and 24-bit

  • SDI Video Sampling

    YUV 4:2:2 and RGB 4:4:4

  • SDI Color Precision

    10, 12-bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes

  • SDI Color Space

    REC 601, REC 709, REC 2020

  • SDI Auto Switching

    Automatically selects between 270Mb SDfSDI, 1.5G HDfSDI, 3G level A and level B HDfSDI, 6G HDfSDI, 12GfSDI and DVBfASI on each input so that each input can be running a different television standard

  • SDI Metadata Support

    Video payload identification ancillary data as per SMPTE 352M

Control

Jump to...
  • Built in Control Panel

    24 buttons for local control of Videohub with 3 buttons and search dial for menu control. 2.2 inch color display

  • External Control Panel

    Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol

  • Control Panel Connection

    Ethernet

Software

Jump to...
  • Software Control

    Router control included free for Windows and Mac

  • Internal Software Upgrade

    Via included updater application

Operating Systems

Jump to...
  • Operating Systems

    Mac 12.0 Monterey, Mac 13.0 Ventura or later.
    Windows 10, 64-bit., Windows 11

Display

Jump to...
  • Displays

    Built in 2.2" (5.58cm) LCD for video and menu settings

Power Requirements

Jump to...
  • Power Supply

    1x Internal 100 - 240V AC 50/60Hz.
    IEC power cable required

  • Power Fail Protection

    Crosspoint connections preserved and restored instantly at power on

  • Power Usage

    27.5 W max.

Physical Installation

Jump to...
  • Physical Installation

    1 rack unit height

Environmental

Jump to...
  • Operating Temperature

    0 Degree to 40 Degree C (32 Degree to 104 Degree F)

  • Storage Temperature

    -20 Degree to 60 Degree C (-4 Degree to 140 Degree F)

  • Relative Humidity

    0% to 90% non-condensing

About Blackmagic Design Videohub 12G Router, 20 Inputs and 20 Outputs

After extensive research and development, Blackmagic presents the Videohub 12G Router, an advanced and sophisticated piece of technology designed for professional video production environments. This high-tech router is equipped with 20 12G-SDI inputs and 20 12G-SDI outputs, offering an impressive range of connectivity options.

The Videohub 12G Router supports a variety of video standards, including SD, HD, and Ultra HD, all on the same router simultaneously. This innovative feature allows for versatile routing and switching of video signals from multiple sources to multiple destinations. Whether you're working in a broadcast studio, post-production facility, or live event, this router can handle it all.

One of the standout features of the Videohub 12G Router is its zero latency, making it perfect for live production and broadcast. The router's front panel LCD allows you to preview video before routing, and it clearly displays routing labels and video standards. With direct button selection and a large spin knob control equipped with an electronic clutch, routing is a breeze.

The Videohub 12G Router also boasts SDI re-clocking, external Ethernet control, and supports all SDI video standards up to 2160p60. This means you can connect and route any combination of SD, HD, and Ultra HD on the same router at the same time.

Designed to eliminate complex cable mess, the Videohub 12G Router allows you to plug all your SDI equipment into the router, then make connections electronically. This means you can connect any video input to any video output, or even a single video input to multiple video outputs.

The router's front panel is elegantly designed, featuring a spin knob for browsing, direct entry buttons for speed, and an LCD for displaying labels. The LCD also allows you to change router settings and view live video.

The Videohub 12G Router is not just a piece of equipment; it's a solution for live production racks that don't have the space for extra hardware panels. With its advanced 12G-SDI connections, full SDI re-clocking, and the ability to add external hardware control panels, this router is a future-proof technology that connects to the equipment you have now and in the future.

In conclusion, the Blackmagic Videohub 12G Router is a versatile, high-tech, and professional solution for all your video routing needs. Whether you're working in a broadcast studio, post-production facility, or live event, this router is designed to deliver reliable and high-quality performance.

Blackmagic Design Videohub 12G Router, 20 Inputs and 20 Outputs Features

  • Zero-latency video routing for real-time performance in SD, HD, and Ultra HD
  • 20 12G-SDI inputs and 20 12G-SDI outputs in a single rack unit form factor
  • Live video preview on front panel LCD for routing verification
  • Intuitive spin knob with electronic clutch for smooth video source browsing
  • SDI re-clocking ensures optimal video signal quality
  • Ethernet support for remote management and control
  • Built-in numeric keypad and shortcut buttons for quick routing
  • Multi-language support for global user accessibility
  • Emergency handling with multiple routing options
  • External hardware panel compatibility for versatile control
  • Versatile Videohub Setup Utility for easy customization
  • Developer SDK for seamless integration with automation systems
  • Support for external power sources to increase redundancy
  • Cable mess elimination through electronic connections

Warranty Information

This used item has a FREE 180-day warranty. See details.
