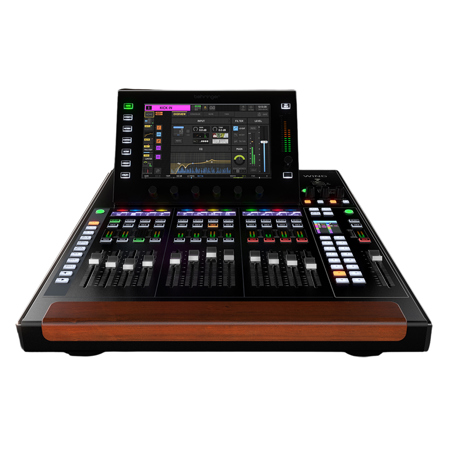

Used Behringer WING Compact 48-Channel 28-Bus Full Stereo Digital Mixing Console with 13-Fader Control Surface

SKU: US1935845 MFR: 0603-AEV86-US1

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Behringer WING Compact Specifications

Processing

Processing

Jump to...
  • Input processing channels

    40 stereo input channels, 8 stereo aux channels

  • Output processing channels

    16 stereo aux buses, 8 stereo matrices, 4 stereo mains

  • Internal effects engines

    8 premium FX slots, 8 standard FX slots (all true stereo)

  • Point-to-point routing matrix

    500 x 502 signals

  • Signal processing

    40-bit floating point, 48 kHz

  • A/D converters

    114 dB dynamic range (8-channel, 48 kHz, 24 bits)

  • D/A converters

    120 dB dynamic range (stereo, 48 kHz, 24 bits)

  • I/O latency

    1.0 ms (console input to output)

  • Network latency

    1.2 ms (stage box in > console > stage box out)

Connectors

Jump to...
  • Midas PRO series microphone preamplifier

    24 (XLR)

  • XLR balanced outputs

    8

  • Phones output

    2 (1/4" TRS, stereo)

  • Digital AES/EBU input/output

    1 / 1 (XLR)

  • AES50 ports

    3 (Klark Teknik SuperMAC, 100 Mbit/s)

  • Expansion card interface

    64 x 64 channel audio input / output

  • StageConnect HOST (Master) I/O

    1 (12 V / 18 W power supplied, XLR, 32 channels)

  • MIDI inputs/outputs

    1/1

  • GPIO on TRS, configurable

    1 x 2

  • USB 2.0 type B device

    1 (48 x 48 ch 24-bit audio and MIDI I/O)

  • USB 2.0 type A host

    1 (audio and data, 5 VDC, 1 A)

  • Ethernet LAN ports, RJ45, 1 Gbit/s

    2, internally switched

  • Audio over IP internal module socket

    Up to 64 x 64 channels @ 48 kHz (Dante, AES67 or SoundGrid modules optional)

  • IEC mains socket with power switch

    1

Mic Input to Analog Output

Jump to...
  • Design

    Midas PRO series

  • THD+N

    <0.004% (0 dB gain, 0 dBu output)
    <0.006% (+40 dB gain, 0 dBu to +20 dBu output)

  • Input impedance

    1 k Ohm / 2 k Ohm (unbalanced / balanced

  • Non-clip maximum input level

    +21 dBu

  • Phantom power

    +48 V (switchable per input)

  • Equivalent input noise

    @ +45 dB gain (150 Ohm source): -128 dBu

  • CMRR @ unity gain

    >50 dB (typical)

  • CMRR @ 40 dB gain

    >70 dB (typical)

Input/Output Characteristics

Jump to...
  • Frequency response

    @ 48 kHz sample rate, 0 to -1 dB (any gain setting): 10 Hz - 20 kHz

  • Dynamic range, analog in to analog out

    XLR / aux: 111 dB / 108 dB (typical)

  • A/D dynamic range

    Preamplifier and converter: XLR / aux 112 dB / 110 dB (typical)

  • D/A dynamic range, converter and output

    XLR / aux 118 dB / 112 dB (typical)

  • Crosstalk rejection

    @ 1 kHz, adjacent channels: 100 dB

  • Output level, XLR connectors

    +4 dBu / +21 dBu (nominal / maximum)

  • Output impedance, XLR connectors

    75 Ohm / 75 Ohm (unbalanced / balanced)

  • Headphone

    Output impedance / maximum output level: 500 mW @ 75 Ohm / +18 dBu

  • Residual noise level

    XLR out 1-16 connectors unity gain: -97 dBu

Displays

Jump to...
  • Main screen

    10.1" TFT LCD, 1280 x 800 px, capacitive touch

  • Swivel, continuous adjustment

    15 Degree - 60 Degree

  • Button assignment screen

    2.4" TFT LCD, 240 x 320 px

  • Main stereo meter

    18 segment (-60 dB to clip)

Controls

Jump to...
  • 100mm motor faders

    12 + 1

  • Touch-sensitive rotary controls

    7 + 3

  • Custom Controls

    Fully assignable backlit buttons: 16

  • Switch-mode power supply

    Auto-ranging 100-240 VAC (50/60 Hz)

  • Power consumption

    130 W

Physical

Jump to...
  • Standard operating temperature range

    41 Degree F - 113 Degree F (5 Degree C - 45 Degree C)

  • Dimensions (H x W x D)

    8.9 x 17.8 x 22.6" (225 x 453 x 574mm)

  • Weight

    34 lbs (15.4kg)

About Behringer WING Compact 48-Channel 28-Bus Full Stereo Digital Mixing Console with 13-Fader Control Surface

Take your audio mixing capabilities to the next level with the Behringer WING Compact 48-Channel 28-Bus Full Stereo Digital Mixing Console. This powerhouse of a console combines a small footprint with immense functionality, making it an ideal choice for both studio and live sound applications. Equipped with 24 Midas PRO preamps and 8 Midas PRO outputs, the WING Compact ensures superior sound quality and dynamic range, akin to the renowned Midas M and PRO series mixers.

Experience unparalleled flexibility with 48 FlexChannels that can be configured as stereo, mono, or M/S, allowing you to tailor your setup without compromising on performance. The console's 16 stereo buses provide an immersive in-ear monitoring experience, while stereo insert effects can be added to any channel with a single click, enhancing your creative possibilities.

The WING Compact's intuitive design includes a 10" touch screen and a 13-fader control surface optimized for fast and precise operation, particularly excelling in monitor mixing scenarios. Its dedicated master and bus section, featuring 4 layers of 16 hotkeys with a color display, offers unprecedented speed and overview, making it easier than ever to manage complex audio setups.

With a comprehensive digital I/O suite, including AES50, USB, AoIP, and StageConnect, the WING Compact matches the full-size WING in connectivity options. StageConnect offers 32-channel bidirectional audio transmission with sub-millisecond latency, while AES50 SuperMAC provides 144 input and output streams with rock-solid performance.

The WING Compact's Source configuration system stores stereo/mono/mid-sides settings, gain, phantom power, and more, directly to every input, allowing for quick setups and on-the-fly adjustments. This feature, combined with the console's ability to handle 382 inputs and 368 outputs, ensures you can adapt to any scenario, whether it's switching between artists, managing multiple play-out destinations, or navigating complex live events.

Enhance your productions with over 80 unique effects and emulations, inspired by legendary hardware such as the Pultec EQ, SSL Bus Compressor, and Neve EQ. The WING Compact's 40-bit internal processing algorithms deliver greater accuracy and expanded dynamic range, doubling the effect engines and insert points compared to the X32.

Record up to 64 channels simultaneously with the pre-installed WING LIVE card, or swap it out for a WING DANTE card for full 64x64 channel Dante networking connectivity. The internal AoIP modules further expand your options, enabling Ethernet-based audio networking.

The Behringer WING Compact is not just a mixing console; it's a comprehensive audio management system that offers total recall of FX parameters, channel settings, and entire shows. With features like CLIP, CHAN, SNIP, and SNAP, you can save and recall configurations with ease, ensuring seamless transitions and precise control over your audio environment. Whether you're in the studio or on stage, the WING Compact is your ultimate tool for achieving world-class sound.

Behringer WING Compact 48-Channel 28-Bus Full Stereo Digital Mixing Console with 13-Fader Control Surface Features

  • 24 Midas PRO mic preamps and 8 outputs provide industry-reference sound quality
  • 13 motorized 100 mm faders with powerful master fader section - and 20 Custom buttons
  • 3 AES50 ports for a total of 144 input and output signals on SuperMac CAT5 connections with ultra-low jitter and 6-sample latency
  • 10.1 inch main display with multi-touch screen and adjustable swivel
  • Unique "Sends on Fader"-Workflow with dedicated color TFT-Display and dedicated hot-keys to 44 Masters - Buses, Mains, Matrices, DCA's
  • Integrated USB Audio/MIDI Interface for 48 audio channels in and out
  • Dual-SD card live recorder/player with up to 64 tracks and markers for identifying song positions
  • Internal AoIP-module can upgrade the Ethernet ports with optional 64 channel audio in and out to Audinate Dante and Waves SoundGrid networks
  • 3 AES50 ports for configurable 144 input and output signals with ultra-low jitter and latency
  • 16 True-stereo effects processing engines, with 80+ world-class algorithms
  • 3 plug-in slots for Gate, Dynamics and EQ included in every channel. All without reducing any additional effect processing headroom
  • 4 main, 8 matrix and 16 aux stereo buses, featuring dual inserts, 8-band parametric EQ's, stereo imager and full dynamics processing, all in a single effect chain
  • 40 Stereo Input Channels with 5 variable plug-in processing slots each
  • 8 Stereo Aux Input Channels with single FX insert slot, expander/limiter and 4-band parametric EQ
  • 8 Mute Groups and 8 DCA's for track grouping and consolidation
  • 2 Ethernet ports with integrated switch for networked remote control and optional AoIP through Waves SoundGrid and Dante
  • Rear panel expansion slot can host optional 64-channel audio interface and networking expansion cards, e.g. Dante, WSG, MADI f
  • StageConnect Host interface for sharing of up to 32 channels in either direction via single XLR connection
  • 2 channel GPIO for controlling almost anything with WING
  • 5-Pin MIDI in and out for control and synchronization with external devices
  • DAW Remote Control compatible with Mackie Control Universal (MCU) and presets for Cubase, Ableton Live, Logic X, Nuendo, ProTools, Reaper, Studio One
  • Offline editing and remote control via WING-CoPilot, WING-Q and WING-Edit Softwares for Desktop and Mobile
  • 19" rack-mountable in 3 positions

Warranty Information

This used item has a FREE 1-year warranty. See details.

Key Features

  • Experience pristine sound quality with Midas PRO preamps on 24 XLR inputs.
  • Command your mix with 48 channels & full stereo, ideal for live sound setups.
  • Craft your signature sound using the console's comprehensive EQ control.
  • Seamlessly record and playback via the 48x48 channel USB audio interface.
  • Enjoy ultra-low noise performance, ensuring clean and professional recordings.
  • Built for durability, this digital mixing console will withstand rigorous touring.
