Mackie 14-Channel Compact Mixer, 3-Band EQ (80 Hz & 2.5 and 12 kHz), 2.5Kohm Mic In Impedance

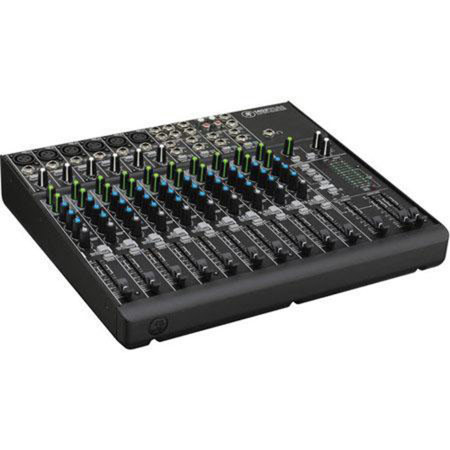

Mackie 14-Channel Compact Mixer: Picture 1 thumbnail
Mackie 14-Channel Compact Mixer: Picture 2 thumbnail
Mackie 14-Channel Compact Mixer: Picture 3 thumbnail
See all Mackie items
Open BoxUsed Condition: Open Box

Used Mackie 14-Channel Compact Mixer, 3-Band EQ (80 Hz & 2.5 and 12 kHz), 2.5Kohm Mic In Impedance

SKU: US1939343 MFR: 1402VLZ4
Be the first to review this item
$360.00
New: $449.99
Used Savings: $89.99 (20%)
OR
$60/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points
See all Used options (1) from $360
Buy NEW from $450

Key Features

  • Achieve pristine sound quality with this Mackie mixer's low-noise circuitry.
  • This 14-channel mixer is perfect for bands needing versatile input options.
  • Shape your sound with precision using the integrated 3-band EQ control.
  • Enjoy superior durability with Mackie's rugged, gig-ready mixer design.
  • Easily connect instruments & mics with the mixer's multiple input channels.
  • Optimize your live sound with this compact mixer's intuitive EQ controls.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 1-year warranty. ?
Free Shipping

See Options

1
Add to List

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Mackie 14-Channel Compact Mixer Specifications

  • Main Mix Noise

    (20 Hz-20 kHz bandwidth, 1/4" Main out, channels 1-6 Trim at unity gain, EQs flat, all channels assigned to main mix, channel 1, 3, 5 panned left, 2, 4, 6 panned right, 3-8 centered.)
    Main mix fader down, channel level faders down: -101 dBu
    Main mix at unity, channel level knobs down: -91 dBu
    Main mix fader at unity, channel level faders at unity: -86 dBu

  • Total Harmonic Distortion (THD)

    Microphone Pre at Insert: <0.0007%

  • Attenuation/Crosstalk

    (1 kHz relative to 0 dBu, 20 Hz-20 kHz bandwidth, line in, 1/4" main out, gain at unity)
    Main mix fader down: -100 dBu
    Channel Alt / Mute switch engaged: -90 dBu
    Channel level knob down: -90 dBu

  • Frequency Response

    Mic input to main output (gain at unity)
    +0, -1 dB, 20 Hz to 50 kHz
    +0, -3 dB, <10 Hz to >100 kHz

  • Equivalent Input Noise (EIN)

    (Mic input to insert send out, max gain)
    150 termination: -128.5 dBu, 20 Hz-20 kHz

  • Common Mode Rejection Ratio (CMRR)

    1 kHz: better than -70 dB

  • Maximum Levels: Mic in

    +22 dBu

  • Maximum Levels: Tape in

    +16 dBu

  • Maximum Levels: All other inputs

    +22 dBu

  • Maximum Levels: Main mix XLR out

    +28 dBu

  • Maximum Levels: All other outputs

    +22 dBu

  • Impedances: Mic in

    2.5Kohm

  • Impedances: Channel insert return

    2.5Kohm

  • Impedances: All other inputs

    10Kohm or greater

  • Impedances: Tape out

    1.1Kohm

  • Impedances: All other outputs

    120ohm

  • EQ

    High Shelving: +/-15 dB at 12 kHz
    Mid Peaking: +/-15 dB at 2.5 kHz
    Low Shelving: +/-15 dB at 80 Hz

  • Power Consumption

    25 watts
    100-120VAC, 50-60Hz

  • Operating Temperature

    0 deg.-40deg.
    32deg.-104deg.F

  • Dimensions (H x W x D)

    12.5 x 14 x 3.2" / 31.75 x 35.56 x 8.13cm

  • Weight

    9.5lbs / 4.3kg

38 Accessories for Mackie 14-Channel Compact Mixer, 3-Band EQ (80 Hz & 2.5 and 12 kHz), 2.5Kohm Mic In Impedance

  • All Accessories (38)
  • Cables & Adapters (33)
  • Headphones (5)
H&A Value Series XLR M to F Professional Microphone Cable - 6'
H&A Value Series XLR M to F Professional Microphone Cable - 6'
$6.49
Recommended
H&A Value Series XLR M to F Professional Microphone Cable - 25' RA
H&A Value Series XLR M to F Professional Microphone Cable - 25' RA
$12.95
Recommended
H&A Value Series XLR M to F Professional Microphone Cable - 25'
H&A Value Series XLR M to F Professional Microphone Cable - 25'
$14.95
Recommended
H&A Value Series XLR M to F Professional Microphone Cable - 15'
H&A Value Series XLR M to F Professional Microphone Cable - 15'
$8.95
Recommended
H&A Value Series XLR M to F Professional Microphone Cable - 10'
H&A Value Series XLR M to F Professional Microphone Cable - 10'
$6.94
Recommended
H&A Platinum Pro Quad 25' XLR M to XLR F Microphone Cable with Rean Connectors
H&A Platinum Pro Quad 25' XLR M to XLR F Microphone Cable with Rean Connectors
$28.95
Recommended
H&A Platinum Pro Quad 15' XLR M to XLR F Microphone Cable with Rean Connectors
H&A Platinum Pro Quad 15' XLR M to XLR F Microphone Cable with Rean Connectors
$24.95
Recommended
H&A Elite Pro 3' XLR M to XLR F Microphone Cable with Rean Connectors
H&A Elite Pro 3' XLR M to XLR F Microphone Cable with Rean Connectors
$3.99
Recommended
H&A Platinum Pro TRS 6' 1/4" Male-Male Interconnect Cable, Rean Gold Connectors
H&A Platinum Pro TRS 6' 1/4" Male-Male Interconnect Cable, Rean Gold Connectors
$8.95
Recommended
H&A PlatPro 10' TRS 1/4" Male - 1/4" Male Interconnect Cable W Rean Connectors
H&A PlatPro 10' TRS 1/4" Male - 1/4" Male Interconnect Cable W Rean Connectors
$9.95
Recommended
H&A Platinum Pro 25'TRS 1/4" Male to 1/4" Male Interconnect Cable
H&A Platinum Pro 25'TRS 1/4" Male to 1/4" Male Interconnect Cable
$15.95
Recommended
H&A Elite Pro 3' 1/4" Male to 1/4" Male Instrument Cable w/ Rean Gold Connectors
H&A Elite Pro 3' 1/4" Male to 1/4" Male Instrument Cable w/ Rean Gold Connectors
$10.95
Recommended

About Mackie 14-Channel Compact Mixer, 3-Band EQ (80 Hz & 2.5 and 12 kHz), 2.5Kohm Mic In Impedance

Mackie 14-Channel Compact Mixer, 3-Band EQ (80 Hz & 2.5 and 12 kHz), 2.5Kohm Mic In Impedance Features

  • 14-Channel mixer featuring signature high-headroom, low-noise design
  • 6 Boutique-Quality Onyx Microphone Preamps: Wide 60 dB gain range/128.5 dB dynamic range/+22 dBu line input handling/Extended frequency response/Distortion under 0.0007% (20 Hz to 50 kHz)
  • Improved RF rejection, suitable for broadcast applications
  • Phantom power for condenser microphones
  • 14 High-headroom line inputs with +4/-10 operation control
  • 3-Band EQ (80 Hz & 2.5 and 12 kHz)
  • 18 dB/octave 75 Hz low-cut filter on microphone input channels
  • Two AUX sends and level, pan and PFL solo on each channel
  • 60mm long-wearing log-taper faders
  • Two stereo returns for connecting FX processor or other stereo source
  • ALT 3/4 stereo bus for added routing flexibility
  • Control room / phones source matrix
  • High-resolution 12-segment stereo meters
  • Sealed rotary controls resist dust and grime
  • Built-like-a-tank rugged steel chassis with powder-coat finish
  • High-visibility, high-contrast controls deliver convenient at-a-glance visual feedback
  • Rack-mountable design using a rack ear kit (sold separately)
  • Multi-voltage power supply for worldwide use
