This item is no longer available.
Review Summary
Vocal Effects: MuMod, Echo & Delay, Reverb, Harmony, Double, Transducer, Rhythmic, HardTune & Correction, Choir, Stutter, Vocoder, Adaptive Tone
Guitar FX:Amp Modeling, Drive, Delay, Reverb, Compression, Resonant Filter, Wah, MuMod (Flange, Chorus, De-tune), Shifter, Rhythmic/Tremolo, Talkbox (part of Vocoder)
250 factory presets
Memory for 500 presets
10 steps per preset
10 footswitches
6 preset-assignable footswitches for enabling/disabling FX blocks
Backing track & FX automation control via footswitches
Detailed editing
Genre and Styles preset categories
Combo Balanced XLR/Balanced TRS 1/4"phone jack
3.08 kOhm
-52 dBu to +7 dBu at 0dBFS
-40 dBu to +19 dBu at 0dBFS
Rg = 150Ohm: -127 dBu
>100 dB at typical Mic Input gain
+48V (on/off via Setup menu)
24 Bit, 128 x oversampling bitstream, 110 dB SNR A-weighted
1/4" phone jack
1MOhm
-2 dBU to 14 dBu at 0 dBFS
>108 dB
24 Bit, 128 x oversampling bitstream, 110 dB SNR A-weighted
Balanced XLR
Balanced: 25 kOhm
16 dBu at 0 dBFS
1/8" stereo mini jack
+2 dBu at 0 dBFS
24 Bit, 128 x oversampling bitstream, 115 dB SNR A-weighted
Balanced: XLR
300/150Ohm
0 dBFS Line Level: +14 dBu; Mic Level: - 2dBu
>109 dB, 20 Hz to 20 kHz
+0/-0.3 dB, 20 Hz to 20 kHz
1/8" Mini stereo jack
1/4" TRS phone jack
Balanced/Unbalanced: 442/221 Ohm
+14 dBu; Mic Level: - 2dBu at 0 dBFS Line Level
>105 dB, 20 Hz to 20 kHz note
24 Bit, 128 x oversampling bitstream, 106 dB SNR A-weighted
1/8" Mini stereo jack, 50 Ohm, +14 dBu max
Buffered Guitar Input
1/4" TRS phone jack
Bal/UnBal: 270/540 Ohms
Direct connection to Monitor input
Balanced XLR
Mains Voltage: 100 to 240 VAC, 50 to 60 Hz (auto-select)
< 14 W
Complies with: EN 55103-1:2009, EN 55103-2:2009, FCC CFR 47 Part 15B and ICES-003:2004 4th Ed
IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA
32 to 122 deg. F / 0 to 50 deg. C
-22 to 167 deg. F / -30 to 75 deg. C
Max. 90 % non-condensing
USB A, Mini-B
In/Out: 5 Pin DIN
1/4" TRS phone jack
using TC-Helicon MP-75 Microphone or Sennheiser e 835 fx mic
Anodized extruded aluminum and steel chassis
Rubberized edit/mix knobs
Recessed rubberized handle
192 x 64 Blue STN LCD, White Back light display
Tri-colored Footswitch Light ring
Capacitive touch edit controls with LED indicators
3 x 13.8 x 8.5" / 7.62 x 35.05 x 21.59cm
5lbs / 2.27kg

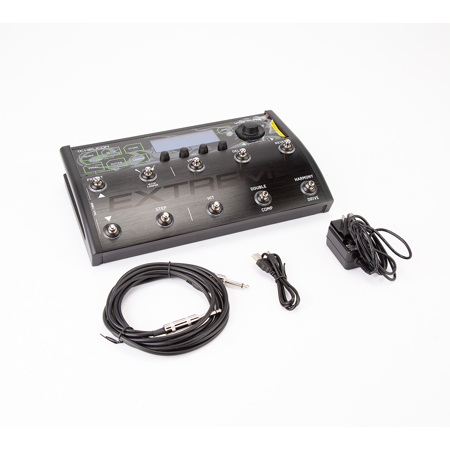

After years of innovation and refinement, the VoiceLive 3 Extreme Vocal Effect Processor (VL3x) emerges as a groundbreaking tool for performers, offering unparalleled FX automation and backing track playback. This state-of-the-art device allows vocalists and guitarists to focus solely on their performance, delivering awe-inspiring vocal effects and rich guitar sounds that run seamlessly by themselves.
From the inception of a song idea to the execution of intricate live arrangements, the VL3x is your trusted companion. It offers a new level of audience connection by allowing you to prepare every sonic nuance of your song - from FX changes to harmonies and loops - ahead of the show. This level of preparation transforms your relationship with the audience, allowing you to deliver over 100 songs with exceptional precision and impact.
The VL3x is designed to streamline your studio-to-stage journey. It begins in rehearsal, where you can load up a backing track - be it drums, bass, or a full band mix. The VL3x captures all your effects changes, syncing them to your track and even recording FX changes that would otherwise be physically impossible using the switches alone.
When you hit the stage, the VL3x continues to work its magic. Simply press "play" and your track plays back with all the effect changes you perfected at home, completely automated for your performance. This leaves you free to connect with your audience and fellow musicians, knowing that your hard work in preparation will shine through in every performance.
The VL3x also offers a powerful 3-phrase looping feature, allowing you to create and store entire songs on-the-fly. It supports up to 100 audio backing tracks for live accompaniment via a standard USB key, and supports MP3 and 16/24 bit WAV import formats. The onboard sequencer records and plays back FX and Step activations live, ensuring your performance is always in sync.
In addition to its performance features, the VL3x also serves as a powerful recording tool. It allows you to capture exactly what the audience hears on a USB key output, making it a fantastic rehearsal tool and a means to create your own "board mix" for your press kit, social media uploads, video footage, or for sale at the end of the show.
The VL3x is equipped with a mind-blowing vocal FX path featuring 11 independent effects blocks, over 180 different pre-programmed styles, and more than 250 factory presets available right out of the box. It also offers an authentic Vocoder with voice-controlled polyphonic synth and robot modes, allowing you to play your voice like an instrument.
The guitar section of the VL3x rivals even the most pristine pedal boards, thanks to legendary effects from TC Electronic like Flashback Delay, Hall of Fame Reverb, Corona Chorus, and Vortex Flanger. It also offers 30 amp emulations that can be customized to your liking, making it an unbeatable piece of guitar road-kit.
In conclusion, the VoiceLive 3 Extreme Vocal Effect Processor is a comprehensive vocal and guitar FX suite that offers unparalleled performance power, recording capabilities, and audience connection. It is the perfect partner for your voice and guitar, providing the impact and presence to always stand out in the mix.
