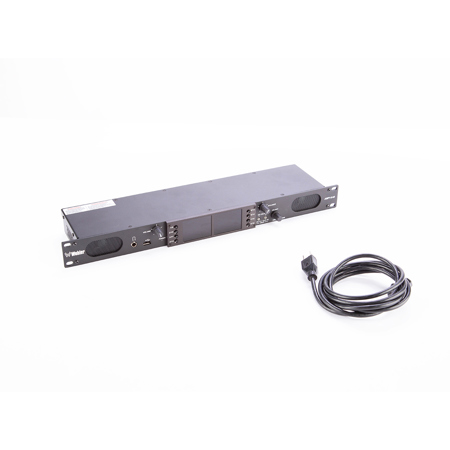

Used Wohler 3G/HD/SD-SDI 8-Channel Audio Monitor with Trim Control, 1RU

SKU: US1941961 MFR: AMP1-8-M
Earn VIP Reward Points

Key Features

  • Fast and intuitive operation for seamless monitoring of SDI audio across multiple channels
  • User-friendly volume and balance controls for precise audio level adjustments
  • Bright 2.4" LED-backlit LCD display for clear visibility of audio levels and phase indications
  • High-quality, durable construction from reputable brand Wohler, known for superior audio equipment
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$125.99

3 Year

$195.99

4 Year

$267.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Wohler 8-Channel Audio Monitor Specifications

  • Signals Monitored

    SDI

  • Input

    2x 3G/HD/SD-SDI Inputs on BNC

  • Output

    2x Loop-through SDI Outputs on BNC
    1x Selected SDI Re-clocked Output on BNC
    1x Balanced stereo analog out on XLR-M (L+R)

  • SDI Input Termination

    75Ohm unbalanced

  • Interface

    External PC control via Ethernet port
    Front panel USB port for preset storage/transfer

  • Level Meters

    8 x 166 on the display

  • Level Metering

    Simultaneous average and PPM

  • Level Meter Scale

    Software Select your Level Meter Scale: AES, VU, Ext. VU, BBC, EBU, Nordic, DIN

  • Level Meter Dynamics

    Simultaneous VU & PPM

  • Level Meter Resolution

    1 dB

  • Display Characteristics

    TFT LCD

  • Display Size

    2.4" (6.0cm)

  • Front Panel LED Display

    2 x 2.4" (6.0cm) LED-backlit LCDs

  • Resolution

    320 x 240

  • Aural Sound Outputs

    Wohler speaker system, headphone, mute speakers

  • Frequency Response

    Acoustic: 150 Hz to 16 kHz (+- 5 dB)
    Analog: 40 Hz to 20 kHz (+- 1dB)

  • Peak Acoustic Output at 2 feet

    90 dB SPL

  • Hum and Noise

    Better than -68 dB below full output

  • Power Output

    RMS Per Side: 6 W
    Peak: 12 W

  • Power

    IEC connector: 100 to 240 VAC +/- 10%, 50/60Hz 60 W; self-contained power supply

  • Rack Height

    1RU

  • Dimensions

    4.25 x 19.00 x 1.75" (108.00 x 483.00 x 44.00mm)

  • Weight

    5.0 lb (2.8kg)

About Wohler 3G/HD/SD-SDI 8-Channel Audio Monitor with Trim Control, 1RU

Experience the advanced functionality and precision control of the Wohler AMP1-8-M, a professional-grade 3G/HD/SD-SDI 8-Channel Audio Monitor with Trim Control, 1RU. Designed for high-demand production applications, this high-quality audio monitor is perfect for both studio and on-location use.

The AMP1-8-M is engineered to deliver fast and intuitive operation, allowing for seamless monitoring of SDI audio across multiple channels. Its unique feature set includes the ability to select and sum any grouping of SDI audio pairs instantaneously, providing you with unparalleled flexibility and control over your audio production.

This durable audio monitor is equipped with user-friendly volume and balance controls, enabling precise level adjustments for optimal audio output. The clear display of audio levels and phase indications are presented on a bright 2.4" LED-backlit LCD display, ensuring easy visibility even in challenging lighting conditions.

With the Wohler AMP1-8-M, you can confidently monitor up to 8 audio channels, making it an indispensable tool for professional recording studios, television production facilities, and other high-end audio environments. Trust in the quality and reliability of Wohler, a reputable brand known for its superior audio equipment, and Adorama, your trusted retailer for top-tier electronics and professional gear.

Wohler 3G/HD/SD-SDI 8-Channel Audio Monitor with Trim Control, 1RU Features

  • Simultaneous level metering of 8 de-embedded audio channels from SDI
  • High resolution metering with 166-segment displays
  • Quick, intuitive push-button selection of any pairs to sum to monitor
  • Monitor through built-in speakers, headphones or analog outputs with optional muting for internal speakers
  • Stereo or mono monitoring
  • Stereo phase indicators
  • Adjustable Volume amd Balance
  • Balanced stereo analog outputs on XLR-Ms. Fixed level or volume/balance controlled
  • Automatic frame rate detection and selection
  • Totally digital system architecture with high fidelity Class D amp
  • Selectable line level or front panel volume control and outputs
  • Shallow chassis depth for easy installation in OB vehicles and consoles
