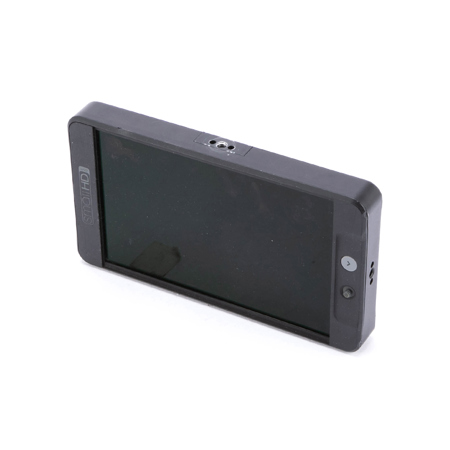

Used SmallHD MON-702 Limited Edition Black 7" Bright Full HD LED On-Camera Monitor

SKU: US1945593 MFR: MON-702BLK
Earn VIP Reward Points

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$103.99

3 Year

$161.99

4 Year

$220.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

SmallHD MON-702 Specifications

Display

Display

Jump to...
  • Panel Type

    LCD

  • Size Diagonal

    7"

  • Resolution

    1920 x 1080

  • Pixel Density (PPI)

    323

  • Aspect Ratio

    16:10 Native

  • Active Area

    7.0"

  • Brightness

    1000 nits

  • Contrast ratio

    1000:1

  • Color Gamut

    85% NTSC (100% Rec 709)

  • Color Depth

    24 Bit (8bpc)

  • Viewing Angle

    Full 179 Degrees

  • Backlight Type

    LED

  • Adjustable Backlight

    Yes

  • Temperature Adaptive Color

    Yes

Input Signal Types/Formats

Jump to...
  • 3G-SDI

    1080p50, 1080p59.94, 1080p60, 1080i100, 1080i119.88, 1080i120

  • HD-SDI

    RGB/YCC 4:2:2 and 4:4:4, 1080p60, 1080i60,1080i59.94,1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25 , 1080pSF29.97, 720p60, 720p59.94, 720p50

  • SD-SDI

    YCC 4:2:2 at 10-bits: 480i29.97, 576i25

  • HDMI

    Supports 8/10/12 bit color, 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25, 1080pSF30, 720p60, 720p59.94 , 720p50

  • Component

    Not Supported

  • Composite

    Not Supported

  • Audio

    HDMI and SDI

Output Signal Types/Formats

Jump to...
  • 3G-SDI

    YCC 4:2:2 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 all at 8 bits

  • HD-SDI

    RGB/YCC 4:2:2 and 4:4:4, 1080p60, 1080i60,1080i59.94,1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25 , 1080pSF29.97, 720p60, 720p59.94, 720p50

  • SD-SDI

    YCC 4:2:2 at 10-bits: 480i29.97, 576i25

  • HDMI

    Supports 8/10/12 bit color, 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25, 1080pSF30, 720p60, 720p59.94 , 720p50

  • Component

    Not Supported

  • Composite

    Not Supported

  • Audio

    Not Supported

Connector type

Jump to...
  • SDI

    1 SDI (in), 1 SDI (out)

  • HDMI

    1 HDMI (in), 1 HDMI (out)

  • Component

    Not Supported

  • Composite

    Not Supported

  • Audio

    1/8in Mini Stereo Headphone

  • Power In

    LP-E6 style / Sony L style

  • Power Out

    LP-E6 style / Sony L style

  • USB

    Micro-USB 5V at 0.5A

Controls

Jump to...
  • Primary Control Interface

    Joystick + "Back" button

  • Record/Capture

    Capture button

  • User Defined Functions

    Uses "Pages" in conjunction with the Joystick control to provide any number of user defined monitoring options

  • RF Wireless Remote / External Control

    Via Remote

Data I/O

Jump to...
  • Storage

    SD Card (full-size)

  • USB

    Factory use and Future user functionality

  • Connector Type

    LP-E6/Sony L style

  • Voltage

    6.0 - 8.4 volts

  • Power Consumption

    11 watts

  • Battery Plate Included

    Canon LP-E6 / Sony NPF

  • Recommended Power Supply

    LP-E6 coupler with built-in 7.2v, 2A regulator

  • Overload Protection

    Yes

  • Smart Battery Compliant

    Yes

  • Battery Types

    LP-E6 and/or Sony L Series

Environmental

Jump to...
  • Compliance

    CE, FCC, IC

  • Operating Temperature

    30 to 90 deg. F (-1 to 32 deg. C)

  • Storage Temperature

    0 to 120 deg. F (-18 to 49 deg. C)

  • Screen Protection

    1mm Acrylic (user replaceable)

  • Mount Points

    (4) 1/4-20 thread points (bottom, back & sides)

Software

Jump to...
  • Pixel Zoom (type)

    2x & 4x with smooth pan via joystick

  • Frame Guides

    Preset Aspect Ratios & Customizable

  • DSLR Scale

    Canon 5DMkii & Canon 7D

  • Custom Scale

    Underscan Only

  • Anamorphic De-Squeeze

    1.33x, 1.5x, 1.66x, 2.0x

  • Image Rotate(Manual/Automatic)

    Automatic or Manual Control

  • Image Flip (Manual/Automatic)

    Automatic or Manual Control

  • Cross Conversion

    Yes

  • Focus Assist (Colors)

    User Adjustable Color Style and Intensity

  • Peaking

    User Adjustable Intensity

  • False Color

    Spectrum, Arri Style and Fully User Customizable

  • Zebra

    Dual - User Configurable

  • Waveform

    Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting

  • Vectorscope

    Yes

  • PIP

    No

  • RGB Parade

    Fully User Customizable

  • Histogram

    Luma & RGB Style

  • Horizon Indicator

    No

  • Image Capture

    With Dedicated Button and Image Gallery

  • Custom LUTS

    Loadable as Looks on Pages or as System wide Color Calibration via the settings menu

  • LUT Creation

    No

  • LUT Downstream

    Applied on Output Preview Page

  • LUT Import

    Via SD Card or USB Storage Device

  • Image Overlay

    Opacity Slider and Blink Setting

  • Blue Only

    No

  • Firmware

    User Upgradable. Current Version: 2.0

  • Audio Meters

    Up to 8 channel

General

Jump to...
  • Height

    4.23" (10.74cm)

  • Width

    7.56" (19.20cm)

  • Depth/Length

    0.95" (2.41cm)

  • Weight

    17 oz (481.94g) (without battery)

About SmallHD MON-702 Limited Edition Black 7" Bright Full HD LED On-Camera Monitor

The SmallHD 702 Bright is the first of a new line of feature rich 7-inch monitors, the 700 Series. With a 1000nits, 1920x1080 LCD, the 702 Bright is pixel perfect for daylight shooting.

More Resolution, Less Reflection
The 702 Bright represents a new breed of daylight viewable displays. Along with its exceptional brightness, the LCD panel features optically bonded glass with anti-reflective coating.

Ruggedly Handsome, Beautifully Designed
Housed in an aircraft grade aluminum unibody, the 702 Bright is both durable and functional. Contributing to its slim physique is an industry first, Sony L Series and Canon LP-E6 battery solution (No battery plate required).

Powerful Processing, Intuitive Interaction
The 702 Bright is built on SmallHD's Page Builder OS. It's the operating system that feels less like firmware and more like a production assistant. Create multiple pages (12 max), populate each with features you wish to use such as scopes, looks or focus assists then switchback and forth with a left-or-right flick of the joystick.
