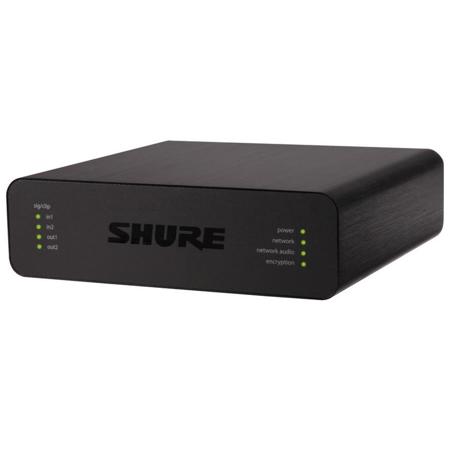

Used Shure ANI22-XLR Mic/Line to Dante Audio Network Interface with XLR Connectors, 2 Input/2 Output

SKU: US1950076 MFR: ANI22-XLR
Earn VIP Reward Points

Key Features

  • Enhance your audio with the Shure ANI22-XLR's pristine, low latency digital audio interface.
  • Connect mics & line-level devices to a Dante network using this 2x2 XLR audio interface.
  • Enjoy flexible gain control & clear sound with adjustable analog gain on your audio inputs.
  • Simplify your setup using Power over Ethernet (PoE), streamlining both power and data.
  • Use the ANI22-XLR's digital signal processing (DSP) for EQ, limiting, and gain adjustments.
  • Achieve superior audio quality with a wide dynamic range for professional recording setups.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 1-year warranty. ?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Shure ANI22-XLR Specifications

  • Inputs (Analog)

    2 x 3-pin XLR connectors

  • Outputs (Analog)

    2 x 3-pin XLR connectors

  • Dante Connection

    1 x RJ45
    Channel Count: 2 inputs, 2 outputs

  • Polarity

    Non-inverting, any input to any output

  • Power Requirements

    Power over Ethernet (PoE), Class 0 (PoE Plus compatible)

  • Power Consumption

    11 W maximum

  • Application Control

    HTML5

  • Operating Temperature Range

    20 to 104 deg. F (-7 to 40 deg. C)

  • Storage Temperature Range

    20 to 165 deg. F (-7 to 74 deg. C)

  • Thermal Dissipation

    Maximum: 12.1 W (41.3 BTU/hr)
    Typical: 9.8 W (33.7 BTU/hr)

  • Frequency Response

    20 Hz to 20 kHz +/-1 dB

  • Dante Audio Flows

    Sampling Rate: 24-bit/48 kHz

  • Latency

    Does not include Dante latency
    Analog to Dante: 0.35 ms
    Dante to Analog: 0.71 ms

  • Analog Gain Range

    51 dB (adjustable in 3 dB steps)

  • Dynamic Range

    113 dB, 20 Hz to 20 kHz, A-weighted, typical

  • Equivalent Input Noise

    20 Hz to 20 kHz, A-weighted, input terminated with 150 Ohms
    Analog Gain Setting = +0 dB, -93 dBV
    Analog Gain Setting = +27 dB, -119 dBV
    Analog Gain Settings = +51 dB, -130 dBV

  • Total Harmonic Distortion (THD)

    <0.05% at 1 kHz, 0 dBV input, 0 dB analog gain

  • Common Mode Rejection Ratio

    >70 dB, 50 Ohms balanced source at 1 kHz

  • Input Impedance

    5 kOhms

  • Output Impedance

    150 Ohms

  • Input Clipping Level

    Analog Gain Setting = +0 dB, +20 dBV
    Analog Gain Setting = +27 dB, -7 dBV
    Analog Gain Setting = +51 dB, -31 dBV

  • Analog Output Levels

    Selectable Line 0 dB
    Aux -20 dB
    Mic -46 dB

  • Digital Signal Processing (DSP)

    Per Channel: Equalizer (4-band Parametric, Dante channels only), Mute, Limiter, Gain (140 dB range)
    System: Channel Summing

  • Networking

    Cat 5e or higher (shielded cable recommended)

  • Dimensions (HxWxD)

    1.6 x 5.5 x 5.0" (4.06 x 13.97 x 12.70cm)

  • Weight

    1.5 lbs (0.68kg)

About Shure ANI22-XLR Mic/Line to Dante Audio Network Interface with XLR Connectors, 2 Input/2 Output

With the ANI22-XLR Mic/Line to Dante Audio Network Interface, integrating professional-grade audio into your Dante network becomes a seamless experience. This robust interface is designed to transmit high-quality audio signals with precision, accommodating up to two line or microphone signals through its XLR connectors. Whether you're routing audio onto the network or extracting it for external use, the ANI22-XLR ensures crystal-clear sound reproduction and reliable performance.

The device is engineered for versatility, compatible with both Microflex Advance and Microflex Wireless systems, making it an ideal choice for a variety of professional audio setups. The ANI22-XLR version specifically features analog audio XLR connectors, providing two inputs and two outputs for balanced audio connectivity that audio professionals trust.

Ease of use is at the forefront of the ANI22-XLR's design. Users can access browser-based remote control, allowing for convenient adjustments and monitoring from any location within the network. This flexibility is essential for live sound applications, installations, and complex audio environments where remote access can significantly streamline workflow.

The ANI22-XLR is not just about connectivity; it's about delivering audio excellence and network efficiency. By leveraging the Dante audio-over-IP protocol, this interface ensures low-latency transmission and simplifies cabling requirements, all while maintaining the high-resolution audio that producers and engineers demand.

In summary, the ANI22-XLR Mic/Line to Dante Audio Network Interface is a powerful tool for audio professionals looking to bridge the gap between analog and digital domains with ease and sophistication. Whether used in broadcast studios, live venues, or corporate settings, the ANI22-XLR stands as a testament to high-fidelity audio and networked convenience.

Shure ANI22-XLR Mic/Line to Dante Audio Network Interface with XLR Connectors, 2 Input/2 Output Features

  • Converts up to 2 mic / line analog signals onto a Dante Network
  • Converts up to 2 Dante digital audio signals to line / mic analog signals
  • Power-over-Ethernet (PoE) eliminates need for outboard power supply
  • Compact form factor is easy to mount without equipment rack

Warranty Information

This used item has a FREE 1-year warranty. See details.

Key Features

  • Enhance your audio with the Shure ANI22-XLR's pristine, low latency digital audio interface.
  • Connect mics & line-level devices to a Dante network using this 2x2 XLR audio interface.
  • Enjoy flexible gain control & clear sound with adjustable analog gain on your audio inputs.
  • Simplify your setup using Power over Ethernet (PoE), streamlining both power and data.
  • Use the ANI22-XLR's digital signal processing (DSP) for EQ, limiting, and gain adjustments.
  • Achieve superior audio quality with a wide dynamic range for professional recording setups.
