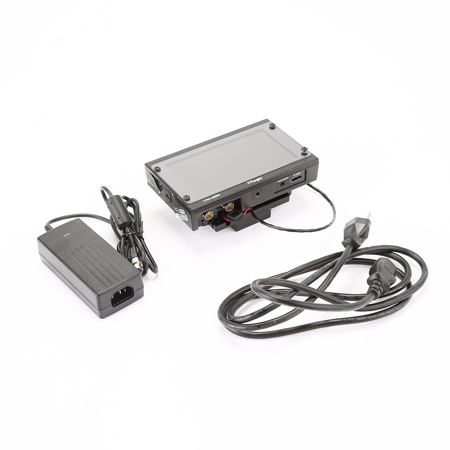

TV Logic VFM-058W 5.5" 1080p Full HD Viewfinder Monitor, 1000:1 Contrast Ratio, 450cd/m2 Luminance, HDMI
TV Logic VFM-058W: Picture 1 thumbnail
TV Logic VFM-058W: Picture 2 thumbnail
TV Logic VFM-058W: Picture 3 thumbnail
TV Logic VFM-058W: Picture 4 thumbnail
TV Logic VFM-058W: Picture 5 thumbnail
TV Logic VFM-058W: Picture 6 thumbnail
TV Logic VFM-058W: Picture 7 thumbnail
See all TV Logic items
Used Condition: Well Used

Used TV Logic VFM-058W 5.5" 1080p Full HD Viewfinder Monitor, 1000:1 Contrast Ratio, 450cd/m2 Luminance, HDMI

SKU: US1953492 MFR: VFM-058W
Be the first to review this item
$497.00
OR
$83/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points
See all Used options (2) from $497

Key Features

  • Temperature Adaptive Color
  • Various Scan modes
  • Low Power Consumption
  • Time Code Display
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

1
Add to List

Protect your gear with Adorama Protect.* Learn more

1 Year

$44.99

2 Year

$67.99

3 Year

$111.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

TV Logic VFM-058W Specifications

  • Size

    5.5" (13.97cm)

  • Resolution

    1920x1080 (16:9)

  • Pixel Pitch

    0.063mm

  • Color Depth

    16.7M Color (True 8bit)

  • Viewing Angle (Typ.)

    160deg.(H) / 160deg.(V)

  • Luminance (Max.)

    450cd/m2 (Typ.)

  • Contrast Ratio

    1000:1

  • Display Area

    120.96(H) x 68.04(V) mm

  • Input: 1 x BNC

    SDI Input

  • Input: 1 x HDMI

    HDMI(1.2Ver) Input

  • Output: 1 x BNC

    HDMI to SDI conversion output

  • Output: 1 x HDMI

    HDMI Output

  • Input Signal: 3G-SDI

    2.970Gbps

  • Input Signal: HD-SDI

    1.485Gbps

  • Input Signal: SD-SDI

    270Mbps

  • Input Signal: HDMI

    1080p(24/25/30/50/60)/1080i(50/60)/720p(50/60)/480i(60)/480p(60)/576i(50)/576p(50)&VESA/IBM Mode

  • SDI Input Signal Format: SMPTE-425M-A/B

    1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)

  • SDI Input Signal Format: SMPTE-274M

    1080i (60 / 59.94 / 50)
    1080p (30/29.97/25/24/24sF/23.98/23.98sF)

  • SDI Input Signal Format: SMPTE-296M

    720p (60/59.94/50)

  • SDI Input Signal Format: SMPTE-260M

    1035i (60/59.94)

  • SDI Input Signal Format: SMPTE-125M

    480i (59.94)

  • SDI Input Signal Format: ITU-R BT.656

    576i (50)

  • Audio IN

    Embedded Audio / Analog stereo (Phone Jack)

  • Audio OUT

    Analog stereo (Phone Jack) / Internal Speaker (Mono)

  • Power

    DC 6.8 - 12V

  • Power Consumption (Approx.)

    9.6W (Typ.)

  • Operating Temperature

    0deg.C to 45deg.C (32deg.F to 113deg.F )

  • Storage Temperature

    -20deg.C to 60deg.C (-4deg.F to 140deg.F )

  • Dimension

    6.14 x 3.85 x 1.31" / 155.95 x 97.79 x 33.27mm

About TV Logic VFM-058W 5.5" 1080p Full HD Viewfinder Monitor, 1000:1 Contrast Ratio, 450cd/m2 Luminance, HDMI

The TVLogic VFM-058W 5.5" 1080p Full HD Viewfinder Monitor features innovative and ergonomic design that makes you comfortable in the shooting environment and its light solid magnesium case achieves the highest efficiency of ventilation. The VFM-058W supports multi-formats including 3G/HD/SD-SDI and HDMI that offers a wide application range from DSLR cameras to professional camcorders for broadcasting and movie shooting.

TV Logic VFM-058W 5.5" 1080p Full HD Viewfinder Monitor, 1000:1 Contrast Ratio, 450cd/m2 Luminance, HDMI Features

  • Supports TVLogic Color Calibration Utility for proper color alignment
  • Temperature Adaptive Color
  • Various Scan modes
  • Low Power Consumption
  • Time Code Display

Warranty Information

This used item has a FREE 180-day warranty. See details.
