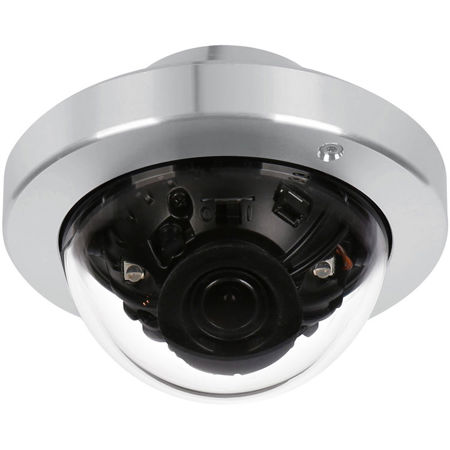

Used Digital Watchdog Star-Light DWC-MC753WTIR 2MP Analog HD Camera, P-Iris, 3.6mm Fixed Lens, Double Shutter Wide Dynamic Range

SKU: US977712 MFR: DWC-MC753WTIR
$23.00
Earn VIP Reward Points

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$1.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Digital Watchdog DWC-MC753WTIR Specifications

  • Image Sensor

    Panasonic 1/3" CMOS

  • Active Pixels

    1944 (H) x 1092 (V)

  • Scanning System

    Progressive Scan

  • Frequency

    60Hz / 50Hz

  • Signal Technology

    2.0 Megapixel AHD

  • Synchronization

    Internal

  • Resolution

    1920x1080 (1080p)

  • Minimum Scene Illumination

    F2.0 (30IRE): 0.7Lux [Color]
    F2.0 (30IRE): 0 Lux [B&W]

  • S/N Ratio

    55dB

  • Video Output

    AHD 1080p30fps / 720p60fps / 720p30fps

  • Focal Length

    3.6mm

  • Lens Type

    Fixed Lens

  • IR Distance

    50' / 15.24m

  • Shutter Speed

    1/30(25) - 1/30,000

  • Backlight

    Off / On

  • STAR-LIGHT (Sense-up)

    Off, x2 - x32

  • Wide Dynamic Range (WDR)

    Off / On

  • Digital Noise Reduction

    Off, Low, Middle, High

  • White Balance

    Auto / Auto-Ex / Preset / Manual

  • Day and Night

    Day / Night / Auto

  • Mirror / Flip

    Yes

  • Auto Gain Control

    Max 60dB

  • Motion Detection

    Yes

  • Privacy Zones

    16 Privacy Zones

  • Sharpness

    0 - 10

  • Gamma

    0.45 - 0.75

  • Digital Zoom

    'x1.0 - x16.0

  • Power Requirements

    DC12V

  • Power Consumption

    DC12V: 2.15W, 179mA, LED On: 3.64W, 3.3mA

  • Operating Temperature

    -20 to 50 deg. C / -4 to 122 deg. F

  • Operating Humidity

    Less than 90% (Non-Condensing)

  • Other Certifications

    FCC, CE, ROHS

  • Material

    Aluminum

  • Dimensions

    80 x 58.5mm / 3.15 x 2.30"

  • Weight

    181.4g / 6.40oz

About Digital Watchdog Star-Light DWC-MC753WTIR 2MP Analog HD Camera, P-Iris, 3.6mm Fixed Lens, Double Shutter Wide Dynamic Range

Groundbreaking STAR-LIGHT AHD High Definition Cameras use existing coaxial cables to transmit crystal-clear detailed 1080p images. The cameras offer 2.1MP resolution along with powerful features such as P-Iris Lens, Double Shutter Wide Dynamic Range (WDR) and True Day/Night with Mechanical IR Cut Filter. The STAR-LIGHT AHD cameras are engineered to work with VMAX AHD DVRs, offering an easy upgrade from analog to high definition surveillance using existing infrastructure for a cost-effective, high resolution surveillance solution.

• Analog High Definition (AHD) HD over Coax Technology
• STAR-LIGHT Super Low Light Technology
• Panasonic 1/3" CMOS Sensor
• 1080p Resolution at 30fps
• Wide Dynamic Range (WDR)
• Fixed Lens 3.6mm
• Smart IR with Intelligent Camera Sync. 100approx.150ft Range
• Smart DNR 3D Digital Noise Reduction
• Highlight Masking Exposure (HME)
• True Day/Night with Mechanical IR Cut Filter
• Secondary Video-BNC Output
• Easy Icon Driven OSD Menu with Built-in Joystick
• Programmable Privacy Zones
• Auto Gain Control (AGC)
• Backlight Compensation (BLC)
• Dynamic Range Compressor (DRC) Reveals Low Light Detail
• Auto White Balance (AWB)
• IP66 Certified (Weather Resistant)
• 5 Year Warranty

Analog High Definition (AHD)
AHD Technology delivers clear HD video at 1920 x 1080 Resolution.

Warranty Information

This used item has a FREE 90-day warranty. See details.
