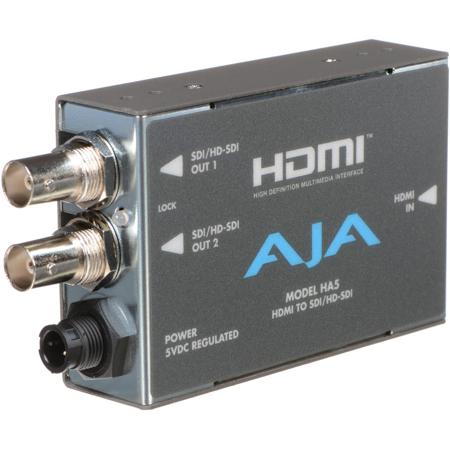

AJA HA5 HDMI to SDI/HD-SDI Video and Audio Converter
AJA HA5: Picture 1 thumbnail
AJA HA5: Picture 2 thumbnail

Picture does not represent the actual item

See all AJA items
Used Condition: Excellent Plus

Used AJA HA5 HDMI to SDI/HD-SDI Video and Audio Converter

SKU: US1961886 MFR: HA5
Be the first to review this item
$162.00
Earn VIP Reward Points
See all Used options (3) from $110

What`s in the box:

  • AJA HA5 HDMI to SDI/HD-SDI Video and Audio Converter
  • HDMI Cable
  • DWP-U-R1 Power Supply
See more

Key Features

  • HDMI to SDI/HD-SDI
  • Full 10-bit Conversion
  • Full HDMI support including embedded audio
  • Lock LED shows type of input source
  • HDMI cable supplied
  • Uses 5V power (DWP-U-R1 power supply)
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

1
Add to List

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

AJA HA5 Specifications

  • Input

    HDMI with embedded audio

  • Input Formats

    525i, 625i
    1080p23.98/24/25/29.97/30
    1080i 50/59.94/60
    720p 50/59.94/60

  • Outputs

    SMPTE-259/292/296, SDI/HD-SDI, 2 x BNC

  • HDCP

    Content not supported

  • Power

    +5 VDC regulated, 4 watts, DWP-U-R1 Power Supply

  • Size

    4.6" x 2.4" x 1" (117 x 61 x 25 MM.)

  • Warranty

    AJA 5 years parts & labor warranty

Related Articles & Videos

Digital SLR Video Tip: Using A Field Monitor

Digital SLR Video Tip: Using A Field Monitor

AdoramaTV presents DSLR Video Skills with Rich Harrington. In this episode, Rich explores the benefits of using a field monitor to clearly see what your camera is shooting.

Read more

4 Accessories for AJA HA5 HDMI to SDI/HD-SDI Video and Audio Converter

  • All Accessories (4)
  • Batteries & Power Supply (1)
  • Cables & Adapters (3)
Core SWX XP-AJA-5 Powertap to AJA MiniConverter Cable
Core SWX XP-AJA-5 Powertap to AJA MiniConverter Cable
$152.00
Recommended
Canare 15' L-3CFW RG59 HD-SDI Coaxial Cable with Male BNC Connectors, Black
Canare 15' L-3CFW RG59 HD-SDI Coaxial Cable with Male BNC Connectors, Black
$26.95
Canare 25' L-3CFW RG59 HD-SDI Coaxial Cable with Male BNC Connectors, Black
Canare 25' L-3CFW RG59 HD-SDI Coaxial Cable with Male BNC Connectors, Black
$36.95
Canare 35' L-3CFW RG59 HD-SDI Coaxial Cable with Male BNC Connectors, Black
Canare 35' L-3CFW RG59 HD-SDI Coaxial Cable with Male BNC Connectors, Black
$38.95

About AJA HA5 HDMI to SDI/HD-SDI Video and Audio Converter

The AJA HA5 converts HDMI to SDI or HD-SDI. Up to eight channels of HDMI audio are embedded into the SDI/HD-SDI output allowing a convenient single cable audio/video connection. The HA5 provides two SDI/HD-SDI outputs and supports long HDMI cables on the input. The HA5 is useful for connecting HDMI cameras to SDI/HD-SDI equipment.

AJA HA5 HDMI to SDI/HD-SDI Video and Audio Converter Features

  • HDMI to SDI/HD-SDI
  • Full 10-bit Conversion
  • Full HDMI support including embedded audio
  • Equalized HDMI input supports long HDMI cables up to 40m
  • PLL clock filtering for low jitter SDI/HD-SDI outputs
  • Lock LED shows type of input source: SD (green) or HD (red)
  • HDMI cable supplied
  • Uses 5V power (DWP-U-R1 power supply)

Warranty Information

This used item has a FREE 180-day warranty. See details.

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • HDMI to SDI/HD-SDI
  • Full 10-bit Conversion
  • Full HDMI support including embedded audio
  • Lock LED shows type of input source
  • HDMI cable supplied
  • Uses 5V power (DWP-U-R1 power supply)
