AJA HD10A HDTV 10-Bit Analog to Digital Converter - SKU#1922867

Picture does not represent the actual item

See all AJA items

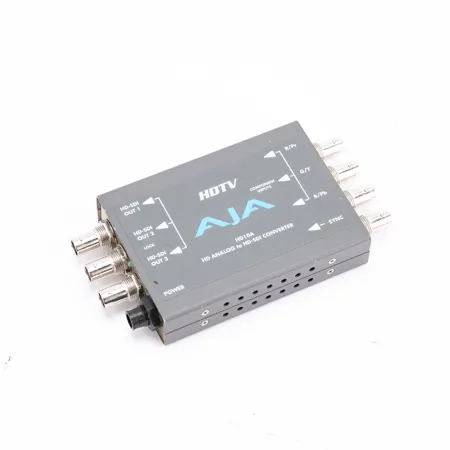

Used AJA HD10A HDTV 10-Bit Analog to Digital Converter

SKU: US1922867
Be the first to review this item

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
AJA DRM 2RU Mini-Converter Rackmount Frame
undefined undefined: Picture 1 regular
AJA OG-FIDO-2T openGear 2-Channel 3G-SDI to Single Mode LC Fiber Transmitter, DashBoard Support
undefined undefined: Picture 1 regular
AJA FiDO-2R-MM 2-Channel Multi-Mode LC Fiber to 3G-SDI Receiver
undefined undefined: Picture 1 regular
AJA FiDO-2T-MM 2-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

AJA HD10A Specifications

  • Component Inputs

    YPbPr, RGB (SMPTE-274), 3 BNCs

  • External Sync Input (optional)

    If used, supplies Sync; if not used Sync is generated internally

  • HD Serial Outputs

    HD-SDI, SMPTE-292/296, 3 BNCs

  • Output Formats

    SMPTE-292
    1080i 50/59.94/60 Hz
    1080p sf 23.98/24
    1035i 50/59.94/60 Hz
    720p 23.98/24/29.97/30/59.94/60 Hz

  • Frequency Response

    +/- .5dB to 30MHz (Y)
    +/- .25dB to 15MHz (C)

  • Power(AJA power supply model DWP)

    5v DC regulated, 4.5 watt

  • Size

    5.8" x 3.1" x l"(147 x 79 x 25mm)

  • Warranty

    AJA 5 years parts & labor warranty

About AJA HD10A HDTV 10-Bit Analog to Digital Converter - SKU#1922867

The AJA HD10A is a miniature, high-quality, 10-bit analog to digital converter for HDTV. A companion to the popular HD10C D/A converter, the HD10A can add an HD-SDI output to cameras, computers with HD RGB graphics, VTRs, or other analog-only HD equipment. The HD10A accepts HD YPbPr or RGB analog and outputs three duplicate HD-SDI signals. Works in 1080i, 1035i, 1080psf and 720p with internal or external sync (tri-level).

AJA HD10A HDTV 10-Bit Analog to Digital Converter - SKU#1922867 Features

  • High-Quality 10-bit HDTV A/D Conversion
  • Full Bandwidth Component HD RGB or YPbPr Input
  • Three HD-SDI Outputs
  • Multi-Standard
  • Internal or External Sync
  • Optional 12V Power
  • External DIP switch user interface for configuration
  • Bi-level sync capable (internal jumper)

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • AJA HDTV 10-Bit Analog to Digital Converter
  • Item Note: Will Not Power On; Missing DWP-U-R1 Power Supply; May Have Additional Issues. Cosmetic Condition is Well Used. SOLD AS-IS; FOR PARTS ONLY; FINAL SALE. **
