AJA HD10MD3 SDI to Standard Definition SDI and Analog Component Composit Down Converter - PLEASE NOTE: POWER SUPPLY SOLD SEPARATELY

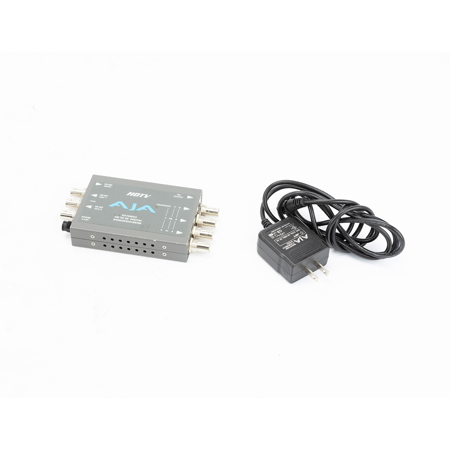

AJA HD10MD3: Picture 1 thumbnail
AJA HD10MD3: Picture 2 thumbnail
See all AJA items
ClearanceUsed Condition: Excellent

Used AJA HD10MD3 SDI to Standard Definition SDI and Analog Component Composit Down Converter - PLEASE NOTE: POWER SUPPLY SOLD SEPARATELY

SKU: US1674151 MFR: HD10MD3
Be the first to review this item
$62.00
Earn VIP Reward Points
See all Used options (2) from $13

What`s in the box:

  • AJA HD10MD3 HD to SD-SDI & Analog Downconverter
See more

Key Features

  • Broadcast-Quality HD to SD down conversion
  • Multi-Standard
  • Dual-rate HD-SDI/SDI input
  • HD-SDI/SDI outputs
  • HD-SDI input: SMPTE 292/296 HD-SDI digital video
  • HD-SDI outputs: Equalized & buffered copy of input
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Calculate Shipping

See Options

1
Add to List

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

AJA HD10MD3 Specifications

  • Formats

    1080i 50/59.94/60Hz
    1080p/psf 23.98/24/25/29.97/30 Hz
    720p 50/59.94/60Hz(Automatic Configuration)

  • Inputs

    HD-SDI or SDI SMPTE 259/292/296, 10-bit, BNC

  • Outputs

    SDI, SMPTE 259M, 10-bit, BNC
    YPbPr - SMPTE, EBU-N10, Betacam
    RGB, NTSC, PAL, YC (S-Video), 10-bit
    3 x BNC

  • Down Conversion

    Multi-point interpolation, 10-bit processing
    3:2 conversion for 23.98/24p/psf inputs

  • Frequency Response

    Y +0, -.5db to 30 MHz
    C +/- .25db to 15 MHz

  • User Controls

    External Dipswitch
    Output Video Format
    4:3/16:9 Monitor Select
    Letterbox/Crop
    Pedestal (Output)
    4:3 Safe-Zone Graticule Overlay

  • Power

    5.8" x 3.1" x 1 (147 x 79 x 25mm)

  • Size

    5-18V, 5 watts. Requires power supply.

  • Warranty

    AJA 5 years parts & labor warranty

About AJA HD10MD3 SDI to Standard Definition SDI and Analog Component Composit Down Converter - PLEASE NOTE: POWER SUPPLY SOLD SEPARATELY

The AJA HD10MD3 is a miniature digital down converter for converting HD-SDI video to standard definition SDI and analog component/composite video. The HD10MD3 uses a full 10-bit data path and multi-point interpolation to produce broadcast quality down converted video. In addition.

The HD10MD3 converts either 1080p24 or 1080p24sf to 59.94 Hz output video using the standard 3:2 pulldown technique. The output can be formatted for either 4:3 or 16:9 standard definition monitors. Four-channel input embedded HD-SDI audio is passed to the SDI output.

AJA HD10MD3 SDI to Standard Definition SDI and Analog Component Composit Down Converter - PLEASE NOTE: POWER SUPPLY SOLD SEPARATELY Features

  • Broadcast-Quality HD to SD down conversion
  • Multi-Standard
  • Dual-rate HD-SDI/SDI input
  • HD-SDI/SDI outputs
  • HD-SDI input: SMPTE 292/296 HD-SDI digital video
  • HD-SDI outputs: Equalized and buffered copy of input
  • SDI output: SMPTE 259 SDI digital video
  • Analog outputs: Component or Composite video (10 bit)
  • Input formats: 1080i 50, 59.94, 60 Hz -1080psf: 23.98, 24, 25, 29.97, 30 - 1080p: 23.9B, 24, 25, 29.97, 30 - 720p: 50, 59.94, 60 Hz
  • External Dipswitch Configuration
  • Power: 5-18V unregulated
