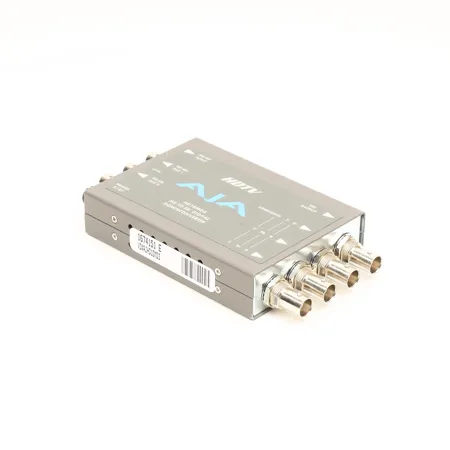

AJA HD10MD3 SDI to Standard Definition SDI and Analog Composit Down Corverter

Picture does not represent the actual item

See all AJA items

Used AJA HD10MD3 SDI to Standard Definition SDI and Analog Component Composit Down Converter - PLEASE NOTE: POWER SUPPLY SOLD SEPARATELY

SKU: US1674151
Be the first to review this item

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
Used AJA HD10MD3 SDI to Standard Definition SDI and Analog Component Composit Down Converter - PLEASE NOTE: POWER SUPPLY SOLD SEPARATELY
undefined undefined: Picture 1 regular
AJA DRM 2RU Mini-Converter Rackmount Frame
undefined undefined: Picture 1 regular
AJA OG-3G-AMD openGear 3G-SDI 8-Channel 24-bit AES Embedder/Disembedder, DashBoard Support
undefined undefined: Picture 1 regular
AJA OG-FiDO-TR-12G OpenGear 12G-SDI/LC Single Mode LC Fiber Transceiver
undefined undefined: Picture 1 regular
AJA FIBERSC-1-TX Single SC 3G Fiber TX SFP
undefined undefined: Picture 1 regular
AJA OG-3GDA-2X4 openGear 2x4 or 1x8 3G-SDI Reclocking DA, DashBoard Support
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

AJA HD10MD3 Specifications

  • Formats

    1080i 50/59.94/60Hz
    1080p/psf 23.98/24/25/29.97/30 Hz
    720p 50/59.94/60Hz(Automatic Configuration)

  • Inputs

    HD-SDI or SDI SMPTE 259/292/296, 10-bit, BNC

  • Outputs

    SDI, SMPTE 259M, 10-bit, BNC
    YPbPr - SMPTE, EBU-N10, Betacam
    RGB, NTSC, PAL, YC (S-Video), 10-bit
    3 x BNC

  • Down Conversion

    Multi-point interpolation, 10-bit processing
    3:2 conversion for 23.98/24p/psf inputs

  • Frequency Response

    Y +0, -.5db to 30 MHz
    C +/- .25db to 15 MHz

  • User Controls

    External Dipswitch
    Output Video Format
    4:3/16:9 Monitor Select
    Letterbox/Crop
    Pedestal (Output)
    4:3 Safe-Zone Graticule Overlay

  • Power

    5.8" x 3.1" x 1 (147 x 79 x 25mm)

  • Size

    5-18V, 5 watts. Requires power supply.

  • Warranty

    AJA 5 years parts & labor warranty

About AJA HD10MD3 SDI to Standard Definition SDI and Analog Composit Down Corverter

The AJA HD10MD3 is a miniature digital down converter for converting HD-SDI video to standard definition SDI and analog component/composite video. The HD10MD3 uses a full 10-bit data path and multi-point interpolation to produce broadcast quality down converted video. In addition.

The HD10MD3 converts either 1080p24 or 1080p24sf to 59.94 Hz output video using the standard 3:2 pulldown technique. The output can be formatted for either 4:3 or 16:9 standard definition monitors. Four-channel input embedded HD-SDI audio is passed to the SDI output.

AJA HD10MD3 SDI to Standard Definition SDI and Analog Composit Down Corverter Features

  • Broadcast-Quality HD to SD down conversion
  • Multi-Standard
  • Dual-rate HD-SDI/SDI input
  • HD-SDI/SDI outputs
  • HD-SDI input: SMPTE 292/296 HD-SDI digital video
  • HD-SDI outputs: Equalized and buffered copy of input
  • SDI output: SMPTE 259 SDI digital video
  • Analog outputs: Component or Composite video (10 bit)
  • Input formats: 1080i 50, 59.94, 60 Hz -1080psf: 23.98, 24, 25, 29.97, 30 - 1080p: 23.9B, 24, 25, 29.97, 30 - 720p: 50, 59.94, 60 Hz
  • External Dipswitch Configuration
  • Power: 5-18V unregulated

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • AJA HD10MD3 HD to SD-SDI & Analog Downconverter
  • Item Note: Missing Power Supply
