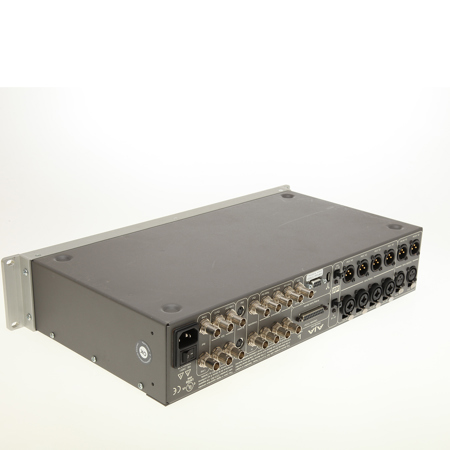

AJA IO 10-bit SDI Analog External Video Capture Card External Breakout Box

Picture does not represent the actual item
See what's in the box

See all AJA items

Used AJA IO 10-bit SDI Analog External Video Capture Card External Breakout Box

SKU: US1342809
Be the first to review this item

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
Nila Zaila Gels CTB Set
undefined undefined: Picture 1 regular
Used Ianiro Laniro IANILED 54 System Medium FL
undefined undefined: Picture 1 regular
Used Kinefinity KineKit-Terra
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Specification about this item

  • Type

    External breakout box video editing device

  • Compatible with

    Apple Final Cut Pro

  • Video System

    NTSC, PAL

  • Video Formats

    Uncompressed 10-bit NTSC and PAL

  • Input

    10 bit A/D, 2x oversampling

  • Composite/S-Video

    3 line adaptive comb filter decoding

  • Frequency Response

    +/- .25 db to 5 MHz Y, +/- .25 db to 1 MHz C

  • Pulse Response

    .5% 2T

  • Diff Phase

    < 1.5%

  • Diff Gain

    < 1.5%

  • Component

    SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB

  • Frequency Response

    +/- .25 db to 5.5 MHz Y, +/- .25 db to 2.5 MHz C

  • Pulse Response

    .5% 2T

  • Y/C Delay Inequity

    <2 ns

  • Output

    12 bit D/A, 8x oversampling

  • Composite/S-Video Frequency Response

    +/- .2 db to 5 MHz Y, +/- .2 db to 1 MHz C

  • Pulse Response

    .5% 2T

  • Diff Phase

    < 1%

  • Diff Gain

    < 1%

  • Component

    SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB

  • Frequency Response

    +/- .2 db to 5.5 MHz Y, +/- .2 db to 2.5 MHz C

  • Pulse Response

    .5% 2T

  • Y/C Delay Inequity

    <2 ns

  • Audio Formats

    Up to 24-bit, 48 kHz, 4-channel analog

  • Host Connection

    6-pin FireWire 400Mb/s

  • Input/Output Connectors: Video Composite

    2 x BNC (1 x input, 1 x output)

  • S-Video

    2 x 4-pin Din (1 x input, 1 x output)

  • Component

    6 x BNC (1 x input, 1 x output)2 x BNC (1 x input, 1 x output)

  • Audio XLR

    4 x Right/Left (4 x input, 4 x output)

  • Control RS-422

    Sony 9 pin protocol

  • Timecode

    Via RS-422

  • Genlock

    2 x BNC (Reference Video) (looping)

  • Real-Time Output

    Analog (composite, S-Video, component)

  • Real-Time Layers

    Through Final Cut Pro

  • Hardware Real-Time Effects

    None

  • WYSIWYG Support

    Final Cut Pro

  • Agency Certifications

    UL, FCC Class A, CE

  • System Req: Minimum Processor/Chipset

    Dual G4/800 MHz, or Single G4/933 MHz

  • RAM

    256MB

  • OS

    10.2.5

  • Software

    Final Cut Pro

  • Storage/Hard Drives

    Disk Array with a consistent 50 MB/s transfer rate

  • Recommended: Processor/Chipset

    Dual G5

  • RAM

    512MB

  • OS

    10:3

  • Software

    Final Cut Pro

  • Storage/Hard Drives

    Disk Array with a consistent 50 MB/s transfer rate

  • Power Requirements: Voltage

    100VAC to 240VAC, 50/60Hz

  • Power Requirements: Consumption

    10 Watts

  • Environmental Req: Operating Temperature

    50 to 95 Deg F (10 to 35 Deg C)

  • Environmental Req: Storage Temperature

    -40� to 140� F (-40� to 60� C)

  • Dimensions (W x H x D)

    8.5" x 10.75" x 1.75" (21.59 x 27.30 x 4.445 cm) - 1RU

  • Weight

    4 lbs (1.814 kg)

About AJA IO 10-bit SDI Analog External Video Capture Card External Breakout Box

Io offers Final Cut Pro users unsurpassed 10-bit uncompressed video and multi-channel audio. With Io, you can configure a Mac Pro, MacBook Pro, or Power Mac as a professional editing suite, corporate/industrial video center, or high-powered desktop video setup - and just about anything in between.

Both analog and digital sources are offered, allowing connection to just about every kind of video/audio peripheral from the most current digital decks to old legacy devices. It does this with unique simplicity, using a single FireWire connection between Io and the Mac - while serving simultaneous realtime connection for all audio and video sources.

How does Io transfer uncompressed video over FireWire? It efficiently uses the IEEE 1394a 400Mb/s FireWire port on the Mac for all data transfer - since uncompressed is 270Mb/s (with filler data included), FireWire handily carries the bandwidth.

AJA IO 10-bit SDI Analog External Video Capture Card External Breakout Box Features

  • RS-422 Control Port (Sony), 9-pin D, for machine control
  • 10-bit uncompressed SDI with embedded audio I/O
  • Analog (10-bit A/D and D/A) video inputs/outputs: S-video I/O, Composite NTSC/PAL video I/O, Component YPbPr/RGB video I/O, Genlock/Reference video (looping)
  • 24-bit digital/optical/analog multi-ch audio: 4-ch AES/EBU audio I/O, 4-ch balanced/unbalanced analog audio In connectors support XLR or TRS-type connections, 4-ch balanced analog audio Out connectors (XLR), 8-ch optical audio I/O, 8-channel balanced audio monitor Out, 8-ch embedded audio over SDI
  • Audio word clock connector (BNC) for audio synchronization
  • Front panel status indicators: Power On/Off, FireWire (active/inactive), Ref (Genlock), NTSC or PAL
  • Front panel mode indicators: Input/Output
  • Front panel video/audio input source indicators: Video: Present, SDI, Component, Composite and S-video, Audio: Present, SDI, ADAT, AES/EBU and Analog

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Power Cord
  • Item Note: Has not been fully tested
