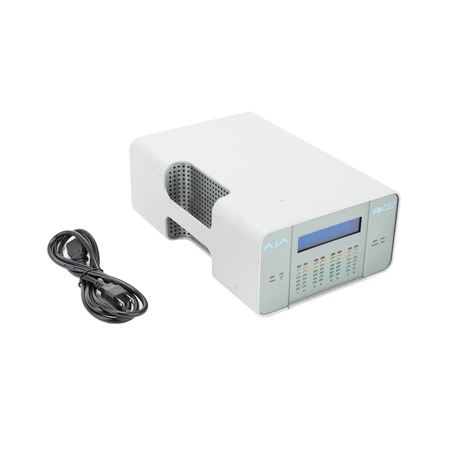

AJA Video IoHD Converter FireWire-800 Analog/Digital Capture Device
See all AJA items
Used Condition: Well Used

Used AJA Video IoHD Converter FireWire-800 Analog/Digital Capture Device

SKU: US2061268 MFR: IOHD
Be the first to review this item
$102.00
Earn VIP Reward Points
See 1 Used options for $102

What`s in the box:

  • AJA IoHD FireWire-800 Analog/Digital Capture Device
  • AC Power Adapter
See more

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

1
Add to List

Save 5% Every Day† with the Adorama Edge Card. Learn More

edge card

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

AJA FireWire-800 Specifications

  • Type

    External FireWire-800 Capture Device

  • Compatible with

    Final Cut Studio 2, Adobe After Effects, Autodesk Combustion

  • Video System

    NTSC, NTSCJ, PAL

  • Video Formats

    SD, HD

  • Audio Formats

    SDI Embedded, AES, HDMI Stereo, 24-bit Balanced

  • Host Connection

    FireWire-800

  • Input Connectors

    2x BNC for SDI
    3x BNC for Component
    1x S-Video
    1x BNC for CVNS/Composite
    1x HDMI
    4x BNC for AES
    4x XLR for Balanced Audio
    1x BNC for Genlock
    1x BNC for LTC

  • Output Connectors

    2x BNC for SDI
    3x BNC for Component
    1x S-Video
    1x BNC for CVNS/Composite
    1x HDMI
    4x BNC for AES
    4x XLR for Balanced Audio
    2x RCA for Unbalanced Audio Monitoring
    1x BNC for Genlock
    1x BNC for LTC

  • Control

    1x RS-422 for Deck Control
    1x 9-Pin FireWire-800 for Host Connection

  • Real-Time Output

    Yes

  • System Requirements Computer

    Mac with FireWire-800

  • System Requirements Software

    Final Cut Studio 2

  • Dimensions (WxHxD)

    8.2 x 4.8 x 12" (20.8 x 12.2 x 30.5 cm)

About AJA Video IoHD Converter FireWire-800 Analog/Digital Capture Device

The AJA IoHD Media Converter FireWire-800 Analog/Digital Capture Device is an external video capture device that is designed for use with Apple's Final Cut Studio 2 editing suite. The device connects to a computer via FireWire-800. It features a portable form factor with handle that makes it ideally suited for field editing of HD footage using a MacBook Pro.

The IoHD has input and output support for HDMI, SD-SDI, HD-SDI, composite, component and S-Video signals. It supports up to eight channels of embedded SDI audio and also features connections for AES/EBU 8-channel unbalanced audio and 4-channel balanced audio. The device is compatible with 10-bit 4:2:2 video, making it an ideal companion for an HD video camera.

AJA Video IoHD Converter FireWire-800 Analog/Digital Capture Device Features

  • Broadcast Features: The IoHD features an RS-422 port for deck control and supports Genlock and LTC timecode via BNC. These connections are often used in professional broadcast environments.
  • HD Field Editing: The capture device can be used to put together assembly cuts and to review dailies in the field. It features ample connectivity, allowing it to be used with many different types of cameras and video formats.
