Allen & Heath MixWizard WZ4 16:2 Professional Mixing Console - SKU#1683842 Specifications

  • Maximum output level

    XLR +26dBu into 600Ohms max load
    Jack +21dBu into 2kOhms max load

  • Internal headroom

    Channels: +21dB
    Mix: +23dB

  • Meters

    3 colour LED, quasi peak response

  • Sensitivity

    0VU = +4dBu at XLR output

  • Master meters

    12 segment -30 to +16dB

  • Channel meters

    2 segment -12, +16dB (5dB before clip)

  • Frequency response

    10Hz to 30kHz +/-0.5dB

  • THD+n at +10dBu 1kHz

    Channel to mix out < 0.004%

  • Crosstalk at 1kHz

    Fader shutoff >90dB
    Channel mute >90dB
    Inter channel >90dB

  • Noise, rms 22Hz to 22kHz

    Mic EIN: -127dB
    Residual output noise < -95dBu (-99dB S/N)
    LR unity fader mix noise < -83dBu (-87dB S/N)

  • Channel HPF

    12dB/octave below 80Hz

  • Mono EQ

    HF Shelving, +/-15dB, 12kHz
    HM Peak/dip, +/-15dB, 500Hz to 15kHz, Q=1.8
    LM Peak/dip, +/-15dB, 35Hz to 1kHz, Q=1.8
    LF Shelving, +/-15dB, 80Hz

  • Stereo EQ

    HF Shelving, +/-15dB, 12kHz
    HM Peak/dip, +/-15dB, 2.5kHz, Q=1.8
    LM Peak/dip, +/-15dB, 250Hz, Q=1.8
    LF Shelving, +/-15dB, 80Hz

  • Power supply

    100-240V, 50/60Hz auto sensing, IEC input
    Power consumption 45W max
    Mains fuse T630mA L 20mm

  • Dimensions (W x D x H)

    Free standing dimensions 20 x 20.9 x 7.7" / 508 x 530.86 x 195.58mm
    Rack mounted 10U Underside connectors: 19 x 4.8 x 17.5" / 482.6 x 121.92 x 444.5mm
    Rack mounted 11.2U Rear connectors: 19 x 7.6 x 19.6" / 482.6 x 193.04 x 497.84mm

  • Weight

    28lbs / 12.70kg

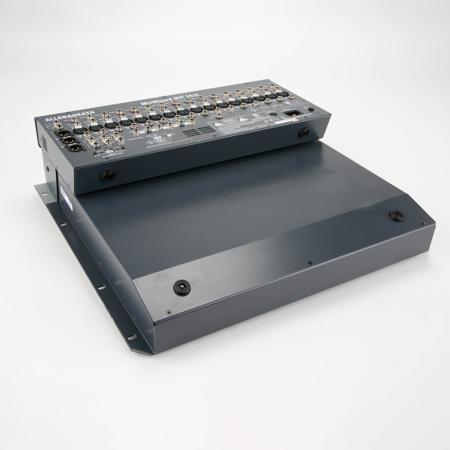

About Allen & Heath MixWizard WZ4 16:2 Professional Mixing Console - SKU#1683842

Over the years, the Allen & Heath MixWizard WZ4 16:2 Professional Mixing Console has consistently proven itself as a top-tier choice for both seasoned audio engineers and beginners alike. This versatile, all-purpose mixer is renowned for its simplicity, superior quality, and abundant input options.

The WZ4 16:2 is a compact, yet powerful, mixing console that offers 16 high-specification mic/line inputs in a straightforward, user-friendly format. This feature-rich mixer has been a consistent best-seller in the professional audio equipment market, thanks to its blend of functionality and simplicity.

One of the standout features of the MixWizard WZ4 16:2 is its acclaimed 4-band EQ with 2 sweepable mids. This allows for precise control over your sound, ensuring the highest quality output. The mixer also boasts high-quality 100mm faders for smooth, accurate control, and 6 aux sends for added versatility.

The 12-segment bar graph metering provides a clear, visual representation of your audio levels, while the unique QCC connector system offers easy mounting options, whether on a desktop, rack, or flightcase.

The 4th generation MixWizard console introduces several new features, including two newly designed digital FX engines with 20 studio-quality FX presets. This allows for a wide range of sound manipulation and enhancement options, right at your fingertips. The mixer also offers EQ in/out switching for added control over your sound.

For those interested in multitrack recording and 2-track playback, the MixWizard WZ4 16:2 offers the option to fit a multichannel USB interface with a high-quality 16-channel soundcard. This makes it an ideal choice for professional-grade, all-purpose analogue mixers in a compact, rack-mountable frame.

In the world of professional audio equipment, the Allen & Heath MixWizard WZ4 16:2 Professional Mixing Console continues to set the standard. Its blend of functionality, quality, and user-friendly design make it a standout choice for any audio professional.

Allen & Heath MixWizard WZ4 16:2 Professional Mixing Console - SKU#1683842 Features

  • 19"Rack mountable
  • 16 mic/line inputs with balanced XLR/TRS jack, insert and direct output
  • 100mm faders
  • 4 band EQ with 2 swept mids
  • 6 Aux sends - 2x pre fade / 2x switched / 2x post fade
  • 2 Stereo returns
  • Dedicated mono output fader - can be switched to provide an L+R mono feed for a centre or fill speaker, or sub bass feed
  • Independent A-B output for 2-track recording, monitor foldback, speaker fills etc
  • Tri-color, 12 segment bar graph metering
  • Twin FX engines with 20 studio quality FX presets
  • +48V Phantom Power
  • Signal and Peak LEDs
  • Lamp socket
  • USB multitrack recording option
  • Footswitch connector (mutes/unmutes the ST1 FX Return)

What's in the box:

  • Allen & Heath MixWizard WZ4 16:2 Professional Mixing Console
  • Item Note: Missing Power Cord; 8x Screws
