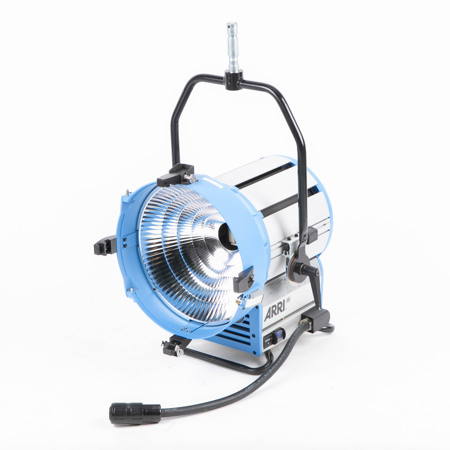

Used ARRI M40 HMI Head, 2500 or 4000W Lamps, 1-1/8" Stand Mount, 18 - 52deg. Focusing Range KIT

SKU: US1705486

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

ARRI M40 Specifications

  • Color

    Blue/Silver

  • Series

    M-Series

  • Model

    M-Series M40

  • Mains Plug

    VEAM, Schaltbau (GTV-Standard)

  • Lamp head Type

    Open Face with Facetted Reflector, 2,500 / 4,000 W

  • Reflector

    MAX Technology reflector made of high purity aluminum

  • Lamp Type

    Metal Halide 4,000 W/SE; Metal Halide 2,500 W/SE

  • Power Consumption

    4,000 W / 2,500 W

  • Voltage Range

    200 V / 115 V

  • Lamp Base

    G38

  • Dimming

    Yes, 50 to 100 % via ARRI Ballast Unit

  • Correlated Color Temperature

    6,000 K

  • Beam Angle

    18 Degree to 52 Degree (with 4,000 W lamp)

  • Lens / UV-Protection Glass Diameter

    13.8" (350mm)

  • Mounting

    Spigot: 1.1" (28mm)

  • Protection Class / IP Rating

    I / IP23

  • Certifications

    CE, UKCA, CB, GS, cNRTLus

  • Dimensions (H x W x L)

    33.0 x 19.9 x 20.6" (839 x 505 x 524mm) (Incl. Pin)
    27.8 x 19.9 x 20.6" (706 x 505 x 524mm) (Excl. Pin)

  • Weight

    43.97 lbs (20kg) (Approx.)

8 Accessories for ARRI M40 HMI Head, 2500 or 4000W Lamps, 1-1/8" Stand Mount, 18 - 52deg. Focusing Range KIT

  • All Accessories (8)
  • Lamps & Bulbs (1)
  • Light Stands (1)
  • Softboxes & Accessories (1)
  • Lampheads (1)
  • Diffuser (1)
  • Clamps (1)
  • Light Meters (1)
  • Tools (1)

About ARRI M40 HMI Head, 2500 or 4000W Lamps, 1-1/8" Stand Mount, 18 - 52deg. Focusing Range KIT

More Light, Less Work
A member of the ARRI M-Series, the M40 is a lens-less system that unifies the advantages of Fresnel and PAR fixtures. The unit is open face and thus very bright: around 30 % brighter than an AS 40 in spot.

Due to its unique, patented MAX Technology reflector, it is also focusable over a range of 18 Degree to 52 Degree Half Peak Angle. The M40 gives a remarkably even beam spread that casts crisp shadows over the whole focus range.

The reflector characteristics is optimized for 4,000 W lamps, but can also be used with 2,500 W lamps. The elimination of heavy but fragile spread lenses makes the lamp head ideal for rough location use, speeds up the work flow and reduces total cost of ownership.

The M40 is equipped with a module (Compensation of Cable Losses). In the combination with the ARRI EB MAX 2.5/4 the system reliably compensates losses over long cable lengths of up to 100 m (330 ft). This keeps the lamp power constant for maximum output and best color rendition.

In order to hold even the heaviest accessories safely in place, the M40 has a tubular steel yoke and two disc brakes. Equipped with robust steel handles on both sides - same as M90 - the design offers best handling and grip with all weather and application conditions.

The M40 has the same accessory diameter as the AS 40 so that existing barndoors and scrims can be reused.

Like all True Blue ARRI lamp heads, the M40 implements CrossCooling and allows thus safe operation even at extreme tilt angles. The electronics housing is spaced apart from the actual lamp housing to keep temperatures down and prolong the lifetime of electronic components. It is easy to open and to maintain.

For outdoor use the M40's IP23-rated weather resistance withstands even driven rain.

ARRI M40 HMI Head, 2500 or 4000W Lamps, 1-1/8" Stand Mount, 18 - 52deg. Focusing Range KIT Features

  • Lens-less MAX Technology: Easy to use
  • Around 30 % brighter than AS 40
  • Compensation of Cable Losses (CCL)
  • Steel yoke
  • Two disk brakes with steel handles
  • Cross-Cooling allows safe operation at extreme tilt angles
  • Suitable for high frame rate images
  • Weather resistant

What's in the box:

  • ARRI M40 HMI Lamp Head (Blue/Silver)
  • (Lamp Not Included)
  • Mounting Yoke
