1000 watts, 120-240VAC
G22 Bi Pin
5.9" (150mm) low expansion borosilicate Fresnel lens
Spherical specular high purity aluminum
5/8" Baby spigot
Tubular
10' (3 m) Power Cable, switch, Edison plug
Front and rear mounted knobs
16.8 x 11.4 x 8.8" (42.7 x 29 x 22.4cm) including yoke and mount
10.1 lbs (4.6kg)

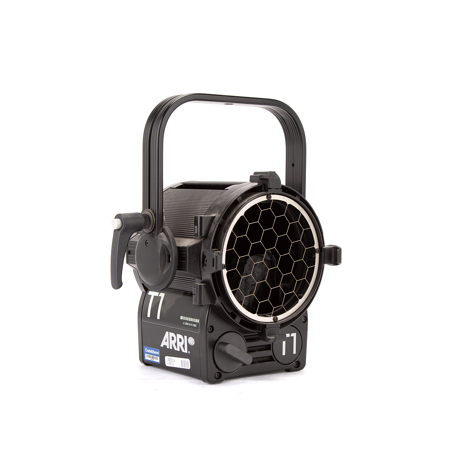

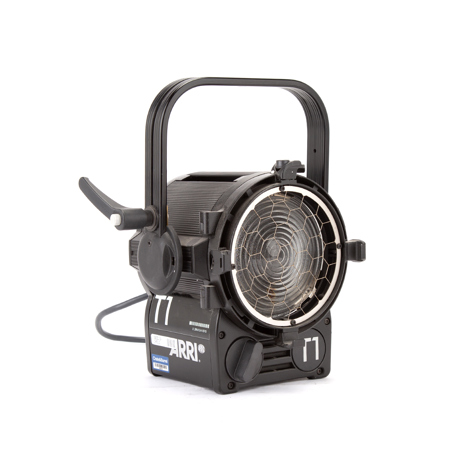

The Arri T1 Location 1000W Fresnel, Hanging (120-240VAC) (Black) is an updated version of the Compact Series of Location Fresnels. Combining research, feedback from around the world and advances in technology, Arri has designed a series of six Fresnels with over 30 improvements for studio and location lighting. The True Blue Series has reduced weight, compact size and maximum light output.
Arri's cross cooling system reduces lamp housing temperature by 25% and lens temperature by 17%. With special air channels built into the aluminum extrusion, a constant stream of air passes around the Fresnel lens and into the lamphead regardless of the tilt angle. When fitted with a 1000 watt bulb (available separately) this fixture will provide a 2.8' (0.9 m) diameter beam of 409 fc from a distance of 20' (6.1 m) at full spot. At full flood (same distance) it will provide a 48 fc, 20.4' (6.2 m) diameter beam.
