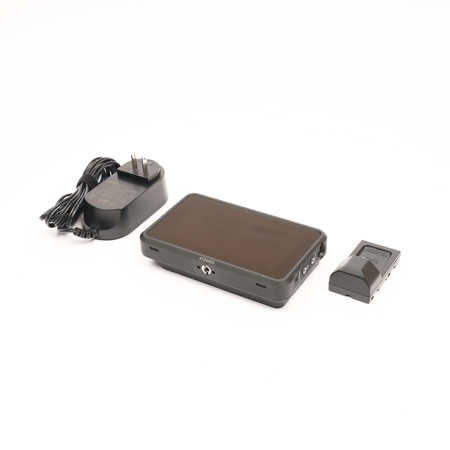

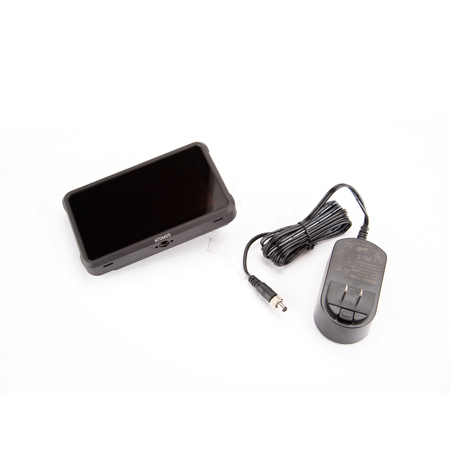

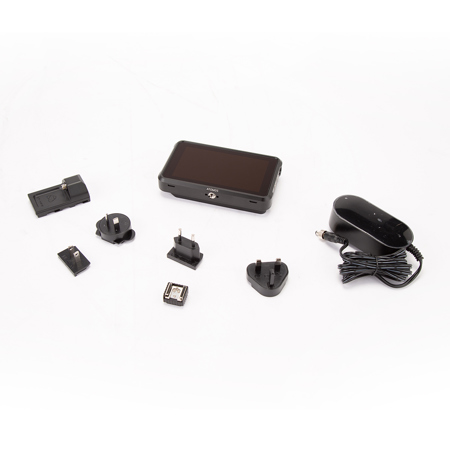

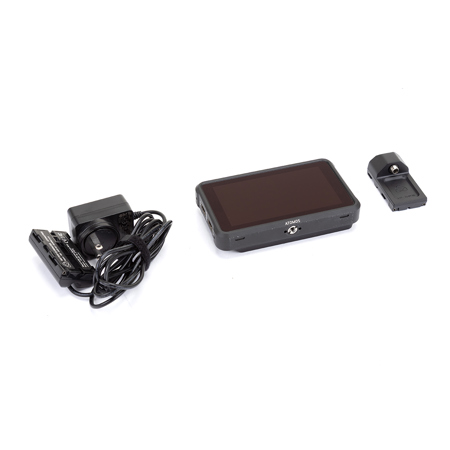

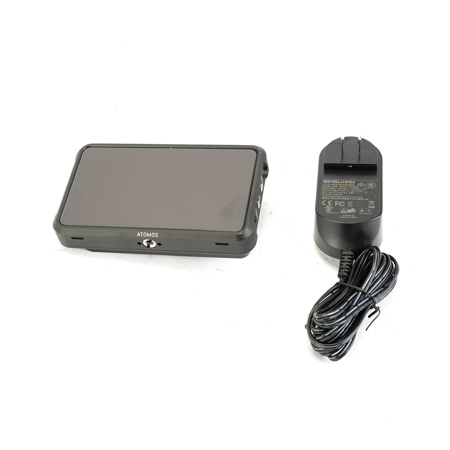

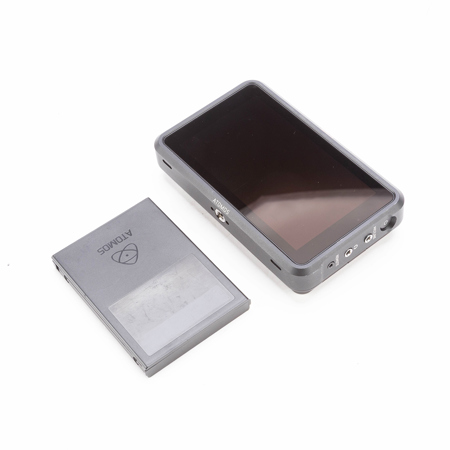

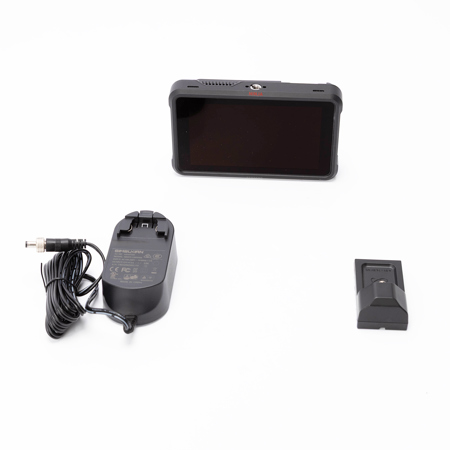

Used Atomos Ninja V 5" Touchscreen Recording Monitor, 1980x1080, 4K HDMI Input

SKU: US1985498 MFR: ATOMNJAV01
Earn VIP Reward Points

What`s in the box:

    See more

    Key Features

    • Ninja V is a small form factor, 1" thick 5" monitor recorder
    • 4Kp60 10bit HDR daylight viewable 1000nit portablemonitor/recorder
    See More Product Details

    INCLUDES FREE WARRANTY

    • This used item comes with a free 180-day warranty. ?
    Overview
    Compare
    Accessories
    Learn
    Specs
    Protection
    Q&A

    Questions & Answers

    Reviews about this item

    Review Summary

    2024-08-07T06:13:17

    Rated 5 out of 5

    Would buy again

    Amazing monitor and great bundle kit!

    Christian N.

    2024-01-14T10:19:01

    Rated 5 out of 5

    So far, great!

    Fab. Wish it came with everything as that's been a task but love the V!

    Kenda N.

    2023-06-18T17:49:11

    Rated 5 out of 5

    Good product

    Very good product, only downside is the battery consumption is very high.

    BRIAN V.

    2023-06-06T15:47:25

    Rated 4 out of 5

    Not a cheap Monitor.

    What preventing me from giving this a 5 star rating is two things. 1.) there is an orange tint that reading more into it, is fairly common amongst most users. 2.) It's ridiculous how much add ons you need to purchase separately to actually use this monitor.

    Chris C.

    2023-05-28T08:55:59

    Rated 5 out of 5

    It's a classic piece of gear for a reason.

    LOVE this recording monitor. Its a classic for a reason. Beautiful image, easy to work with. Built like a tank. I use it mounted to my D850 on a Smallrig setup, couldn't be happier.

    CHARLES K.

    2023-05-25T10:02:35

    Rated 5 out of 5

    Essential tool for serious professionals

    This is the most helpful tool for capturing files and nailing exposure. The Ninja V easily replaces the in-camera screen with so many more features. I can see the screen in direct sunlight and the file format choices are such a neccessity when importing and editing files into my NLE (Resolve). 24fps at 4k in DNxHR is worth it. From camera to timeline...then just start editing. One other feature, often overlooked, is the ability to record simultaneously to the SD card in the camera and to the Ninja V. This is great for people using cameras with one SD slot...this is like buying an insurance policy. Just this alone is worth the purchase. If you're on the fence about getting it...just do it. You will not regret it.

    Ron V.

    2023-05-09T23:47:58

    Rated 5 out of 5

    Atomos ninja v best monitor ever

    The best monitor very nice quality

    Jesus C.

    2023-05-09T23:43:56

    Rated 5 out of 5

    Atomos ninja v the best

    Best monitor and very nice shipping super fast

    Jesus C.

    2023-05-05T15:06:23

    Rated 5 out of 5

    ProRes RAW, who else can do that in that price point?

    Great one of course. All the options, the quality and the firmware updates. ProRes RAW, who else can do that in that price point?

    Dimitrios K.

    2023-03-23T02:49:01

    Rated 5 out of 5

    Great video recorder

    Excellent recorder. I purchased this because my Nikon DSLR has a 20 minute limit on built in recording. The size of the screen is really to see everyting in the scene. Very well built, solid construction. Would purchase again.

    Edward D.

    2023-03-14T08:27:56

    Rated 5 out of 5

    Worth it

    Really great monitor at first I was hestiant but needles to say its worth every dollar. Great packaging as well, comes with everything to get started. Only accessories you'd need is a battery+ charger and ssd and your good to go

    KRISTOPHER V.

    2022-12-28T20:15:45

    Rated 5 out of 5

    I love it

    Best monitor

    Rodgers G.

    2022-12-23T21:01:27

    Rated 5 out of 5

    Great

    Fast shipping and loving this product so far!

    ARIEL R.

    2022-10-26T08:20:46

    Rated 5 out of 5

    It?s a great device for still photographers

    The onion skin feature, which comes with the latest firmware update, us what sealed the deal for me. The other features such as false caller also took my photography to the next level. I found this to be an invaluable tool for still photographers.

    TIMOTHY H.

    2022-08-25T10:21:30

    Rated 5 out of 5

    Ninja v

    Does as advertised. Support was quick with help. No regrets.

    John L.

    2022-08-03T19:20:54

    Rated 5 out of 5

    its a great little screen.

    its a must for wildlife photography... you can snap photo from the cam and take a video from the screen at the same time..

    meshal a.

    2022-07-24T11:22:18

    Rated 5 out of 5

    Good 4k recorder bundle.

    This is a great little recorder and works great for 4k recording. I got the battery bundle at a good price from Adorama. I?d buy it again at that price...

    ANDRE V.

    2022-07-21T08:59:46

    Rated 5 out of 5

    Ninja V + x-t4

    Works well with my x-t4 rig, screen is visible in full sunlight

    JAMIE J.

    2022-07-21T05:17:29

    Rated 5 out of 5

    A solid well built unit with multiple features

    My main interest was for exposure with the false color feature. Well, there's so much more to this monitor, that it is now a permanent fixture on my studio.

    Fernando B.

    2022-07-14T08:44:57

    Rated 5 out of 5

    Great Product

    Amazing product, love how it simplified my work flow having Prores raw recorded right out of camera and edit ready straight from a Sata device.

    Shirone R.

    2022-07-13T08:42:47

    Rated 5 out of 5

    Worth every penny

    I love this thing! There are tons of guides and screens to help with everything from focus to exposure. The ability to record directly to SSD instead of being limited by my camera?s internal memory (and 20 minute limit) is a huge advantage as well. With just a few cheap accessories I was able to easily mount this to my Ronin and set myself up with a pretty nice little rig.

    John M.

    2022-06-11T17:30:57

    Rated 5 out of 5

    Well built versatile product

    This device is amazing. Not only is it a great hi-brite focusing monitor with tools, it can also be used to record 4k pro-rez. I was on a shoot where someone forgot the media. We were two hours away from a town. One of these saved the day and allowed us to record. Worth every penny for the price. A great built product.

    ANDREW K.

    2022-06-06T12:34:45

    Rated 5 out of 5

    The best Lumix monitor out there!

    Well built and the ability to record pro-res is incredible!

    DANIEL Y.

    2022-06-06T10:13:39

    Rated 5 out of 5

    Worth every penny

    Love this thing! No idea why I waited so long to get one. Lots of great tools for focus and exposure, SSD recording, LUT monitoring?and more

    John M.

    2022-05-22T20:35:31

    Rated 5 out of 5

    Simplicity at its finest.

    Easy to mount and use.

    JOCELYN R.

    2022-05-16T08:44:31

    Rated 5 out of 5

    I should have purchased it sooner!!

    Great device a must have for videography.

    ROBERTSON F.

    2022-05-02T22:47:47

    Rated 5 out of 5

    Best display purchase.

    Love this display, comparing to price.This display is so solid built. Love it. Also variety of professional tools to use to get properly expose footages.

    Henry Z.

    2022-05-02T13:36:25

    Rated 5 out of 5

    Best in class, amazing software & hardware for videographers

    I?m on my third Ninja V, and I mean 3x actual items on 3 cameras. Excellent product with amazingly easy to use software. Best in class.

    ROBERT A.

    2022-04-15T11:33:19

    Rated 5 out of 5

    Just Works!

    Works flawlessly with my ZCAM E2 cameras. Chose to add the AtomX sync on 3 ZCAMS that link up to my Atomos Sumo. Killer setup.

    Scott S.

    2022-04-08T15:00:58

    Rated 5 out of 5

    Great capture device

    This product upgraded my a6500 as an engineering tool, monitor and fantastic capture device. I use it on pro shoots where I need to be nimble.

    Thomas I.

    Atomos Ninja V Specifications

    Touchscreen

    Touchscreen

    Jump to...
    • Size

      5"

    • Resolution

      1920 x 1200

    • PPI

      427

    • Aspect ratio

      16:9 native

    • Color Gamut

      REC709 HDTV

    • Look up table (LUT) support

      3D LUT (.cube format)

    • Anamorphic de-squeeze

      2x, 1.5x, 1.33x, Panasonic 8:3

    • Technology

      SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit

    • AtomHDR

      Yes

    • Supported Log formats

      Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C, Panasonic Vlog, JVC JLog, Red LogFilm, FujiFilm Flog, Nikon N-Log

    • HDR Recording (Gamut)

      Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ10k, HLG

    • HDR Monitoring (Gamma)

      Sony SGamut / SGamut3 / SGamut3.cine / BT2020
      Canon Cinema / DCI P3 / DCI P3+ / BT2020
      Panasonic V Gamut
      Arri Alexa Wide Gamut
      Rec709
      JVC LS300
      Red DragonColor / DragonColor2 / RedColor2 /
      RedColor3 / RedColor4 / RedWideGamut

    • HDR Monitoring (Gamut)

      Wide Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / Arri Alexa Wide Gamut) mapping to Rec709 on screen Wide Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / Arri Alexa Wide Gamut) mapping to Rec709 / BT2020 / DCI P3 on loop out

    • Bit depth

      10-bit (8+2 FRC)

    • Brightness

      1000nit (+/- 10% at center)

    • HDR input (PQ/HLG)

      Yes / Yes

    • HDR output (PQ/HLG)

      Yes / Yes

    Video Input/Loop Out

    Jump to...
    • HDMI

      1x HDMI (2.0)

    • Signal

      Uncompressed true 10-bit or 8-bit 422 (camera dependent)

    Video Output (Play Out)

    Jump to...
    • HDMI

      1x HDMI (2.0)

    • Signal

      Uncompressed true 10-bit or 8-bit 422 (playback file dependent)

    Supported Loop Out Formats

    Jump to...
    • HDMI to HDMI

      720p 50/60, 1080i 50/60
      1080p 24/25/30/50/60/100/120
      2160p 24/25/30/50/60

    AtomXpansion Extender In/Out

    Jump to...
    • Video

      Up to 4Kp60

    • Audio

      12 channels digital 24-bit 96KHz

    • Power

      5V-16.6V

    Supported Codecs & Frame Rates

    Jump to...
    • Video to ProRes / DNxHR

      Apple ProRes HQ, 422, LT AVID DNxHR HQX. HQ, SQ, LB
      4K DCI; 24/25/30/50/60p
      4K UHD; 24/25/30/50/60p
      2K
      1080p; 24/25/30/50/60/100/120
      1080i; 50/60i, 720p; 50/60p (DNx utilizes a .MOV wrapper)

    Onboard Processing

    Jump to...
    • Pulldown removal

      24/25/30pSF > 24/25/30p (2:2 pulldown)
      60i > 24p (3:2 pulldown)

    • 4K UHD downscale for HD monitoring

      Yes - Loop-out and playback

    Audio In/Out (48kHz PCM Audio)

    Jump to...
    • HDMI

      2 or 8ch 24-bit, camera dependent

    • Audio

      Line in / Mic in / Headphone out 2ch 48kHz 24-bit

    • Headphone out

      3.5mm

    • Built-in speakers

      Yes

    Remote Start/Stop

    Jump to...
    • HDMI

      Auto HDMI Trigger
      Supported Protocols - Canon, Sony, Atomos Open Standard

    • Other

      LANC control - Slave

    Playback

    Jump to...
    • Playlist

      Yes

    • ProRes (Recorded content)

      All recorded files can playback. Playback in slow motion

    • DNxHR / DNxHD (recorded content)

      All recorded files can playback. Playback in slow motion

    Recording

    Jump to...
    • Pre-roll record

      Yes (HD 8s, 4K 2s)

    • Custom timelapse

      Yes

    • Meta data tagging

      Yes (10 tags available)

    • Supported media

      2.5" SSD/HDD compatibility depends on recording format, resolution and frame rate

    • Master caddy dock

      2.5" SATA to USB 2.0/3.0

    • Supported applications

      Supported Applications FCPX/FCP7+ / Media Composer
      5.0+ / Premiere 5.5+
      EDIUS 6.0+ / Vegas Pro 10+ / Lightworks /
      Autodesk Smoke 2015

    • XML support

      FCPX XML native, FCPX/Adobe limited supported with 3rd party conversion tools

    • Operating power

      10 - 19W

    • Compatible batteries

      NP-F series and supporting accessories

    • Input voltage (battery)

      6.2V to 16.8V

    • Battery time (based on 2x 7.4V)

      5200mAh - up to 2hrs (monitor & record 4K 60p)
      7800mAh - up to 3hrs (monitor & record 4K 60p)

    General

    Jump to...
    • Construction

      Aluminum alloy chassis with ABS polycarbonate back plate

    • Mounting points

      1/4-20 UNC screw mount; 1x top, 1x bottom

    • Dimensions

      Monitor (WxHxD): 151 x 91.5 x 31mm (5.94 x 3.60 x 1.22")
      Master caddy case: 75 x 105 x 12mm (2.95 x 4.13 x 0.47")

    • Weight

      Without batteries & media: 320g (11.29 oz)
      With stand: 6.0kg (13.23 lbs)

    Related Articles & Videos

    Essential Accessories for Better Video on Your DSLR or Mirrorless Camera

    Essential Accessories for Better Video on Your DSLR or Mirrorless Camera

    The videos that are coming out of today’s DSLRs or mirrorless cameras are phenomenal but these video camera accessories will elevate it.
    Read more
    The Best On-Camera Monitors & External Camera Screens

    The Best On-Camera Monitors & External Camera Screens

    Do you need a bigger monitor for upcoming video shoots? Check out our top picks for the best on-camera monitor and external camera screen.
    Read more
    25 Great Gifts for Filmmakers and Videographers

    25 Great Gifts for Filmmakers and Videographers

    For the filmmakers, videographers, aspiring YouTube stars, and those looking to capture motion and action, set their 2019 aspiration off with the right foot by gifting them with these primetime-ready presents for optimal production: [caption id="attachment_53761" align="aligncenter" width="1000"]...
    Read more
    Gifts for Grads: The 17 Best Gifts for Aspiring Creatives

    Gifts for Grads: The 17 Best Gifts for Aspiring Creatives

    As graduation nears for students across the country, it’s time for loved ones to invest in some of the most functional (yet fun) graduation gifts for seniors. Today’s high school and college graduates are entering the "real world" with a variety of creative opportunities that didn’t exist just 10 ye...
    Read more

    20 Accessories for Atomos Ninja V 5" Touchscreen Recording Monitor, 1980x1080, 4K HDMI Input

    • All Accessories (20)
    • Memory & Storage (1)
    • Cables & Adapters (1)
    • Headphones (4)
    • Batteries & Power Supply (8)
    • Ball Heads (2)
    • Mounting (1)
    • Plate (2)
    • Camera Cages and Rigs (1)

    About Atomos Ninja V 5" Touchscreen Recording Monitor, 1980x1080, 4K HDMI Input

    FEATURED REVIEWS

    Best Run-and-gun Recorder/Monitor Combo

    By ZACHARY W.

    My hesitancies with other Atomos recorders is the size. This 5” monitor is the perfect size for my use as a run-and-gun videographer/filmmaker. I attach it to my Ronin-S and it’s excellent to get a more clear video from it. I use it with the Panasonic GH5S and it’s nice because it automatically understands what resolution you are filming at. It’s cheaper to use this to record 4K at 60p with an SSD versus buying V60 or V90 SD cards to do it internally. I love working with ProRes so this record...

    View full Review

    Happy Customer

    By STEPHANIE W.

    The Atomos Ninja V has changed the way I record video. It allows my Sony A7iv to be used to its highest recording capabilities without the need to purchase CF Express cards. I simply record to the angelbird SSD. It is user friendly! I?m glad I purchased the Ninja V!

    ENTER THE NINJA V

    Record like a Ninja!

    Record up to 4Kp60 10-bit HDR video direct from your camera's sensor, over HDMI 2.0. Store edit-ready ProRes or DNxHR on affordable SSD drives and bypass your cameras internal compression and record time limits. 1TB will give you 2.5hrs 4K on tiny AtomX SSDmini.

    Record like a Ninja!

    The SSD ... made Mini!

    At 7mm high and 80mm long, the new AtomX SSDmini is 20% shorter than traditional SSDs, but keeps the SATA III connector, and is backward compatible with previous Atomos drives with the help of our clever extension handle. The new SSDminis are so tiny and slim… that our close drive partners Angelbird, G-technology and Sony are all making custom versions for your Ninja!

    MINI-SSD

    Compact Excellence.

    The stunningly bright 5.2-inch 10-bit HDR monitor has an astounding 1,000 nits of output. It’s a sleek 1” (2.5cm) aluminium body, is crafted for maximum durability, weighs in at just 11oz (320g), and attaches to any camera rig easily.

    Small Monitor  made perfect

    Brilliant HDR/SDR Footage.

    The Ninja screen displays a stunning 10+ stops of dynamic range in realtime from Log/ PQ/HLG signals. Clearly see your images in daylight on the near edge-to-edge anti-reflection screen. The display can be calibrated for perfect color accuracy every time, with playout to HDR or SDR TV sets.

    SDR perfection every time

    This Game Recording Device Does Not Play Around.

    4kp60 or HDp240 Game Recording just became fun and simple from any HDMI gaming unit. Place the Ninja V in-between your unit and the TV, and record for hours to off-the-shelf SSD drives. Auto HDR flags mean perfect TV set up every time! Show off your skills or check your game development on the most stunning video recorder ever built!

    Record HDR Games

    The Industry's Most Technically Advanced Capture Card.

    All other capture cards that allow you to record 4K & 60FPS HDR, require a desktop computer or an expensive laptop. The Ninja is the only portable solution to recording & uploading live gaming & is compatible with even the most budget laptop setup without suffering any losses! Preroll captures the last 2 seconds on 4K before recording, and the last 8 seconds of 1080P, so even if you forgot to hit that red button, you won't miss anything.

    AtomOS Tools & Pocket Sized Playback.

    AtomOS gives simple tools for accurate set up and one-touch operation ensuring a great record each take. Recording isn't complete until checked. AtomOS gives speedy playback, slow motion and frame by frame analysis for instant review.

    AtomOS Tools and Pocket Size Playback

    Ultimate Pro-Video & Broadcast Monitor.

    Any production large or small needs high quality viewing. Even if you aren’t recording, the Ninja V is the best monitor available today. Audio can be input directly from the camera digitally via HDMI, or fed in analogue via a stereo 3.5mm line/mic socket – especially useful for cameras that do not have a mic input.

    Ultimate Pro-Video & Broadcast Monitor

    Post-Production Simplified.

    The recorded Ninja files are available immediately on your Mac or PC for editing. Video and gaming workflows are supported for the fastest path to your audience. Tag while recording on the fly for direct-to-edit look-up with up to 6 streams, edited directly from the SSD in Final Cut Pro X, Adobe Premiere or Avid Media Composer.

    Edit, finish & upload on Mac & PC

    Endless Open Expansion.

    Enhance the Ninja V through the in-built modular expansion slot. Bi-directional high speed video, audio and power are available. Expansion modules will dock onto the battery slot of the unit and offer advanced features.

    Endless Open Expansion

    Warranty Information

    This used item has a FREE 180-day warranty. See details.
