Audio 2000s AWM6031DU Specifications

System
  • Carrier Frequency Range

    571-598MHz

  • Frequency Stability

    +/-0.005%

  • Audio Frequency Response

    80-15000 Hz

  • Image & Spurious Rejection

    50dB Minimum

  • S/N Ratio

    >80dB

  • Max. SPL

    110dB

  • Total Harmonic Distortion

    <1%

  • Service Area

    150' (45.72m)

  • Operation Temperature

    14 to 122 deg. F (-10 to 50 deg. C)

Receiver

Jump to...
  • Carrier Frequency Range

    571-598MHz

  • Frequency Stability

    +/-0.005%

  • Receiving Sensitivity

    -105dBm

  • S/N Ratio

    80dB

  • Total Harmonic Distortion

    <1%

  • Audio Output

    1/4" and XLR (0-300mV at 600 Ohms)

Transmitter

Jump to...
  • Carrier frequency range

    571-598MHz

  • Frequency stability

    +/-0.005%

  • Modulation type

    Frequency modulation (FM)

  • Modulation depth

    40KHz

  • Output power

    30mW, Max

  • Spurious emission

    >55dB

  • Battery

    9V Battery

  • Current consumption

    <40mA

General

Jump to...
  • Dimensions (WxDxH)

    Receiver: 8.5 x 1.6 x 5.4" (21.59 x 4.06 x 13.72cm)
    Transmitter: 9.3 x 2 x 2" (23.62 x 5.08 x 5.08cm)

About Audio 2000s AWM6031DU UHF Single-Channel Diversity Wireless Microphone System

The Audio2000'S AWM6031DU wireless system is a UHF single-channel diversity wireless microphone system. With the exceptional RF transmission and reception, the AWM6031DU system, with a transmission range of more than 150 feet, fully delivers all the reception and audio quality features that allow you to really enjoy the freedom of wireless without any of the problems.

Engineered For Dependable UHF Systems
As all the other Audio2000'S wireless products, the AWM6031DU system has been engineered to be dependable UHF system with a wide audio frequency range, high S/N ratio and outstanding performance equal to that of any professional wireless systems costing much more. This is achieved through strict component selection and high quality circuit design. A delicately designed silence circuit eliminates static noise when the transmitters are either turned off or out of transmission range. An auto mute circuit is incorporated in these systems to effectively eliminate the popping noise when the switch is turned on or off.

System Designed For Accessibility
The AWM6031DU system has been designed and manufactured to be dependable, problem free, versatile and easy to use. The AWM6031DU system is intended to be readily accessible to everyone with exceptional performance at a preferred and affordable price.

- AWR6031DU Receiver -
• UHF Band Frequency
• One XLR Balanced Output and One 1/4" Unbalanced Audio Output
• RF Input with Built-in RF Preamplifier to Improve S/N Ratio, Sensitivity and Dynamic Range
• Low Noise Mixer Circuitry for Reducing interference
• Squelch Control at the Rear Panel
• Diversity Receiver for Optimal Reception
• 12V-18V DC Power Supply

- AWX6030 Transmitter -
• UHF Band Frequency
• High Sensitivity Cardioid Microphone Capsule
• Noise Reduction Mechanism for Eliminating Handling Noise and Switch Shock Noise
• Low Battery LED Indicator

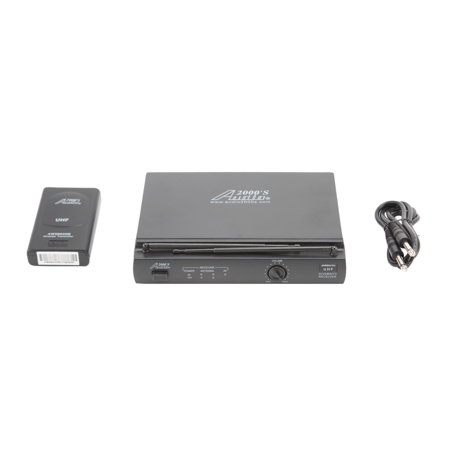

What's in the box:

  • Audio 2000s AWR6031DU Receiver
  • AWX6030 Transmitter
  • Carrying Case
  • Item Note: Missing Lav Mic
