Band C: 541.500 MHz to 566.375 MHz
Back-Lit LCD Display & Battery / Signal Status LED
High Impedance / Low Impedance / Bias UniPak Connection
Various Audio-Technica Microphones and Cables Featuring a UniPak Connection
Four-pin Locking Connector
Pin 1: GND
Pin 2: INST INPUT
Pin 3: MIC INPUT
Pin 4: DC BIAS +5V
(2) 1.5v AA Alkaline
High: 6 Hours (Alkaline)
Low: 8 Hours (Alkaline)
Depending on Battery Type and Use Pattern
Power / Mute switch dual function
High: 30mW, Low: 10mW (switchable), at 50 ohms
BNC Flexible UHF
2.60x3.43x0.94" (66.04x87.12x23.87mm)
Without Batteries: 2.90oz (82.21g)
Adorama has everything ! And at very competitive prices !
By JOHN L.
When none of my regular suppliers did not have what I needed quickly , Adorama did . Shipment was fast and the price was equal to my suppliers . The items worked flawlessly . First rate products and an Excellent company .

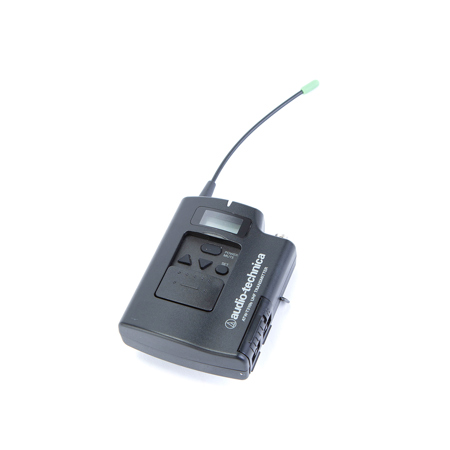

The Audio-Technica ATW-T310BC Wireless UniPak Body-Pack Transmitter has both low and high impedance inputs plus a 5V DC bian connection allowing it to be used with condenser and dynamic microphones, as well as Hi-Z instrument pickups. The locking 4-pin HRS-type audio input connector is recessed to protect the connection from damage. Operating on two standard AA batteries, the transmitter features high and low-level RF output settings. The low-level setting allows two additional hours of battery life while retaining a strong RF signal link.
Soft-touch controls provide convenient access to a variety of functions including: RF power, audio input level, power/mute locks and frequency selection. Each transmitter's backlit LCD display presents a great deal of setup and operating information clearly and conveniently including battery fuel remaining, mute and operating frequency. A flashing "Lo-Batt" alert visually signals the battery life is almost depleted. A dual-color status LED illuminates green when power is on and red when the transmitter is muted.
Programmable power/mute locks limit the functioning of the transmitter's power/mute button as desired for particular users and applications. To match the audio input level to the transmitter, a four-position audio input gain setting selected through the function menu is provided.
The body-pack transmitter features a safety cover to protect the soft-touch controls from being accidentally activated and a recessed input connector to increase the life of the microphone cable. Constructed of high impact materials, the body-pack transmitter features a field replaceable whip antenna and captive locking battery cover door.
