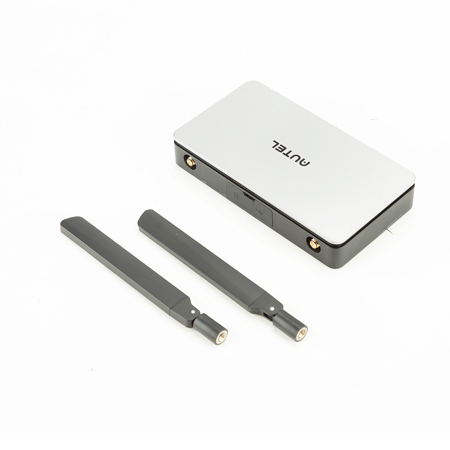

Used Autel Robotics Live Deck 2 for Drones

SKU: US1983042 MFR: 102001438
Earn VIP Reward Points

What`s in the box:

  • Autel Robotics Live Deck 2
  • SMA Threaded Antenna (Pair)
See more

Key Features

  • Enhance your drone's capabilities with the Autel Robotics Live Deck 2 for seamless operations.
  • Experience extended drone flights with a 5-hour battery life for uninterrupted aerial missions.
  • Achieve reliable, long-range drone control with a transmission range of up to 12 kilometers.
  • The Live Deck 2 supports multiple EVO II drone models for versatile compatibility options.
  • Enjoy crystal-clear, real-time drone footage with 1080P/60FPS HDMI output for monitoring.
  • Rugged IP43 rated design ensures dust and water resistance for reliable drone performance.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 1-year warranty. ?
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Autel Robotics Live Deck 2 Specifications

  • Dustproof and Waterproof

    IP43

  • Working Frequency

    902-928 MHz ¼FCC¼; 2.4GHz-2.4835 GHz
    5.725 GHz-5.850 GHz (non-Japan); 5.650-5.755 GHz (Japan)

  • Transmission Power (EIRP)

    900 MHz: FCC<=33 dBm
    2.4 GHz: FCC/NCC<=33 dBm; CE/MIC/SRRC/KC<=20 dBm
    5.8 GHz/5.7 GHz: FCC/SRRC/NCC<=33 dBm; KC<=20 dBm; CE<=14 dBm

  • Image Transmission

    12 km

  • Battery Life

    5 hours

  • Working Current / Voltage

    1.3 A / 3.85 V

  • Battery

    Li-Po

  • Battery Capacity

    5000 mAh

  • Energy

    5 W

  • Operating Environment Temp

    14 Degree F to 104 Degree F (-10 Degree C-40 Degree C)

  • Humidity Range

    95% RH

  • HDMI

    1080P / 60FPS

  • Ethernet

    100 M

  • Supported Models

    EVO II Pro V3, EVO II Dual 640T V3, EVO II RTK Series V3, EVO II Enterprise V3

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

  • Dimensions

    5.9 x 4.3 x 0.91" (152 x 111 x 23.2mm) (antennas folded)
    8.8 x 5.9 x 0.91" (223.9 x 152 x 23.3mm) (antennas unfolded)

  • Weight

    14.9 oz (424.5 g)

About Autel Robotics Live Deck 2 for Drones

What sets the Live Deck 2 for Drones apart is its sleek design and high-tech capabilities, making it a must-have accessory for drone enthusiasts. This stylish and compact device, brought to you by the reputable Autel Robotics, is designed to transmit real-time full HD video to your TV, computer, or multiple cell phones. It does this using a variety of interfaces, including Ethernet, USB-A, HDMI, or its own generated Wi-Fi.

The Live Deck 2, an Android-based device, boasts an upgraded image transmission technology, enhancing its anti-interference ability to be four times greater than its predecessor, the Live Deck. It supports a wide range of working frequencies, including 2.4GHz, 5.8GHz, and 900MHz, ensuring a strong and stable connection with your drone.

Based on the advanced SkyLink 2.0 image transmission system, the Live Deck 2 communicates with your drone via a three-in-one antenna. This feature significantly improves the performance of the transmission, anti-EMI, and low latency, providing you with a seamless drone operating experience.

One of the standout features of the Live Deck 2 is its advanced signal anti-interference system. With its cutting-edge algorithms and frequency hopping, you can rely on consistent, uninterrupted operation, even in challenging working environments.

The Live Deck 2 also offers the ability to connect with up to four additional phones, providing HD video streams for advanced mission flexibility. This feature eliminates the need for a TV to broadcast the drone view, making it a versatile tool for various drone applications.

For those concerned about security, the Live Deck 2 is a closed-loop system with no servers or external connection points, offering maximum security over online options. It's a simple 'buy, set, and forget' device with no accounts or subscriptions needed. Just pair it with your EVO II V3 drone within a minute and enjoy the compatibility.

The Live Deck 2 doesn't require internet or cell service, making it perfect for operating your drone offline in remote areas. It supports multiple video output options, including HDMI, USB-A, and Ethernet, allowing users to stream anywhere and view clear visuals on their preferred device.

Finally, the Live Deck 2 is powered by a 6200mAh lithium battery, offering up to 5 hours of operation on a single charge. Once depleted, it can be easily recharged using the micro USB port or a portable battery pack. This durable device is designed for longevity, making it a reliable companion for all your drone adventures.

Autel Robotics Live Deck 2 for Drones Features

  • 1080P/60FPS Video Stream
  • Three Auto-Switch Bands
  • 12km Image/Video Transmission Range
  • 5-Hour Battery Life
  • IP 43 Weather Resistance

Warranty Information

This used item has a FREE 1-year warranty. See details.

Key Features

  • Enhance your drone's capabilities with the Autel Robotics Live Deck 2 for seamless operations.
  • Experience extended drone flights with a 5-hour battery life for uninterrupted aerial missions.
  • Achieve reliable, long-range drone control with a transmission range of up to 12 kilometers.
  • The Live Deck 2 supports multiple EVO II drone models for versatile compatibility options.
  • Enjoy crystal-clear, real-time drone footage with 1080P/60FPS HDMI output for monitoring.
  • Rugged IP43 rated design ensures dust and water resistance for reliable drone performance.
