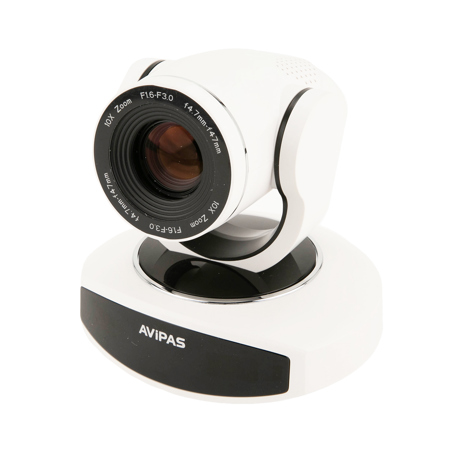

Used AViPAS AV-1081 Full HD Indoor/Outdoor HDMI PTZ Compact Camera with IP Live Streaming, 10x Optical Zoom, White

SKU: US1800414

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2020-11-11T15:06:11

Rated 5 out of 5

Great camera puts more expensive competitors to shame!

Love it! Fabulous camera for the money.

JONATHAN D.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

AViPAS AViPAS AV-1081 Specifications

Camera
  • Video System

    1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97

  • Sensor

    1/2.8", CMOS, Effective Pixel: 2.07MP, 16:9

  • Scanning Mode

    Progressive

  • Lens

    10x, f4.7mm - 47mm, F1.6 - F3.0

  • Digital Zoom

    5x

  • Minimal Illumination

    0.5 Lux (at F1.8, AGC ON)

  • Shutter Speed

    1/30s to 1/10000s

  • White Balance

    Manual, Auto, Indoor, Outdoor, One Push
    3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K

  • Digital Noise Reduction

    2D&3D Digital Noise Reduction

  • Focus

    Auto / Manual / One Push

  • Electronic Shutter

    Auto / Manual

  • Backlight Compensation

    Support

  • Video S/N

    >=55dB

  • WDR

    OFF/ Dynamic Level Adjustment

  • Video Adjustment

    Brightness/Color/Saturation/Contrast/Sharpness/B/W mode/Gamma curve

  • View Angle

    6.43 deg. (Tele), 60.9 deg. (Wide)

  • Vertical Rotation Range

    -30 deg. to +30 deg.

  • Horizontal Rotation Range

    +/-170 deg.

  • Pan Speed Range

    0.1 deg. to 60 deg. /s

  • Tilt Speed Range

    0.1 deg. to 30 deg. /s

  • H & V Flip Mount

    Support

  • Image Freeze

    Support

  • Number of Preset

    255

IPC Functions

Jump to...
  • Video Coding Standard

    H.265/H.264

  • Video Stream

    First stream, Second stream

  • First Stream Resolution

    1920x1080, 1280x720, 640x480

  • Second Stream Resolution

    320x180, 320x240, 640x360, 640x480, 1280x720, 1920x1080

  • Bit Rate Type

    Variable rate, Fixed rate

  • Frame Rate

    50Hz: 1fps - 25ps; 60Hz: 1fps - 30fps

  • Audio Encode Standard

    AAC/MP3/G.711A

Input / Output Interface

Jump to...
  • HD Output

    1x HDMI

  • Network Interface

    1x RJ45: 100M (10/100BASE-TX)

  • Audio Interface

    1-ch 3.5mm audio interface, Line In

  • Communication Interface

    1x RS-232 (Circuit)

  • Protocol

    VISCA/Pelco-D/Pelco-P

  • Baud Rate

    115200/9600/4800/2400bps

  • Power Jack

    Input AC 110V-AC220V; Output DC 12V/1.5A

General

Jump to...
  • Power Consumption

    12W

  • Input Voltage

    DC12V+/-10%

  • Current Consumption

    1.0A (Max)

  • Operating Temperature

    -10 to 50 deg. C (14 to 122 deg. F)

  • Storage Temperature

    -10 to 60 deg. C (14 to 140 deg. F)

  • MTBF

    >30000h

  • Dimensions

    6 x 6 x 5" (15.24 x 15.24 x 12.70cm)

  • Weight

    1.4kg (3.09 lbs)

About AViPAS AV-1081 Full HD Indoor/Outdoor HDMI PTZ Compact Camera - SKU#1800414

For professionals seeking a high-performance, versatile camera, the AViPAS AV-1081 Full HD Indoor/Outdoor HDMI PTZ Compact Camera is an exceptional choice. This compact camera is designed for indoor and outdoor use, offering full HD 1080p resolution and a 10x optical zoom, making it perfect for capturing high-quality images in a variety of settings.

The AV-1081 is equipped with advanced ISP processing algorithms, delivering vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.265/H.264 encoding, ensuring motion video remains fluent and clear even in less than ideal bandwidth conditions.

This camera employs a 1/2.8" high-quality CMOS sensor, offering a resolution of up to 1920x1080 with a frame rate of up to 60 fps. The 10x zoom lens provides an 83.7-degree wide view angle without distortion, and the leading auto-focus technology ensures fast, accurate, and stable focusing.

The AV-1081 stands out for its low noise and high SNR, thanks to the low-noise CMOS that effectively ensures high video signal-to-noise ratio. The advanced 2D/3D noise reduction technology further reduces noise while ensuring image sharpness.

The camera's quiet PTZ mechanism, powered by an accurate step driving motor, ensures the camera operates quietly and moves smoothly. It supports multiple video outputs, including HDMI, USB 2.0, HDBaseT, and LAN interfaces, and supports H.265/H.264 video compression.

The AV-1081 also features an audio input interface that supports various sampling rates and AAC, MP3, G.711A audio coding. It supports multiple network protocols, including ONVIF, RTSP, RTMP, and RTMP push mode, making it easy to link to streaming media servers.

With its low-power sleep function, the camera consumes less than 400mW in sleep mode. It supports multiple communication protocols, including VISCA, Pelco-D, and Pelco-P, and has an RS-232 cascade function for easy installation.

The AV-1081 can store up to 255 preset positions (10 presets by IR remote), making it ideal for a wide range of applications, including tele-education, lecture capture, webcasting, video conferencing, tele-training, tele-medicine, interrogation, and emergency command systems.

In summary, the AViPAS AV-1081 Full HD Indoor/Outdoor HDMI PTZ Compact Camera with IP Live Streaming and 10x Optical Zoom is a versatile, high-quality camera designed for professional use in a variety of settings.

AViPAS AV-1081 Full HD Indoor/Outdoor HDMI PTZ Compact Camera - SKU#1800414 Features

  • Elegant, compact design; super quiet and smooth pan/tilt mechanism
  • 1920 x 1080 high resolution output with a frame rate up to 60fps
  • 83.7 deg. wide-angle high-quality lens
  • High SNR of CMOS sensor combined with 2D&3D noise reduction algorithm
  • H.264/H.265 video compression
  • Low-power sleep function, lower than 0.4W
  • IP streaming & HDMI output
  • RS-232 (VISCA/ Pelco-D/ Pelco-P) and IR remote control

What's in the box:

  • AViPAS AV-1281 HDMI PoE PTZ Camera (White)
