Used BeachTek DXA-POCKET Compact Audio Adapter

SKU: US1979787 MFR: DXA-POCKET
$54.00
Earn VIP Reward Points

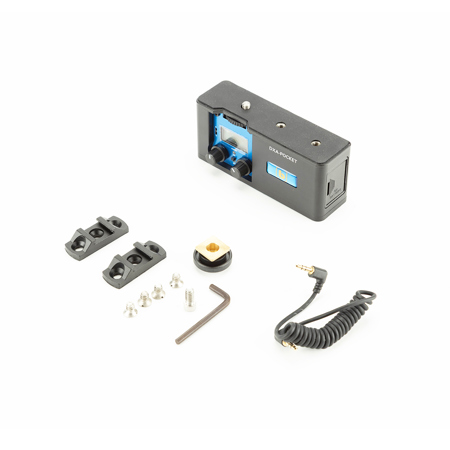

What`s in the box:

  • BeachTek DXA-POCKET Audio Adapter
  • 3.5mm to 3.5mm Output Cable
  • Brass Mounting Foot/Bolt/Allen Wrench
See more

Key Features

  • Removable top shoe
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Calculate Shipping

See Options

1

Add Adorama Protect:

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

BeachTek DXA-POCKET Compact Audio Adapter Specifications

  • Input Level

    Typically -60 to -30 dBu

  • Output Level

    -25 dBu at 0 dB on the VU meter (A/B switch set to A)
    -35 dBu at 0 dB on the VU meter (A/B switch set to B)

  • Inputs Connector

    2x mono mini-jack
    stereo mini-jack

  • Output Connector

    Unbalanced stereo mini-jack

  • Gain

    +30 dB

  • Frequency Response

    20 Hz to 20 kHz (+/-0.5 dB)

  • Total Harmonic Distortion (THD)

    Less than 0.01% at 1 kHz, -30 dBu input

  • Signal to Noise Ratio

    86 dB at 1 kHz, -30 dBu input

  • Battery Type

    9 V alkaline or lithium battery

  • Battery Duration

    Over 10 hours typical

  • Dimensions (L x W x H)

    5 x 2 x 2.25" (127 x 50.8 x 57.15 mm)

  • Weight

    10 oz (0.28 kg)

About BeachTek DXA-POCKET Compact Audio Adapter

The BeachTek DXA-POCKET Compact Audio Adapter is a two-channel, compact audio adapter for camcorders or DSLR cameras. It is ideal for the Blackmagic Pocket Cinema Camera. This adapter is designed to easily attach wireless mics and small, self-powered, camera mounted microphones such as the popular RODE VideoMics that have unbalanced mini-plug connectors.

It is very easy to set up and use. The inputs provide for two mono mics or one stereo mic to be easily connected. Exceptionally low-noise preamplifiers provide very clean, wide bandwidth audio for full rich sound. This eliminates the need to rely on the camera preamplifiers as they are rather noisy at high gain. Dual trim controls allow you to adjust the signal levels independently - you can even set two different levels for a mono mic for both channels giving you a backup in case one channel is blown out. The bright, easy to see VU meters make it easy to set the precise recording levels for optimum results.

A really cool feature of the rugged extruded aluminum chassis is an integrated mounting shoe which can be used to either attach a wireless receiver or act as a cushioned hand grip with the supplied rubber insert. The handgrip makes hand holding small cameras much more secure and comfortable. The compact size of the adapter fits neatly under or over the camera for flexibility. Also included are two solid aluminum mounting shoes for the camera and adapter to give you plenty of mounting options. No other device gives you as many features for great sound and mounting configurations in such a small package as the amazing DXA-POCKET.

BeachTek DXA-POCKET Compact Audio Adapter Features

  • Exceptionally low noise circuitry for very clean audio
  • Wide bandwidth full rich sound
  • Easy to read level meters indicate proper signal levels at a glance
  • Adjusts signal levels independently on each channel
  • Extruded aluminum chassis
  • Integrated front mounting shoe / grip
  • Removable top shoe
  • Mounts under or over the camera

Warranty Information

This used item has a FREE 90-day warranty. See details.
