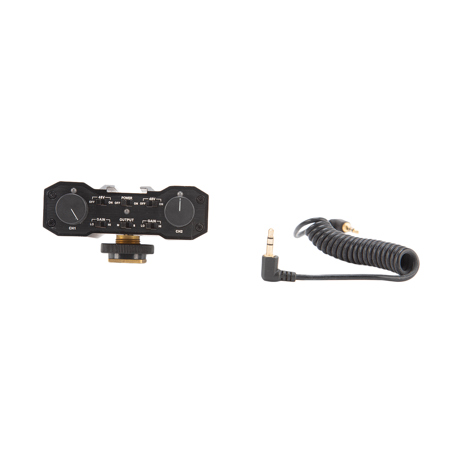

Used BeachTek DXA-RED 2-Channel Preamplifier with Phantom Powered XLR Inputs for RED DSMC2 Cameras

SKU: US1836007

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2020-12-21T07:27:29

Rated 5 out of 5

Awesome tool

Honestly this is great. Easy to use and the audio is awesome. So happy I got it.

Thor M.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

BeachTek DXA-RED Specifications

  • Inputs

    2 x 3-Pin XLR Female (Balanced)

  • Outputs

    2 x 1/8" / 3.5 mm TRS

  • Gain

    Main Out: 40 dB (Lo Gain), 60 dB (Hi Gain)
    Aux Out: 20 dB (Lo Gain), 40 dB (Hi Gain)

  • Maximum Input Level

    Lo Gain: -20 dBu
    Hi Gain: -40 dBu

  • Output Clipping Level

    Main Out: +20 dBu
    Aux Out: 0 dBu

  • Frequency Response

    20 Hz to 20 kHz (+/-0.5 dB)

  • Dynamic Range

    94 dB

  • THD +N

    Lo Gain: 0.01% (+4 dBu Output, 1 kHz)
    Hi Gain: 0.09% (+4 dBu Output, 1 kHz)

  • Channel Separation

    Lo Gain: 80 dB (+4 dBu Output, 1 kHz)
    Hi Gain: 68 dB (+4 dBu Output, 1 kHz)

  • Phantom Power

    48 VDC

  • Indicators

    Power
    Level (Green = -40 to -4 dBu, Red = Over -4 dBu)

  • Power Requirements

    5 to 18 V, 120 mA via 2-Pin OB LEMO Jack (Pin 1 is Negative, Pin 2 is Positive) or 5 V, 800 mA via Micro-USB Jack

  • Dimensions (WxDxH)

    3.3 x 3.0 x 1.1" (83.82 x 76.20 x 27.94mm)

  • Weight

    257g (9.07 oz)

About BeachTek DXA-RED 2-Channel Preamplifier with Phantom Powered XLR Inputs for RED DSMC2 Cameras

Overhaul your audio recording experience with the DXA-RED 2-Channel Preamplifier, designed specifically for RED DSMC2 cameras. This compact, easily mountable device is the new standard for capturing professional-grade audio on RED cameras, transforming your filmmaking process with its high-quality performance.

The DXA-RED Preamplifier features dual XLR inputs, powered by phantom power, ensuring low-noise preamplification for crystal clear sound capture. This makes it an indispensable tool for filmmakers, videographers, and multimedia professionals who demand superior audio quality.

Despite its compact size, this 2-channel preamplifier doesn't compromise on functionality. Its user-friendly layout and features make it easy to operate, even for those new to audio equipment.

While it's optimized for RED DSMC2 cameras, the DXA-RED Preamplifier's versatility extends to other cinema and DSLR cameras equipped with a 3.5mm mic jack. This means you can seamlessly integrate this device into your existing setup, enhancing the audio quality of your recordings across various camera models.

In summary, the DXA-RED 2-Channel Preamplifier with Phantom Powered XLR Inputs is a compact yet powerful tool that elevates your audio recording capabilities, delivering professional-grade sound quality for your RED DSMC2 and other compatible cameras.

BeachTek DXA-RED 2-Channel Preamplifier with Phantom Powered XLR Inputs for RED DSMC2 Cameras Features

  • Phantom Power
  • Dual Gain
  • Good/Over LED Indicators
  • Versatile Mounting Options
  • Low-Noise Preamplifier
  • Mounting Shoes
  • Tiny and Light Weight
  • 2 x XLR Inputs
  • Bracketing
  • 2-pin LEMO or USB Power
  • Main and Aux 3.5mm Outputs
  • Quick Release Mount

What's in the box:

  • Beachtek DXA-RED 2-Channel Preamplifier
  • Brass Mounting Foot
  • Bolt
  • SC35 Cable Note: Missing BT-PWR D-Tap to 2-Pin LEMO Power Cable for DXA-ALEXA / DXA-CINE; Micro-USB Power Cable; V-CLIK Quick Release Plate for Camera Accessories; Allen Wrench **
