Mic: -3 dBu
Line: +14 dBu
Nominal microphone levels
20 Hz to 20 KHz, +/-0.5 dB
less than 0.01% @ 1 kHz, -30 dBu input
85 dB @ 1 kHz, -30 dBu input
LO Gain: 0 dB
HI Gain: 15 dB
Dual regulated 12 or 48 V power supplies
-18 dB to +3 dB in 3 dB increments
9 V alkaline or lithium battery
Alkaline: 3 hours typical (no phantom)
Lithium: 8 hours typical (no phantom)
6" x 3.75" x 1.75" / 152.4 x 95.25 x 44.45 mm
18 oz / 510.29 g

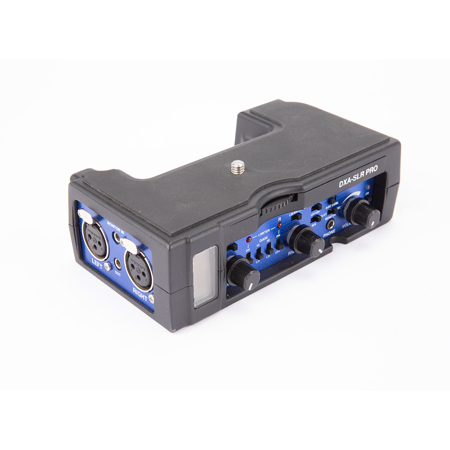

The BeachTek DxA-SLR PRO HDSLR Audio Adapter is designed to enhance audio quality with virtually any HDSLR camera by providing high quality xLR inputs, AGC disabling, built-in limiting, headphone monitoring, comprehensive metering and more. Connect up to two microphones and provide 12 or 48 V phantom power to professional condenser microphones.
Each channel features a gain control switch with 0 and 15 dB settings and the low-noise preamplifiers and throughput ensure pristine audio quality, wide frequency response and detail. The AGC (Automatic Gain Control) disabling feature eliminates audio level fluctuations that can ruin an otherwise good take. The unit is built tough, mounts to the base of HDSLR cameras and its rear mounted VU meter displays level in 3 dB increments.
