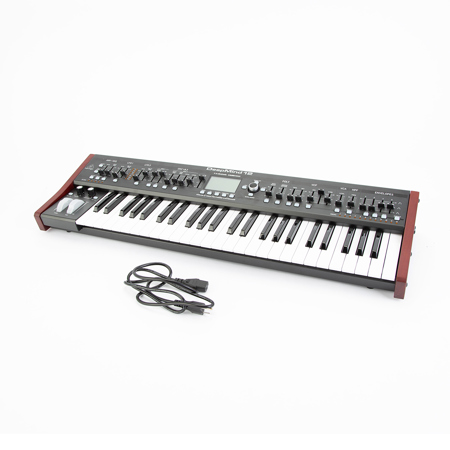

Used Behringer DeepMind 12 True Analog 12-Voice Polyphonic Synthesizer

SKU: US1941925 MFR: 000-AC502-00010

This item is no longer available.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Behringer DeepMind 12 Specifications

  • Display

    Backlit LCD

  • Main Menus

    PROG, FX, GLOBAL, COMPARE, WRITE

  • Edit Menus

    ARP/SEQ, LFOs, OSCs, POLY, VCF, VCA, VCA ENV, VCF ENV, MOD ENV, MOD MATRIX

  • Presets

    8 banks each with 128 programs

  • Fader Modes

    MIDI CC, NRPN, OFF

  • Controls: Keyboard

    49 semi-weighted, full-size keys

  • Controls: Keyboard sensing

    Aftertouch and note on/off velocity

  • Controls: Encoders

    1 rotary knob

  • Controls: Faders

    26 slide faders (35 mm)

  • Controls: Switches

    33 backlit switches

  • Controls: Modulation

    Free moving wheel

  • Controls: Pitch Bend

    Spring loaded wheel

  • Connectivity: MIDI In/Out/Thru

    5-pin DIN / 16 channels

  • Connectivity: Pedal/CV

    1/4" TRS

  • Connectivity: Sustain

    1/4" TS

  • Connectivity: USB

    USB 2.0, type B

  • Connectivity: Output L/R

    1/4" TRS, balanced, max. +18 dBu

  • Connectivity: Headphones

    1/4" TRS, unbalanced, max. +21 dBu

  • Synthesizer Architecture: No. of voices

    12 analog

  • Synthesizer Architecture: OSC

    2 per voice

  • Synthesizer Architecture: LFO

    2 per voice

  • Synthesizer Architecture: VCF

    2-pole / 4-pole

  • Synthesizer Architecture: HPF

    6 dB per octave (Common to all voices)

  • Synthesizer Architecture: Envelopes

    VCA, VCF, MOD

  • Synthesizer Architecture: Mod Matrix

    22 sources / 130 destinations

  • Digital Effects: FX Slots

    4 per Program

  • Digital Effects: FX Types

    34 Algorithms

  • Digital Effects: Internal effects eng.

    1 true stereo SHARC DSP

  • Digital Effects:Effects sig. processing

    32/40-bit floating point at 48 kHz

  • Digital Effects: A/D-D/A performance

    24-bit 48 kHz, 114 dB dynamic range

  • Digital Effects: Bypass

    True hard bypass

  • USB Type

    Class compliant USB 2.0, type B

  • Supported operating systems

    Windows 7 or higher
    Mac OS X 10.6.8 or higher
    iOS 8 or higher (iPad)
    Android 6.0 or higher

  • Antenna

    Internal

  • Access Point, number of clients

    Max. 1

  • IEEE 802.11 b/g standard

    2.4 GHz

  • Frequency Range

    2,412 - 2,462 MHz

  • WLAN channels

    11

  • Max Output Power

    16 dBm (802.11 b) /20 dBm (802.11 g) / 20 dbm (802.11 n)

  • Power Mains connector

    Standard IEC receptacle

  • Power consumption

    55 W max.

  • Fuse

    T3.15AH250 V

  • Internal Switch-mode PSU

    Autorange 100-240 V, (50/60 Hz)

  • Operating temperature range

    5 to 40deg. C (41 to 104deg. F)

17 Accessories for Behringer DeepMind 12 True Analog 12-Voice Polyphonic Synthesizer

  • All Accessories (17)
  • Stands (4)
  • Headphones (1)
  • Keyboard Benches (1)
  • Controllers (5)
  • Bags & Cases (1)
  • Cables & Adapters (3)
  • Amplifiers (2)

About Behringer DeepMind 12 True Analog 12-Voice Polyphonic Synthesizer

Become a master of sound with the DeepMind 12 True Analog 12-Voice Polyphonic Synthesizer, a sophisticated and professional-grade musical instrument designed for the innovative musician. This high-quality synthesizer, created by the renowned brand Behringer, is equipped with advanced features that allow you to shape and customize your sounds with precision and ease.

The DeepMind 12 is a true analog synthesizer, offering 12 authentic voices for a rich, full-bodied sound experience. It boasts 4 FX engines, 2 OSCs, and LFOs per voice, 3 ADSR Generators, an 8-Channel Modulation Matrix, and a 32-Step Control Sequencer. This combination of features allows for the creation of a wide array of sounds, from the classic to the avant-garde.

This synthesizer also features a tablet remote control and built-in Wi-Fi, providing you with the flexibility to control your sound from a distance. The 49 semi-weighted full-size keys offer velocity sensitivity and after-touch, ensuring a responsive and expressive playing experience.

The DeepMind 12's pure analog signal path is based on legendary VCF and VCA designs, with OSC 1 generating sawtooth and square/pulse waveforms with pulse width modulation, and OSC 2 generating square/pulse waveforms with tone modulation. This allows for a wide range of sound generation options, from the classic to the unique.

With its flexible 8-channel modulation matrix, the DeepMind 12 offers over 130 destinations, including effects parameters. This, combined with its 32-step control sequencer with adjustable slew rate and MIDI sync, allows for a high level of sound customization.

The DeepMind 12 is not just a synthesizer, but a powerful tool for musicians and producers. Whether you're creating music for a professional production or simply exploring your own sound, the DeepMind 12 True Analog 12-Voice Polyphonic Synthesizer offers the quality, versatility, and control you need.

Behringer DeepMind 12 True Analog 12-Voice Polyphonic Synthesizer Features

  • Professional-grade 12-voice true analog polyphonic synthesizer for rich, full-bodied sound
  • Equipped with 4 FX engines, 2 OSCs, and LFOs per voice for a wide range of sound generation
  • Features 3 ADSR Generators, 8-Channel Modulation Matrix, and 32-Step Control Sequencer for advanced sound customization
  • Includes tablet remote control and built-in Wi-Fi for flexible, distant sound control
  • 49 semi-weighted full-size keys with velocity sensitivity and after-touch for a responsive and expressive playing experience
  • Pure analog signal path based on legendary VCF and VCA designs for a unique and fresh character sound

Warranty Information

This used item has a FREE 90-day warranty. See details.

Key Features

  • Unleash your sound design potential with DeepMind 12's true analog 12-voice polyphony.
  • Craft rich, evolving textures using the extensive modulation matrix for unique synth sounds.
  • Explore a vast sonic palette with 34 digital effects algorithms, adding depth to your music.
  • Seamless workflow: easily integrate with DAWs via USB for recording and MIDI control.
  • The semi-weighted keyboard with aftertouch offers expressive control for dynamic performances.
  • Enjoy exceptional build quality and reliability in this powerful, affordable analog synthesizer.
