1x 2-Way Loudspeaker
3 (2x Mono, 1x Stereo)
Total: 1x 1000 W
HF: Class-AB
LF: Class-D
Speaker: Bass-Reflex
1x 1.35" (34.29mm) Horn-Loaded Compression Driver
1x 10" (254mm) Woofer
Active
1x LF Shelf: +/-12 dB at 80 Hz
1x MF Notch/Peak: +/-12 dB at 2.5 kHz
1x HF Shelf: +/-12 dB at 12 kHz
4x Presets (Factory)
1x High-Pass: 80 Hz, 100 Hz, 120 Hz, 150 Hz
55 Hz to 19 kHz +/-3 dB
132 dB
90 Degree x 60 Degree
-26 dBu
0 dBu
XLR Mic Input:
20 Kilohms (Balanced)
10 Kilohms (Unbalanced)
1/4" TRS Line Input:
20 Kilohms (Balanced)
10 Kilohms (Unbalanced)
XLR Line Output:
200 Ohms (Balanced)
100 Kilohms (Unbalanced)
AC Fuse, Open Circuit, Output Limiter, Short Circuit, Thermal
2x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Mic/Line Input
1x 1/8" (3.5mm) 3-Pin Female Unbalanced Line/Aux Input
Bluetooth
4.2
A2DP 1.2
79
2402 to 2480 MHz
10 dBm
49.2' (15m)
Factory Selectable: 110 VAC, 60 Hz (T 3.15 A H 250 V)
75 W (1/8 Power)
1x IEC Input
1x Handle (Top)
1x Handle (Side)
1.38" (35mm)
Fan
20.51 x 11.89 x 12.28" (521 x 302 x 312mm)
29.3 lb (13.3kg)

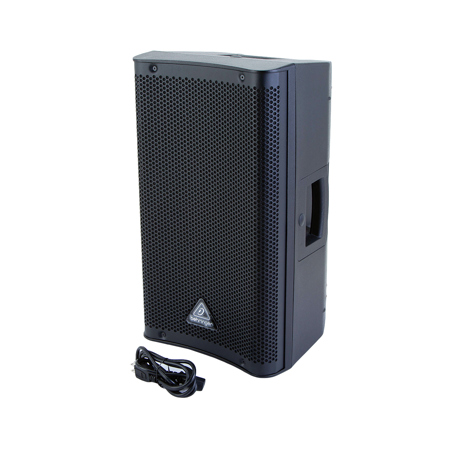

Discover the DR110DSP Active 1000W 10" PA Speaker System, a versatile and powerful audio solution designed for live sound production. This high-quality, durable speaker system is equipped with a 2-channel mixer and an integrated Digital Signal Processing (DSP) feature, offering professional sound optimization and equalization.
The DR110DSP is more than just a PA speaker system; it's a high-powered, 1000-watt sound reinforcement tool that excels in both live and playback applications. Despite its compact and lightweight design, this system delivers exceptional sound quality, even at extreme sound pressure levels, making it ideal for large events and venues.
The built-in DSP function not only ensures superior EQ and system control but also provides speaker protection, enhancing the longevity of your equipment. The system also includes a built-in Bluetooth receiver, allowing for seamless wireless connectivity.
The 2-channel mixer comes with individual Mic/Line inputs and level controls, offering you complete control over your sound production. This feature makes the DR110DSP a versatile choice for a variety of audio setups.
Powered by revolutionary Class-D amplifier technology, the DR110DSP delivers enormous power and incredible sonic performance, all in a super lightweight design. The system also features an extremely powerful 10'' long-excursion driver, providing incredibly deep bass and acoustic power.
In summary, the DR110DSP Active 1000W 10" PA Speaker System with DSP and 2-Channel Mixer is a durable, high-quality, and powerful audio solution that offers portability and versatility for all your live sound production needs.
