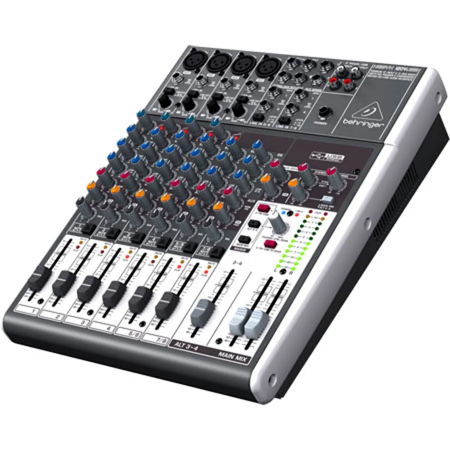

Used Behringer XENYX 1204USB Small Format Mixer with XENYX Mic Preamps, 12 Input Channels, 10Hz to 200kHz Frequency Response

SKU: US2076791 MFR: 0601-ACM86-US1
$146.00
New: $209.00
Used Savings: $63 (30%)
Earn VIP Reward Points

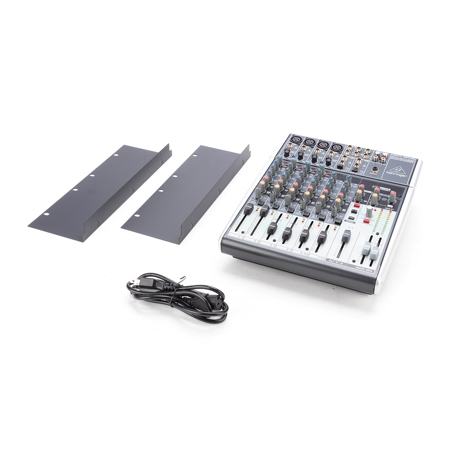

What`s in the box:

    See more

    Key Features

    • Achieve pristine audio quality with XENYX mic preamps, perfect for studio recording.
    • Seamless USB connectivity for easy integration with your computer audio setup.
    • Enjoy low latency performance, ideal for live streaming and podcasting sessions.
    • Shape your sound with precise EQ controls, enhancing vocals & instruments.
    • Versatile 12-input channel mixer accommodates mics, instruments, and more.
    • Compact design ensures this small format mixer fits any desktop or studio space.
    See More Product Details

    INCLUDES FREE WARRANTY

    • This used item comes with a free 1-year warranty. ?
    Overview
    Compare
    Accessories
    Specs
    Protection

    Reviews about this item

    Review Summary

    2019-01-29T16:40:35

    Rated 5 out of 5

    perfect! I I love it, thank you!

    perfect! I I love it, thank you!

    Khanh D.

    2018-03-15T08:59:12

    Rated 4 out of 5

    Perfect Bundle for your Next Gig

    I've done researched all over for the right Mixing board for my Podcast, something that gives me ample XLR Mic inputs and TSR connections for Cell Phone, PC and outputs to Monitor Speakers and my H4n Recorder at the same time. I enjoy the feel of the Sliders and knobs to fine tune each Co-Host mic independently. Newer QX versions have built-in effects but with mostly recording Speech and playing back music from Phone/ PC, this was perfect for the price. The bundle included 2- 25ft XLR Cables that are thick and durable, we used it for a LIVE Music gig for a Wrestling show and it reached the speaker, round the venue and to my position just near the curtain, no feedback or latency experience. The Mono Y Cable is on Back order at the time of this writing so can't give an opinion on it but I assume it'll work like any other Y-Cable in the market. The price and accessories is what drove me to pick this up for the same price that the Mixer would have cost alone, I got a steal with the included Cables and Y-Cable. FREE Shipping and no taxes are worth mentioning as well!

    Jimmy B.

    Behringer XENYX 1204USB Specifications

    Mono Inputs

    Mono Inputs

    Jump to...
    • Microphone Inputs

      Type: XLR connector, electronically balanced, discrete input circuit (XENYX Mic Preamp)

    • Mic E.I.N.1 (20 Hz - 20 kHz)

      Source resistance:
      -134 dB 135.7 dB A-weighted @ 0 Ohm
      -131 dB 133.3 dB A-weighted @ 50 Ohm
      -129 dB 130.5 dB A-weighted @ 150 Ohm

      Frequency response:
      <10 Hz - 150 kHz (-1 dB)
      <10 Hz - 200 kHz (-3 dB)

      Gain range: +10 dB to +60 dB
      Max. input level: +12 dBu @ +10 dB GAIN

    • Microphone Inputs (Contd.)

      Impedance: 2.6 k Ohms balanced
      Signal-to-noise ratio: 110 dB A-weighted (0 dBu In @ +22 dB GAIN)
      Distortion (THD + N): 0.005% / 0.004% A-weighted

    Line Input

    Jump to...
    • Type

      1/4" TRS jack, electronically balanced

    • Impedance

      20 k Ohms balanced, 10 k Ohms unbalanced

    • Gain range

      -10 dB to +40 dB

    • Max. input level

      30 dBu

    Frequency Response

    Jump to...
    • Frequency Response

      (Mic In - Main Out):
      <10 Hz - 90 kHz: +0 dB / -1 dB
      <10 Hz - 160 kHz: +0 dB / -3 dB

    Stereo Inputs

    Jump to...
    • Type

      2x 1/4" TRS jack, balanced

    • Impedance

      20 k Ohms balanced, 10 k Ohms unbalanced

    • Gain range

      -20 dB to +20 dB

    • Max. input level

      +22 dBu

    CD/Tape In

    Jump to...
    • Type

      RCA connector

    • Impedance

      10 k Ohms

    • Max. input level

      +22 dBu

    Equalizer

    Jump to...
    • Low

      80 Hz / +/-15 dB

    • Mid

      2.5 kHz / +/-15 dB

    • High

      12 kHz / +/-15 dB

    AUX Sends

    Jump to...
    • Type

      1/4" mono jack, unbalanced

    • Impedance

      120 Ohms

    • Max. output level

      +22 dBu

    AUX Returns

    Jump to...
    • Type

      1/4" TRS connector, balanced

    • Impedance

      20 k Ohms balanced, 10 k Ohms unbalanced

    • Max. input level

      +22 dBu

    Main Outputs

    Jump to...
    • Type

      XLR, electronically balanced

    • Impedance

      240 Ohms balanced, 120 Ohms balanced

    • Max. output level

      +28 dBu

    Control Room Output

    Jump to...
    • Type

      1/4" TS connector, unbalanced

    • Impedance

      120 Ohms

    • Max. output level

      +22 dBu

    Phones Output

    Jump to...
    • Type

      1/4" TRS jack, unbalanced

    • Max. output level

      +19 dBu / 150 Ohms (+25 dBm)

    CD/Tape Out

    Jump to...
    • Type

      RCA connector

    • Impedance

      1 k Ohms

    • Max. output level

      +22 dBu

    Main Mix System Data

    Jump to...
    • Main Mix System Data

      Noise:
      Main mix @ -Infinite, channel fader @ -Infinite: -105 dB / -108 dB A weighted
      Main mix @ 0 dB, channel fader @ -Infinite: -95 dB / -97 dB A Weighted
      Main mix @ 0 dB, channel fader @ 0 dB: -82.5 dB / -85 dB A weighted

    Power Supply

    Jump to...
    • Mains voltage

      100 - 240 V-, 50/60 Hz

    • Power consumption

      40W

    • Fuse

      T 1.6 A H 250 V (100 - 230 V, 50/60 Hz)

    • Mains connector

      Standard IEC receptacle

    • Connecter

      Type-B

    • Converter

      16-bit

    • Sample Rate

      48 kHz

    General

    Jump to...
    • Color

      Black

    • Max I/O Capacity

      12x Input / 4x Output

    • Number of Analog Input Channels

      8x (4x Mono / 2x Stereo)

    • Number of Mic Preamps

      4

    • Dimensions (H x W x D)

      3.8 x 10.6 x 12.9" (97 x 270 x 328mm)

    • Weight

      8.4 lbs (3.8kg)

    11 Accessories for Behringer XENYX 1204USB Small Format Mixer with XENYX Mic Preamps, 12 Input Channels, 10Hz to 200kHz Frequency Response

    • All Accessories (11)
    • Cables & Adapters (8)
    • Headphones (1)
    • Gaffer Tape (1)
    • Cleaning Accessories (1)

    About Behringer XENYX 1204USB Small Format Mixer with XENYX Mic Preamps, 12 Input Channels, 10Hz to 200kHz Frequency Response

    Explore the world of professional audio mixing with the Behringer RX-1202FX, a compact yet powerful 19-inch rack-mountable audio mixer. This high-quality mixer is equipped with eight mono and two stereo channels, culminating in a total of twelve versatile input channels.

    Each of the mono channels, from 1 through 8, boasts a 1/4" line and balanced XLR microphone inputs, providing you with the flexibility to handle a variety of audio sources. The stereo channels, 9/10 and 11/12, are paired with stereo 1/4" phone line connectors, further enhancing the mixer's adaptability.

    Every channel on the Behringer RX-1202FX features a 2-band EQ with gain and level control, allowing you to fine-tune your sound to perfection. The advanced on-board effect processor offers delay, chorus, and reverb effects, enabling you to add depth and dimension to your audio output.

    The output section of this durable mixer includes stereo balanced XLR and 1/4" phone outputs, ensuring high-quality sound transmission. With its professional-grade features and versatile design, the Behringer RX-1202FX is an ideal choice for a range of applications, from keyboard mixing to small sound reinforcement installations. Experience the difference in your audio production with this advanced, feature-rich mixer.

    Behringer XENYX 1204USB Small Format Mixer with XENYX Mic Preamps, 12 Input Channels, 10Hz to 200kHz Frequency Response Features

    • Premium ultra-low noise, high headroom analog mixer
    • 4 state-of-the-art XENYX, phantom-powered Mic Preamps comparable to stand-alone boutique preamps
    • 4 studio-grade compressors with super-easy "one-knob" functionality and control LED for professional vocal and instrumental sound
    • Neo-classic "British" 3-band EQs for warm and musical sound
    • Built-in stereo USB/Audio Interface to connect directly to your computer. Free audio recording, editing and podcasting software plus 150 instrument/effect plug-ins and ultra-low latency driver downloadable at www.Behringer.com
    • 2 aux sends per channel: 1 pre fader for monitoring applications, 1 post fader for external FX devices
    • Clip LEDs and mute/alt 3-4 function on all channels
    • 2 subgroups with separate outputs for added routing flexibility
    • 2 multi-functional stereo aux returns with flexible routing
    • Balanced main mix outputs with gold-plated XLR connectors plus separate control room, headphones and stereo tape outputs
    • Control room/phones outputs with multi-input source matrix
    • Long-wearing 60-mm logarithmic-taper faders and sealed rotary controls
    • Planet Earth switching power supply for maximum flexibility (100 - 240 V), noise-free audio, superior transient response plus low power consumption for energy saving
    • Rack mount brackets included for ultimate flexibility
    • High-quality components and exceptionally rugged construction ensure long life
