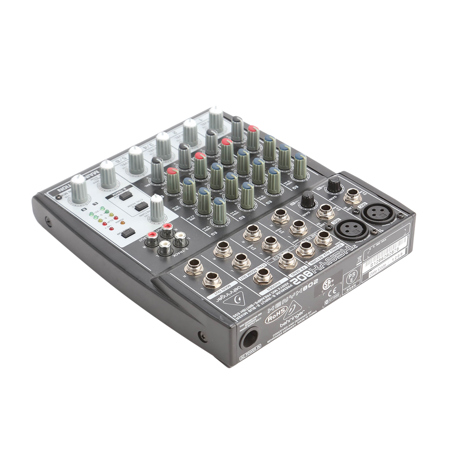

Behringer XENYX 802 Small Format Mixer - Gray SKU#1776519

Picture does not represent the actual item
See what's in the box

See all Behringer items

Used Behringer XENYX 802 Small Format Mixer with XENYX Mic Preamps, 8 Input Channels,10Hz to 20kHz Frequency Response - Grey

SKU: US1776519
(1)

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
Behringer U-PHORIA STUDIO Complete Recording/Podcasting Bundle with UM2 USB Audio Interface, Condenser Microphone and Studio Headphones
undefined undefined: Picture 1 regular
Behringer U-Phoria Studio Pro Complete Recording Bundle with UMC202HD USB Audio Interface
undefined undefined: Picture 1 regular
Behringer U-Phoria UMC 22 Audiophile 2x2 USB Audio Interface with MIDAS Mic Preamplifier - With 6' 8mm XLR Microphone Cable
undefined undefined: Picture 1 regular
Behringer RD-8 MKII Rhythm Designer Classic Analog Drum Machine
undefined undefined: Picture 1 regular
Behringer ULTRA-DI PRO DI4800A Professional 4-Channel Active DI-Box
undefined undefined: Picture 1 regular
Behringer XENYX 1202SFX Premium Analog 12-Input Mixer with USB Streaming Interface
undefined undefined: Picture 1 regular
Behringer Ultrazone ZMX8210 V2 Professional 8-Channel 3-Bus Mic/Line Zone Mixer
undefined undefined: Picture 1 regular
Behringer C-2 Dark Edition Matched Studio Condenser Microphones, Black, Pair
undefined undefined: Picture 1 regular
Behringer U-Phoria Studio Pro Complete Recording Bundle with UMC202HD USB Audio Interface - With 20' 6mm Rubber XLR Microphone Cable, On-Stage MBS5000 Broadcast/Webcast Boom Arm with XLR Cable
undefined undefined: Picture 1 regular
Behringer Ultravoice UV1 Single-Channel Audiophile Microphone Preamplifier with USB Audio Interface
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2017-04-04T11:33:18

Rated 4 out of 5

small format mixer

The xenyx802 works well at a very cost effective price. Would be even better if it had a more capable VU meter and a main mix slide pot.

Charles M.

Behringer XENYX 802 Small Format Mixer - Gray SKU#1776519 Specifications

  • Total Number Of Inputs

    8 Inputs

  • Mic/Line Inputs

    2 Mic: 3-pin XLR
    6 Line: 1/4" TRS Phone

  • Stereo Line Inputs

    2 Stereo: L/R Paired 1/4" TRS Phone channels 3/4 and 5/6

  • AUX Sends

    Single Stereo 1/4" Phone

  • AUX Returns

    Stereo L/R Paired 1/4" Phone

  • BUS (Group) Outputs

    Stereo Main Only: L/R 1/4" TRS Phone

  • 2 Trk Master I/O

    CD/Tape - Input: L/R RCA Phono
    Output: L/R RCA Phono

  • Monitor Outputs

    Phones: 1/4" Stereo

  • EQ Section

    Low: 80Hz +/- 15dB
    High: 12kHz +/- 15dB

  • Channel Level Control

    Rotary Controls

  • Phantom Power

    +48V Phantom

  • Metering

    Stereo: 4-segment Peak LED meters

  • Frequency Response

    10Hz to 20kHz (-3dB)

  • Signal-to-Noise Ratio

    110dB / 112dB A-weighted

  • Total Harmonic Distortion (THD)

    0.005% / 0.004% A-weighted

  • Power Supply

    13W
    120V, 60Hz, MXUL5 adapter

  • Dimensions (H x W x D)

    1.85 x 7.44 x 8.66" (47 x 189 x 220mm)

  • Weight

    2.21 lbs (1 kg)

About Behringer XENYX 802 Small Format Mixer - Gray SKU#1776519

Behringer XENYX 802 Small Format Mixer - Gray SKU#1776519 Features

  • Premium ultra-low noise, high headroom analog mixer
  • 2 state-of-the-art XENYX Mic Preamps comparable to stand-alone boutique preamps
  • Neo-classic "British" 3-band EQs for warm and musical sound
  • 1 post fader FX send per channel for external FX devices
  • 1 stereo aux return for FX applications or as separate stereo input
  • Main mix outputs plus separate control room, phones and stereo CD/tape outputs
  • CD/tape inputs assignable to main mix or control room/phones outputs
  • High-quality components and exceptionally rugged construction ensure long life

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Behringer XENYX 802 Small Format Mixer
  • Item Note: Missing Power Supply
