BirdDog Full NDI Specifications

  • Image Sensor

    1/2.86" CMOS 2.2MP

  • Lens

    5.2-104mm

  • Optical Zoom

    20x

  • Digital Zoom

    16x

  • Horizontal angle of view

    55.8 Degree (W)-3.2 Degree (T)

  • Aperture

    F1.5 (W) - F3.0 (T)

  • Minimum Illumination

    Color: 0.5 lux

  • Shutter Speed

    1/1 - 1/10000s

  • Filter Ring

    49mm

  • Focus

    Auto, Push, Manual

  • White balance

    Auto, Indoor, Outdoor, Manual, OPW, ATW, Temp (Kelvin)

  • Exposure

    Auto, Manual, Shutter/Iris Priority

  • Backlight Compensation

    Yes

Mechanical

Jump to...
  • Pan Movement

    Horizontal: +/-175 Degree (Zoom Adaptive Speed Range: 0.5 Degree -100 Degree/s)

  • Tilt Movement

    Vertical: +90 Degree to -30 Degree (Zoom Adaptive Speed Range: 0.05 Degree -72 Degree/s)

  • Preset Positions

    128 (Speed adjustable: Up to 150 Degree fs)

  • Preset Speed

    0-5 Level Adjustable

  • Environmental

    Indoor

  • Operating Temperature

    14 - 122 Degree F (-10 - +50 Degree C)

  • Operating Humidity

    <=80%

  • Operating Noise

    Max 41dB at full speed pan

  • Tally display

    Bi Color Full overhead and rear (w/included 0-9 number silicon plugs)

Onboard Display

Jump to...
  • Onboard OLED display

    5-line, RGB Color, Graphical

Video Interface

Jump to...
  • Video Output

    NDI/SDI/HDMI/USB2.0(UVC)

  • Video Format support

    1080p 60, 59.94, 50, 29.97, 25 - 1080i 60, 59.94, 50 - 720p 60, 59.94, 50

  • Audio I/O (via USB breakout cable)

    Limited Resolution support over USB: 3.5mm Audio In (Stereo)- 3.5mm Audio Out (Stereo) - (NDI, SDI, and HDMI only)

Control Interface

Jump to...
  • IP Control

    NDI Control (auto configuring), VISCA IP

  • Serial PTZ control

    1x RJ45: RS232/RS422

  • Serial Control Protocol

    VISCA/PELCO D

  • Software control

    Included Cam Control (Win 10.+) Realtime subject motion tracking control (AI)

Network

Jump to...
  • Video Compression

    Full NDI - i-frame high quality low latency NDI for production
    h.264 long-GOP (Limited resolution support)

  • Web Control Interface

    Full control via Web/Mobixle UI including Scene presets

  • Power Input

    12v DC, PoE+ (IEEE 802.3at)

Physical

Jump to...
  • Color

    Black

  • Dimensions

    5.7 x 5.98 x 6.73" (145 x 152 x 171mm)

  • Weight

    2.2 lbs (1kg)

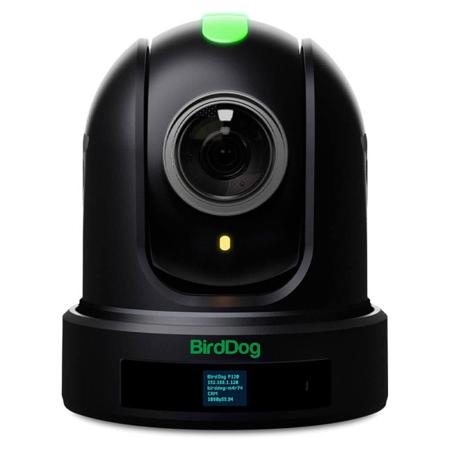

About BirdDog P120 2.1MP 1080p Full NDI 20x PTZ Camera - Black SKU#1600513

It's time to elevate your surveillance and security setup with the P120 Full HD Full NDI 20x PTZ Camera, a high-tech and advanced piece of equipment designed for optimal performance and flexibility. This state-of-the-art camera is equipped with a Sony Exmor R back-illuminated sensor and BirdDog's custom NDI silicon, ensuring superior image quality even in low light conditions.

The P120 camera boasts a high resolution of Full HD 1920x1080, providing crisp and clear images. Its 20x optical zoom capability makes it a versatile choice for various surveillance and monitoring applications, from small studios to larger areas with longer distance requirements.

This innovative camera supports Full NDI, NDI|HX2, and HX3, as well as other options including SRT, h.264, and Cloud Connect, setting a new benchmark in format support. It offers four output options - NDI, SDI, HDMI, and UVC USB - catering to diverse live production work and facilitating easy connection to platforms like Zoom & Teams.

The P120 camera also features an intuitive OLED display that shows essential information such as the IP address, device name, stream name, resolution, and frame rate. Its unique numbering system and 360-degree mohawk tally ensure easy identification and operation.

With built-in NDI 5 support, this sophisticated camera ensures maximum compatibility across all NDI ecosystems. It also features the Reliable User Datagram Protocol (RUDP) for smooth and reliable network performance.

The P120 camera supports FreeD output for AR/VR workflows and can generate scopes in-camera to send out as NDI, NDI Proxy, or both. This feature allows for monitoring scopes on the NDI Proxy while sending a clean main NDI feed simultaneously.

With the addition of a BirdDog Cloud subscription, you can access the PTZ cameras and all features from anywhere in the world, without needing a computer on the camera side.

In summary, the P120 Full HD Full NDI 20x PTZ Camera is a sophisticated, state-of-the-art solution for all your surveillance and security needs, offering unparalleled flexibility, advanced technology, and superior image quality.

BirdDog P120 2.1MP 1080p Full NDI 20x PTZ Camera - Black SKU#1600513 Features

  • 20x Optical Zoom, 16x Digital Zoom
  • Full NDI, NDI|HX 2 Support
  • Sony Exmor R back-illuminated CMOS image sensor
  • 360 Degree Mohawk Tally
  • Unique Numbering System - Removable silicon numbers at the back of Camera
  • OLED Display - allows information such as IP Address, Device Name, Stream Name, Resolution, and Frame Rate

What's in the box:

  • BirdDog P120 2.1MP 1080p Full NDI 20x PTZ Camera (Black)
  • Power Adapter
  • Remote
  • Original Box
  • Item Note: Unit powers on but was not fully tested
