Review Summary
2022-04-27T11:34:42
Works great.
CHARLIE G.
2022-01-24T07:58:52
We needed a different card, but this one arrived quickly.
ELEANOR C.
2021-01-27T07:15:25
Needed an high bandwidth low latency SDI capture card for my ptz camera for livestream. This one is fantastic, it also includes a hdmi input if you need. It's also has a small form factor and a low profile mounting plate for when I rack mount my PC.
Janet k.
2020-08-02T09:53:49
Pairs up perfectly with our new 4k camera (Canon XA40) and recently rebuilt AMD Ryzen based PC for church livestream. Plug and Play. Really easy to setup and use, though the documentation from Blackmagic could use a little more polishing.
Ryan S.
2020-07-27T05:41:57
Fit right into the computer slot and worked as soon as I opened up OBS. We use it to stream 1080p60 from our Black magic switcher and has worked phenomenally so far. SDI input was what sold us and we have loved it.
KIM R.
2020-06-26T18:12:55
This works great in my Optiplex 9010 SFF. I use it to livestream minor league football games for the Joliet Thunder. Used to be Chicago Thunder.
IVAN O.
2020-06-22T17:14:56
Great product - simple and easy to use. A little confusing getting the SW download but once that was figured out we had no issues. Adorama shipping and packaging went great.
ROSE S.
2020-06-10T08:58:19
This thing has been a lifesaver for our stream! Easy install and works like a charm.
JEREMY G.
2020-06-09T04:51:08
BlackMagic certainly has the edge on video capture devices! This product is no exception. It preforms flawlessly on our 2010 Mac Pro using OBS. Setup was simple and straightforward. Definitely wouldn’t trust my video capture needs to any other generic brand of PCIe capture devices!
BRUCE W.
2020-06-07T12:29:51
Great little piece of hardware. Does what it’s supposed to do without taxing my computer’s resources. Working great ingesting PTZ camera to our livestream. My only complaint is that it will only input one or the other (SDI or HDMI) not both at the same time.
JONATHAN T.
2017-09-06T12:14:12
Setup is quite easy, software is not super friend but get the job done. However it didn't seem to use any video codec to reduce size, so it generate huge video files.
Cheng D.
2016-10-11T13:38:00
The product came the next day and the card was easy to install. The issue was getting our Sony EVI-HD1 to show its image through the card. This took a little trial and error. It would be Nice if Blackmagic supplied a simple camera viewer to verify the camera was working. Once it was up and running it has worked great!
Christopher B.
1x 10-bit SD/HD switchable
1x HDMI type A connector
8 channels embedded in SD and HD
8 Channels embedded in SD and HD
PCI Express 1 lane, compatible with 1, 4, 8 and 16 lane PCIe slots
AVC-Intra
AVCHD
Canon XF MPEG2
Digital SLR
DV-NTSC
DV-PAL
DVCPRO50
DVCPROHD
DPX
HDV
XDCAM EX
XDCAM HD
XDCAM HD422
Apple ProRes 4444
Apple ProRes 422 (HQ)
Apple ProRes 422
Apple ProRes (LT)
Apple ProRes 422 (Proxy)
Uncompressed 8-bit 4:2:2
Uncompressed 10-bit 4:2:2
Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X.
Media Express, Disk Speed Test, LiveKey, Blackmagic Control Panel and Blackmagic driver on Windows 7 or Windows 8.
Media Express, Blackmagic Control Panel and Blackmagic driver on Linux.
Firmware built into software driver. Loaded at system start or via updater software.
PCI Express 1 lane, compatible with 1, 4, 8 and 16 lane PCI Express slots on Mac OS X, Windows 8 and Linux. Mac OS X systems require a Mac Pro computer. Please check the Support pages to see the full system requirements.
Adobe Premiere Pro
Avid Media Composer
Adobe After Effects
Nuke - The Foundry
DaVinci Resolve
Avid Pro Tools
Steinberg Cubase
Steinberg Nuendo
Adobe Photoshop
Media Express
Avid Symphony
Avid News Cutter
Tools On Air just:in & live:cut & just:play & just:live
Softron OnTheAir
MovieRecorder & OnTheAir CG
Flash Media Encoder
Wirecast
Livestream Procaster
Resolume Avenue 4
Sony Vegas Pro
Corel VideoStudio Pro X4
CyberLink Power Director
MAGIX Video Pro X4
Vidcaster Pro & Studio & Broadcast
Uniplay
Playbox AirBox
CasparCG
Magicsoft CG
Xsplit Broadcaster
Harris Infocaster
625/25 PAL, 525/29.97 NTSC.
720p50
720p59.94
720p60
1080PsF23.98
1080p23.98
1080PsF24
1080p24
1080PsF25
1080p25
1080PsF29.97
1080p29.97
1080PsF30
1080p30
1080i50
1080i59.94
1080i60.
SMPTE 259M and 292M
VITC read for 3:2 pulldown removal. VANC capture and playback using up to 3 lines of video in file. HD RP188 and closed captioning
Television standard sample rate of 48 kHz and 24 bit
4:2:2
10-bit
REC 601, REC 709
HDMI automatically configures to connected display
Pixel for pixel HD resolution input to connected device
10-bit
SDI and HDMI are switchable between standard definition and high definition
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content
Colorspace Conversion: Hardware based real time
HD Up Conversion: Software based up conversion during video capture
Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks or later
Windows 7 or Windows 8
Linux
3.6" (91.4mm)
Operating Temperature: 5½ to 40½ C (32½ to 104½ F)
Storage Temperature: -20½ to 45½ C (-4½ to 113½ F)
Relative Humidity: 0% to 90% non-condensing
Great little piece of hardware!
By JONATHAN T.
Great little piece of hardware. Does what it’s supposed to do without taxing my computer’s resources. Working great ingesting PTZ camera to our livestream. My only complaint is that it will only input one or the other (SDI or HDMI) not both at the same time.
Works great.
By CHARLIE G.
Works great.

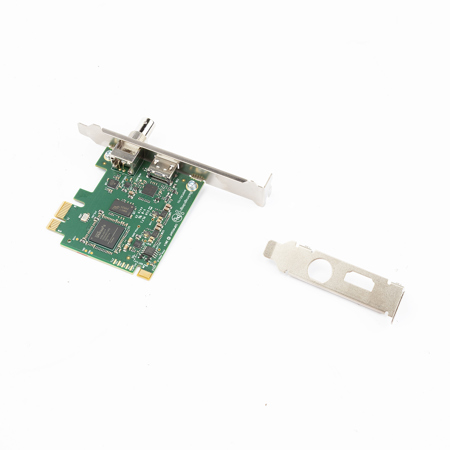

Record uncompressed 10-bit video from SDI and HDMI video sources. DeckLink Mini Recorder switches between SD and HD video formats and is perfect for building ingest servers or other video solutions where you need to capture only in a low profile card! Includes two PCIe shields for both full height and low profile slots.
