Blackmagic Design Heavy Duty Mini Converter, SDI to Analog
See all Blackmagic Design items
CloseoutUsed Condition: Heavy Use

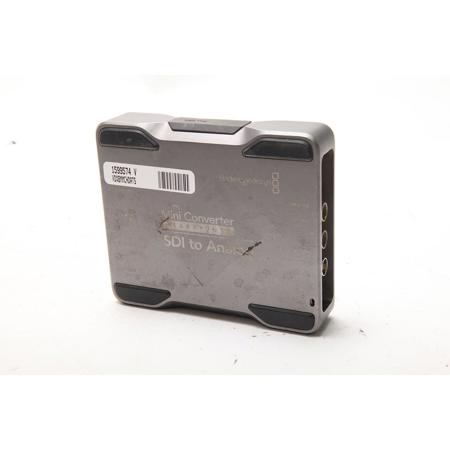

Used Blackmagic Design Heavy Duty Mini Converter, SDI to Analog

SKU: US1608969 MFR: CONVMH/DUTYASA
Be the first to review this item
$48.00
Earn VIP Reward Points
See all Used options (2) from $48

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Calculate Shipping

See Options

1
Add to List

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Blackmagic Design Heavy Duty Mini Converter Specifications

  • SDI Video Output

    Automatically matches the SD, HD and 3 Gb/s SDI video input.

  • SDI Video Input

    Switchable between SD, HD and 3 Gb/s SDI.

  • Analog Video

    Component, NTSC, PAL and S-Video from SD-SDI input
    Component HD from HD-SDI input

  • HDMI

    No

  • Optical Fiber Video Input

    No

  • Optical Fiber Video Output

    No

  • Optical Fiber Audio Input

    No

  • Optical Fiber Audio Output

    No

  • Analog Audio

    2 channels of professional balanced analog audio with standard 1/4 inch jack connections.

  • AES/EBU Digital Audio

    2 channels of professional balanced digital with standard 1/4 inch jack connections.

  • SDI Redundant Input

    Automatically switches over if main SDI input is lost.

  • Reference Input

    No

  • Multi Rate Support

    Auto detection of HD or standard definition SDI inputs.

  • Updates and Configuration

    Via USB 2.0 high speed. (480 Mb/s)

  • Re-clocking

    Yes

  • SDI Format Support

    625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60

  • SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI

  • SDI Video Rates

    SDI video connections are switchable between standard definition and high definition

  • SDI Video Sampling

    4:2:2

  • SDI Audio Sampling

    Television standard sample rate of 48 kHz and 24 bit.

  • SDI Color Precision

    4:2:2

  • SDI Color Space

    YUV

  • SDI Auto Switching

    Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI.

  • ASI Support

    No

  • Analog Format Support

    625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.

  • Analog Color Space

    YUV

  • Analog Color Precision

    4:2:2

  • HDMI Format Support

    No

  • Software Control

    Mac OS X and Windows software upgrade via USB

  • Settings Control

    Mini Switches or USB software

  • Firmware Upgrade

    Via included firmware updater application

  • Format Conversion

    HD down conversion

  • Power Supply

    +12V universal power supply included with international socket adapters for all countries. Cable tie point

  • 110 Volt Power Consumption

    83 mA

  • 220 Volt Power Consumption

    42 mA

  • Operational Voltage Range

    12V

About Blackmagic Design Heavy Duty Mini Converter, SDI to Analog

The Mini Converter Heavy Duty SDI to Analog includes everything you need to convert from analog video in HD/SD component, NTSC, PAL or S-Video to SDI video, with the choice to embed SDI audio from balanced AES/EBU or analog audio inputs. Now you can convert analog devices such as Betacam SP, VHS, set top boxes and HDV cameras to SDI video, all in a compact and super tough converter machined from a solid block of aluminum!

Blackmagic Design Heavy Duty Mini Converter, SDI to Analog Features

  • Build your SDI studio with the most advanced converters: Only Mini Converters include auto SD/HD switching, redundant input, AES/EBU and analog audio on standard 1/4 inch jack connections, combined with advanced 3 Gb/s SDI technology
  • High Quality SDI: Mini Converters are built to the highest quality standards with low SDI jitter. You get the longest SDI cable lengths combined with ultra low noise analog video and audio for a true broadcast quality solution
  • Mini Converter Heavy Duty Family. Super Tough! The new Mini Converter Heavy Duty range is precision machined from a solid block of aircraft grade aluminum, designed to resist being damaged through rough handling in live production and outdoor use
  • AES/EBU and Analog Audio: Most Mini Converters feature 24 bit analog and 24 bit digital audio and HDMI models support HDMI audio
  • New 3 Gb/s SDI Technology: With the latest 3 Gb/s SDI technology built into Mini Converters you get modern broadcast technology that's future proof
  • Auto Switching SD and HD: Mini Converters instantly switch between all SD and HD video formats whenever the video input changes
  • Redundant SDI Input: Mini Converters feature a unique redundant input for mission critical tasks such as broadcast or live events
  • Hardware Down Converter: If you connect to analog SD equipment then you'll know how hard it is when modern SDI equipment unexpectedly changes between SD and HD. Mini Converter SDI to Analog includes an automatic high quality down converter that supports letterbox, anamorphic 16:9 and center cut 4:3
  • International Power Supply: Unlike other converters, a high quality low noise universal power supply is included with international socket adapters for all countries. To stop power accidentally being disconnected, a cable tie point is included to lock down the power connection tight and secure!
  • Easy to Change Settings: With Blackmagic Design's Mini Converters, it's as simple as using a pen to change settings. Settings vary between models, and include settings such as AES/EBU or analog audio, analog video connections, and more
