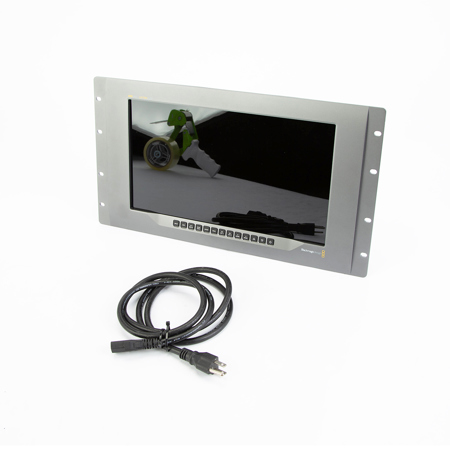

Used Blackmagic Design SmartView 4K 15.6" Ultra HD TFT LCD Monitor, 1000:1 Contrast Ratio, 25ms Response Time, 2x 12G-SDI/BNC Input, SDI Loop Output

From the innovators at Blackmagic Design comes the SmartView 4K 2, a high-quality 15.6" TFT LCD monitor designed for the discerning professional. This advanced monitor offers a native resolution of 3840 x 2160, delivering ultra-high-definition visuals that are crisp, clear, and vibrant.

Equipped with two multi-rate 12G-SDI inputs, the SmartView 4K 2 seamlessly switches between SD, HD, and 4K formats, including DCI 4K (4096 x 2160) at 60 fps. This feature ensures compatibility with a wide range of video sources and formats, making it a versatile addition to any professional video setup.

The SmartView 4K 2 is designed with an SMPTE-compatible optical fiber socket, allowing for the integration of a separate module for SDI fiber input. This feature enhances the monitor's connectivity options, providing flexibility for various broadcast scenarios.

The built-in Teranex processor uses Blackmagic's PixelMotion algorithms to automatically deinterlace and scale video up to UHD 4K. This ensures optimum image quality, even when working with lower-resolution images, making the SmartView 4K 2 a reliable choice for all your monitoring needs.

The SmartView 4K 2 features built-in control buttons for easy access to advanced broadcast features such as 3D LUTs, H/V delay, blue channel only, and customizable frame markers. The monitor's durable, machined metal frame is rack-mountable and features VESA mounting holes for easy installation on articulating arms.

Remote operation is made easy with the rear Ethernet connection, which allows for control via downloadable Mac or Windows software. This feature is particularly useful for setups that are difficult to access. The SmartView 4K 2 is equipped with both AC power and 12 VDC power inputs, making it suitable for both studio and on-set use.

The SmartView 4K 2's 15.6" active matrix TFT LCD screen provides bright viewing with wide viewing angles. Its native 3840 x 2160 resolution displays every pixel from footage with a resolution up to DCI 4K60. The backlit front-panel buttons are ideal for use in dimly lit studios or locations, allowing for easy setting adjustments.

The dual 3D LUT support allows for custom color grading and monitoring, making the SmartView 4K 2 a versatile tool for on-set grading. The 12G-SDI input enables the display of DCI 4K60 footage from high-end cameras like the Blackmagic URSA, allowing for viewing of native LOG gamma color spaces with Rec. 709 or custom color spaces using the 3D LUTs.

The SmartView 4K 2 features two multi-rate 12G-SDI inputs, a 12G-SDI loop-through output, an SMPTE-compatible optical fiber socket, an Ethernet port with loop-through, AC and DC power inputs, a tally input connector, and a USB port for updates. These comprehensive connection options make the SmartView 4K 2 a versatile and adaptable choice for any professional video setup.

In conclusion, the Blackmagic Design SmartView 4K 2 is a stylish, durable, and innovative monitor that offers advanced features and high-quality visuals. It is designed to enhance your professional monitoring capabilities and integrate seamlessly into your existing workflow.
