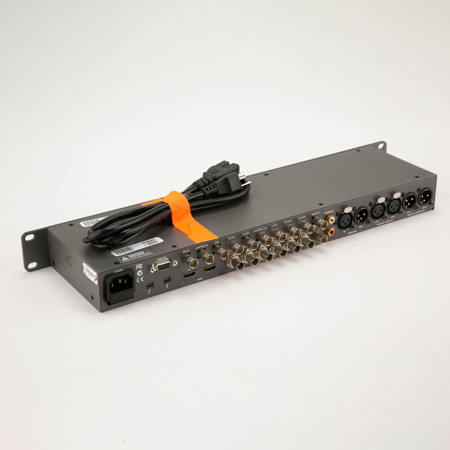

Blackmagic Design UltraStudio 4K Thunderbolt 2 External 1RU Table-Top I/O Device

Picture does not represent the actual item
See what's in the box

See all Blackmagic Design items

Used Blackmagic Design UltraStudio 4K Thunderbolt 2 External 1RU Rack Mount & Table-Top I/O Device Box, 2x 20Gb/s Thunderbolt 2 Ports

SKU: US1669090

This item is no longer available.

Recommended Items

Blackmagic Design UltraStudio 4K Mini: Picture 1 regular
Blackmagic Design UltraStudio 4K Mini Capture and Playback Unit
$1,165.00
Blackmagic Design UltraStudio 4K Extreme 3: Picture 1 regular
Blackmagic Design UltraStudio 4K Extreme 3
$3,839.00
Blackmagic Design Express: Picture 1 regular
Blackmagic Design UltraStudio Express, Thunderbolt Powered Video I/O Device
$61.00$57.00
Blackmagic Design UltraStudio: Picture 1 regular
Blackmagic Design UltraStudio Mini Recorder
$43.00$40.00
Blackmagic Design UltraStudio HD Mini: Picture 1 regular
Blackmagic Design UltraStudio HD Mini
$649.00
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2016-08-11T11:22:11

Rated 4 out of 5

Works, requires parts

First off, -1 star for lacking IEC power cable. Who makes a device and doesn't include the power cord these days? I mean, I have dozens of them lying around somewhere, but I had to go find one. So yes, minus 1 star. (the box doesn't even include provisions for storing one, so I suspect it's intentional) After that, though, this box is pretty good. It works like it's supposed to, but like all Blackmagic devices it introduces a 700ms delay to both video and audio on passthrough (expected, hoped otherwise). I'm also tethered to my computer with a Thunderbolt 2 optical cable going into a Thunderbolt 3 adapter. Works flawlessly.

JASON R.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Blackmagic Design UltraStudio 4K Specifications

  • SDI Video Input

    2x 10-bit SD/HD/Ultra HD/4K (2D/3D switchable)
    Supports 3 Gb/s and 6 Gb/s dual link 4:2:2/4:4:4
    4K and 1080p formats supported:
    DCI / UHD 4K 4:2:2 by single-link 6G-SDI
    1080p RGB 4:4:4 by single-link 3G-SDI
    1080p 4:2:2 by single-link HD-SDI
    1080p 4:4:4 by dual-link HD-SDI

  • SDI Video Loop

    2x reclocked, 10-bit SD, HD, 3G-SDI, 6G-SDI

  • SDI Video Output

    2x 10-bit SD/HD/3G/Ultra HD/4K (2D/3D switchable)
    Supports 3 Gb/s and 6 Gb/s dual link 4:2:2/4:4:4
    4K and 1080p formats supported:
    DCI / UHD 4K 4:2:2 by single-link 6G-SDI
    1080p RGB 4:4:4 by single-link 3G-SDI
    1080p 4:2:2 by single-link HD-SDI
    1080p 4:4:4 by dual-link HD-SDI

  • Analog Video Input

    1x Component YUV on 3 BNCs
    1x Composite on 1 BNC

  • Analog Video Output

    1x Component YUV on 3 BNCs
    1x composite on 1 BNC

  • HDMI Video Input

    1x HDMI type A connector including 3D frame packing, Ultra HD and 4K support
    4K format supported:
    DCI 4K 4:2:2 by HDMI

  • HDMI Video Output

    1x HDMI type A connector including 3D frame packing, Ultra HD and 4K support
    4K format supported:
    DCI 4K 4:2:2 by HDMI

  • Analog Audio Input

    2 channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connections

  • Analog Audio Output

    2 channels of professional balanced analog audio via XLR connectors

  • AES/EBU Audio Input

    2 channels unbalanced with sample rate converter on BNC connectors

  • AES/EBU Audio Output

    2 channels unbalanced with sample rate converter on BNC connector

  • SDI Audio Input

    8 channels embedded in SD
    16 channels embedded in HD
    16 channels embedded in Ultra HD and 4K

  • SDI Audio Output

    8 channels embedded in SD
    16 channels embedded in HD
    16 channels embedded in Ultra HD and 4K

  • HDMI Audio Input

    8 channels embedded in SD, HD, 2K, Ultra HD and 4K

  • HDMI Audio Output

    8 channels embedded in SD, HD, 2K, Ultra HD and 4K

  • Timecode Input

    1x XLR for LTC input

  • Timecode Output

    1x XLR for LTC output

  • Sync Input

    Blackburst in SD or Tri-Sync in HD

  • Device Control

    Sony compatible RS-422 deck control port
    Serial ports Tx/Rx direction reversible under software control

  • Computer Interface

    2x Thunderbolt 2

  • Supported Codecs

    AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4

  • Supported Applications: 1

    Apple Final Cut Pro X, Adobe Premiere Pro, Avid Media Composer, Adobe After Effects, Nuke - The Foundry, DaVinci Resolve, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, Adobe Photoshop, Avid Symphony, Avid News Cutter, Tools On Air just:in / live:cut / just:play / just:live, Softron OnTheAir Video/ MovieRecorder / OnTheAir CG, Flash Media Encoder

  • Supported Applications: 2

    Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidcaster Pro / Studio / Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Harris Infocaster

  • Internal Software Upgrade

    Firmware built into software driver. Software driver loads upgrades at system start or via updater software.

  • 4K Format Support: SDI

    3840x2160p/23.98, 3840x2160p/24, 3840x2160p/25, 3840x2160p29.97, 3840x2160p30, 3840x2160p50, 3840x2160p59.94, 3840x2160p60, 4096x2160p23.98, 4096x2160p24, 4096x2160p25, 4096x2160p29.97, 4096x2160p30, 4096x2160p50, 4096x2160p59.94, 4096x2160p60

  • 4K Format Support: HDMI

    3840x2160p/23.98, 3840x2160p/24, 3840x2160p/25, 3840x2160p29.97, 3840x2160p30, 4096x2160p23.98, 4096x2160p24

  • HD Format Support: SDI

    720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080p50, 1080i59.94, 1080p59.94, 1080i60 and 1080p60

  • HD Format Support: HDMI

    720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080p50, 1080i59.94, 1080p59.94, 1080i60 and 1080p60

  • SD Format Support

    SDI: 625/25 PAL, 525/29.97 NTSC
    HDMI: 625/25 PAL, 525/29.97 NTSC

  • Compliance

    SDI: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M level B, ITU-R BT.656 and ITU-R BT.601
    HDMI: HDMI 1.4b

  • SDI Video Sampling

    HD and 4K at up to 30p at 4:2:2 and 4:4:4
    (anything above 30p in either HD or UHD will be sampled at 4:2:2)

  • Color Precision

    SDI / HDMI: 10-bit

  • SDI Color Space

    REC 601, REC 709

  • SDI Audio Sampling

    Television standard sample rate of 48 kHz and 24 bit

  • SDI Metadata Support

    VITC read for 3:2 pulldown removal
    VANC capture and playback using up to 3 lines of video in file
    HD RP188
    Closed captioning

  • HDMI Resolution

    Pixel for pixel up to 4K resolutions

  • HDMI Copy Protection

    HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

  • Colorspace Conversion

    Hardware based real-time

  • 3D Processing

    Dual stream and frame packed capture and playback

  • HD Down Conversion

    Built in, high quality hardware down converter outputs HD-SDI on SDI A output, SD-SDI on SDI B output and Composite and S-Video when working in HD video formats on playback. Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.

  • HD Up Conversion

    Built-in, high quality hardware up conversion from SD to 720HD or 1080HD on playback. Selectable between 4:3 pillarbox, 14:9 pillarbox and 16:9 zoom. HD outputs via HD-SDI, HDMI and component analog.

  • HD Cross Conversion

    Built in, high quality hardware cross conversion from 720HD to 1080HD and 1080HD to 720HD on playback.

  • Real Time Effects

    Apple Final Cut Pro internal effects
    Adobe Premiere Pro Mercury Playback Engine effects
    Avid Media Composer internal effects

  • System Requirements

    Mac with Thunderbolt or Thunderbolt 2 and OS X 10.8 Mountain Lion, OS X 10.9 Mavericks, or later

  • Power

    1x built-in international AC power supply with IEC C14 inlet 120-240 V, 50-60 Hz

  • Operating Temperature

    32 to 104deg.F (5 to 40deg.C)

  • Storage Temperature

    -4deg. to 113deg.F (-20 to 45deg.C)

  • Relative Humidity

    0 to 90% non-condensing

  • Safety Compliance

    FCC, CE, C-Tick

  • Dimensions

    19 x 5.59 x 1.73" (48.2 x 14.2 x 4.4 cm)

  • Weight

    3.7 lbs (1.68 kg)

About Blackmagic Design UltraStudio 4K Thunderbolt 2 External 1RU Table-Top I/O Device

The Blackmagic Design UltraStudio 4K Thunderbolt 2 is an external 1RU/table-top I/O device with two 20Gb/s Thunderbolt ports. It captures DCI 4K 4:2:2 or UHD 4K YUV 4:2:2 by single-link 6G-SDI up to 30p and by dual-link 6G-SDI from 50p to 60p; 1080p RGB 4:4:4 by single-link 3G-SDI; 1080p 4:2:2 by single-link HD-SDI; 1080p 4:4:4 by dual-link HD-SDI; and DCI/UHD 4K 4:2:2 by HDMI. 4K can be input/output compressed and uncompressed. The SDI inputs also support dual-channel 2D/3D stereoscopic workflows. UltraStudio 4K is capable of hardware-based HD down/up/cross conversion.

The other connections are Component and Composite on BNC, 2-channel analog audio on XLR, 2-channel AES/EBU audio on BNC, timecode input and output on XLR, Blackburst and Tri-Sync and RS-422 deck control. A color LCD and six quick-access video and audio input buttons are built in on the front panel.

Blackmagic Design UltraStudio 4K Thunderbolt 2 External 1RU Table-Top I/O Device Features

  • UltraStudio 4K Thunderbolt 2 supports popular compressed video formats such as ProRes and DNxHD as well as 10-bit uncompressed video. When working with uncompressed video all captured images are a perfect pixel-for-pixel clone of the source without any quality loss
  • UltraStudio 4K Thunderbolt 2 features built-in 6G-SDI connections that operate at four times the speed of regular HD-SDI, meaning you can capture Ultra HD and 4K with only one BNC cable instead of four.
  • UltraStudio 4K Thunderbolt 2 also supports dual stream 3D with capture and playback of two independent channels.
  • Thunderbolt ensures low latency and highly accurate time synchronization for high quality capture and playback. UltraStudio 4K Thunderbolt 2 features 20Gb/s Thunderbolt 2 with loop thru and dual link 6G-SDI, the combination perfect for 3D stereoscopic workflows, Ultra HD and DCI 4K.

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Blackmagic Design UltraStudio 4K Thunderbolt 2 External 1RU Rack Mount & Table-Top I/O Device Box
  • Power Cable
