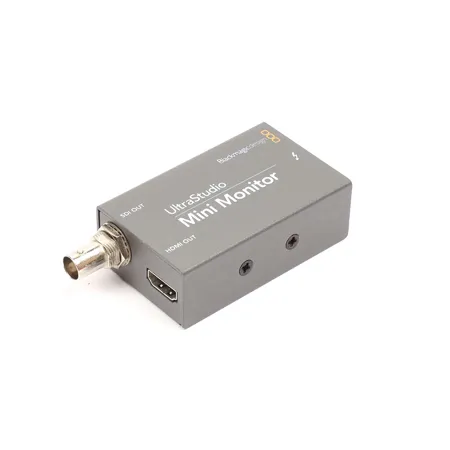

Used Blackmagic Design UltraStudio Mini Monitor Playback Device

SKU: US1968933 MFR: BDLKULSDZMINMON
$52.00
Earn VIP Reward Points

What`s in the box:

  • Blackmagic Design UltraStudio Mini Monitor Playback Device
See more

Key Features

  • Power of Thunderbolt
  • Unmatched Quality
  • Works with all Video Software
  • Flexibility and Quality
  • Super Tough Elegant and Portable Design
  • Supports Your Favorite Software
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$11.99

2 Year

$18.99

3 Year

$28.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2021-03-12T07:26:55

Rated 5 out of 5

Thunderbolt 2

I’m thankful for the compatibility with older Mac hardware using Thunderbolt 2.

JAMISON H.

2020-07-05T08:35:08

Rated 5 out of 5

Works as promised

Worked exactly how I needed it to. Really can’t ask for anything better then that

DAVID B.

2020-06-14T14:49:21

Rated 5 out of 5

Solution solver

Perfect solution!!

ROGER B.

2020-06-10T15:00:52

Rated 4 out of 5

Mistaken order of a worthy product

Purchased this on accident, thinking I was getting the Mini Recorder. Silly mistake on my part. Having said that, Blackmagic products have been incredible for our uses. We use pro-sumer grade cameras to run livestreams and have nearly a dozen Blackmagic devices in the mix. They work extremely well and they've all been reliable.

BERNIE N.

2020-06-02T10:13:00

Rated 5 out of 5

This devise was great it works wonders

This devise is sturdy and easy to use I would recommend it to everybody

SYDNEY S.

2018-05-16T11:45:28

Rated 4 out of 5

Works well, runs hot.

Not much to say other than it works. Also works as a splitter if you want to output hdmi and sdi at the same time (I had no idea it did this before buying). This is a temporary solution before I buy the UltraStudio 4k, whenever that gets updated. A few things: - It does get pretty warm, and stays on as long as the computer is on, even when not actually in use. - With Davinci Resolve, it crops into the frame a little, not sure why, maybe a setting. - In Final Cut X, it tends to stretch the image, though this only happens occasionally. This may be also be a simple setting within the software that I'm overlooking. I have only used on a couple projects so far, so time will tell if it lasts and if I can get around some the sizing problems.

Elvis S.

2017-01-11T11:15:26

Rated 5 out of 5

Works as advertised

Using this to get video into a Mac Mini to drive ScopeBox. Works great!

Robert A.

Blackmagic Design UltraStudio Mini Monitor Specifications

  • SDI Video Output

    1x 10-bit SD/HD switchable

  • HDMI Video Output

    1x HDMI type A connector

  • SDI Audio Output

    8 channels embedded in SD and HD

  • HDMI Audio Output

    8 channels embedded in SD and HD

  • Computer Interface

    Thunderbolt

  • SD Format Support

    625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC

  • HD Format Support

    720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60

  • SDI Compliance

    SMPTE 259M and SMPTE 292M

  • SDI Metadata Support

    VITC read for 3:2 pulldown removal
    VANC capture and playback using up to 3 lines of video in file
    HD RP188
    Closed captioning

  • Sampling

    Video: 4:2:2
    Audio: Television standard sample rate of 48 kHz at 24 bit

  • Color Precision

    10-bit

  • Color Space

    REC 601, REC 709

  • HDMI Configuration

    HDMI automatically configures to connected display

  • HDMI Resolution

    Pixel for pixel HD resolution input to connected device

  • HDMI Color Precision

    10-bit

  • Multiple Rate Support

    SDI and HDMI are switchable between standard definition and high definition

  • Colorspace Conversion

    Hardware based real time

  • HD Down Conversion

    Software based down conversion during video playback

  • Real Time Effects

    Apple Final Cut Pro internal effects
    Adobe Premiere Pro Mercury Playback Engine effects
    Avid Media Composer 6 internal effects

  • Internal Software Upgrade

    Firmware built into software driver. Loaded at system start or via updater software.

  • Physical Installation

    Requires computer with a Thunderbolt port

  • System Compatibility

    Mac OS X 10.9 Mavericks
    Mac OS X 10.10 Yosemite
    Mac OS X 10.11 El Capitan or later
    Windows 8.1 or 10

  • Power Requirements

    Powered by Thunderbolt cable.

  • EMC Certifications

    FCC, CE and C-Tick.

  • Operating Temperature

    32 Degree to 104 Degree F (5 Degree to 40 Degree C)

  • Storage Temperature

    -4 Degree to 113 Degree F (-20 Degree to 45 Degree C)

  • Relative Humidity

    0% to 90% non-condensing

  • Dimensions

    3.62 x 1.77 x 0.98" (9.19 x 4.49 x 2.48cm)

  • Weight

    5.4 oz (153g)

About Blackmagic Design UltraStudio Mini Monitor Playback Device

FEATURED REVIEWS

Works as advertised

By Robert A.

Using this to get video into a Mac Mini to drive ScopeBox. Works great!

Thunderbolt 2

By JAMISON H.

I’m thankful for the compatibility with older Mac hardware using Thunderbolt 2.

The Blackmagic Design UltraStudio Mini Monitor is perfect for using low cost HDMI TVs and projectors for monitoring. When you need low cost monitoring for editing, then UltraStudio Mini Monitor is perfect. Plug in the Thunderbolt and monitor out of the SDI and HDMI outputs. Perfect for using low cost HDMI TVs and projectors for monitoring.

Features

The Power of Thunderbolt
Built on revolutionary Thunderbolt technology, UltraStudio has a blazingly fast 10 Gb/s connection that's up to 20 times faster than USB 2.0. That's enough bandwidth to handle the highest resolution video formats easily.

Unmatched Quality
Now you can handle any job your client presents to you, from TVC to feature films. UltraStudio operates with both compressed and uncompressed video, so it can handle anything and you're not locked into a single codec quality.

Works with all Video Software
UltraStudio is fully compatible with your favorite software. All UltraStudio files are open standard DPX and QuickTime format, so are compatible with all software. UltraStudio even includes a developer SDK and QuickTime API so you can develop your own custom solutions.

Blackmagic Design UltraStudio Mini Monitor Playback Device Features

  • Power of Thunderbolt
  • Unmatched Quality
  • Works with all Video Software
  • Flexibility and Quality
  • Super Tough Elegant and Portable Design
  • Supports Your Favorite Software

Warranty Information

This used item has a FREE 180-day warranty. See details.

Key Features

  • Power of Thunderbolt
  • Unmatched Quality
  • Works with all Video Software
  • Flexibility and Quality
  • Super Tough Elegant and Portable Design
  • Supports Your Favorite Software
