Used Blackmagic Design UltraStudio SDI, USB 3.0 Connection to PC
SKU: US1761142
This item is no longer available.
Recommended Items
Share:
Overview
Compare
Specs
Protection

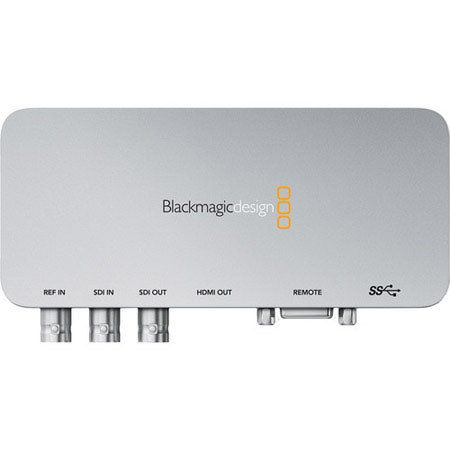

About Blackmagic Design UltraStudio SDI, USB 3.0 Connection to PC
Blackmagic Design UltraStudio SDI is a Windows-compatible HD-SDI capture device that connects to your computer via USB 3.0. The compact, handsome, machined-aluminum device draws power through the USB 3.0 connection. UltraStudio SDI includes all necessary capture/playback software and drivers, so setup is a breeze. The device captures uncompressed 10-bit 4:2:2 YUV video from any deck, broadcast router, or video camera with SDI output and plays it back to broadcast-quality SDI monitors.
The USB 3.0 connection supports data rates up to a blazing 4.8 Gb/s, which is plenty fast to effect a direct high-speed connection to your video editing software's real-time effects processing. UltraStudio SDI also features an HDMI 1.4 output for monitoring via an HDMI-enabled television, computer monitor, or projector. RS-422 deck control is included for controlling HDCAM SR, Digital Betacam, HDCAM, D5, DVCPRO HD and other VTRs.
For genlock, the device accepts a blackburst or tri-sync reference signal. All UltraStudio SDI files are open standard AVI, DPX and QuickTime format, so you can edit with just about any software, including Sony Vegas, The Foundry's Nuke, eyeon Fusion, Digidesign Pro Tools and Adobe Premiere Pro, Photoshop and After Effects.
Though it's a Windows-based device, UltraStudio is qualified by Apple for Final Cut Pro compatibility, so you can batch capture from decks and play back FCP timelines with RT Extreme real-time effects. Other supported Final Cut Pro features include 10-bit rendering, 16-channel audio, deck control and support for ProRes, JPEG, DV, DVCPRO, DVCPRO HD and 8- & 10-bit uncompressed video.
Blackmagic Design UltraStudio SDI, USB 3.0 Connection to PC Features
- UltraStudio SDI includes the highest-quality low-jitter SDI connections that instantly switch between all SD and HD video formats. Connect to decks such as Digital Betacam, HDCAM, HDCAM-SR, Panasonic D5, DVCPRO HD, Sony PMW-F3 and more
- With UltraStudio SDI you get both compressed and uncompressed video capture and playback in the highest-quality 10-bit 4:2:2 YUV. Only uncompressed video captures every bit of every pixel in the SDI video connection for an exact mirror image between capture and playback
- For a future-proof design, UltraStudio SDI features built-in USB 3.0 for a high-speed 4.8 Gb/s connection that's up to 10 times faster than USB 2.0 or FireWire. USB 3.0 is built into the latest computers and is more than 3 times the speed of HD video
- Blackmagic Design is the world's biggest capture card manufacturer, so you get the widest third-party software compatibility. Use DirectShow and QuickTime software and edit on your favorite NLE software such as Adobe Premiere Pro and Sony Vegas
- UltraStudio SDI includes everything you need for editing, paint, or broadcast design. There's a full set of drivers for capture and playback with real-time effects in Premiere Pro. There's also a set of included Blackmagic Utilities: Disk Speed Test, LiveKey and the Blackmagic software codec
- Media Express lets you batch capture and play back 2D and dual-stream stereoscopic 3D in DPX, ProRes, uncompressed YUV and RGB, DVCPRO HD and MJPEG files. You can even create your own playlist
- LiveKey lets you insert logos and other graphics in real time using SDI outputs by switching UltraStudio SDI into a standard-def keyer card. Disk Speed Test checks your disk array and gives you an easy-to-understand speed test with the results in video frames per second
