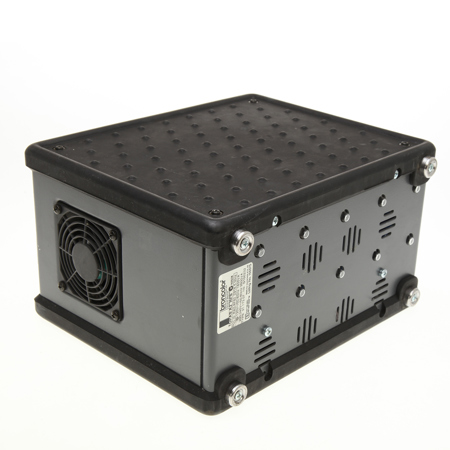

Used Broncolor Broncolor Topas A2 RFS 100-240 V 1600 Ws Power Pack with 2 Head Outlets, Symmetrical and Asymmetrical.

SKU: US1301476

This item is no longer available.

Recommended Items

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Specification about this item

  • Flash energy

    1600 J

  • F-stop at 2 m 100 ISO, reflector P70

    64.2

  • Flash duration t 0.1 (t 0.5)

    1600 J: 1/300 s (1/1000 s)
    1000 J: 1/400 s (1/1300 s)
    600 J: 1/500 s (1/1600 s)

  • Charging time(f/100% of selected energy)

    200-240 V / 110-120 V: 0.4 - 1.8 s
    100 V: 0.5 - 2 s

  • Ready display

    Visual and audible (can be switched off), signals when 100% of selected energy is reached

  • Lamp base outlets

    2

  • Power output distribution

    Symmetrical and variable individual (asymmetrical)

  • Controls

    Illuminated silicone keyboard and LED-display, resistant to dust and scratches

  • Control range

    5 f-stops in 1/10 f-stop intervals (1:32) can be switched to 6 f-stops (1:64)
    By selecting the respective lamp base outlet in asymmetrical mode additional 1.3 f-stops

  • Maximum asymmetry

    6.3 f-stops
    Outlet 1: level 9.3 / Uutlet 2: level 3.7

  • Modelling light

    Halogen max. 2 x 650 W at 200 - 240 V
    Halogen max. 2 x 300 W at 100 - 120 V

  • Additional functions

    Sequences (flash series)

  • Flash release

    Manual release button, photocell may be switched off, IR receiver may be switched off, sync cable, FCM 2, FCC, IRX2, IRQ, RFS Transmitter, RFS Transceiver

  • Remote control

    With integrated 10 channel RFS interface (Radio Frequency System) for the remote control of the unit by radio via transceiver RFS from PC or Macintosh computer. Each channel (studio) can control up to 10 units.

  • Operational distance outdoors

    Up to 50 m

  • Operational distance in closed rooms

    Up to 30 m

  • Range

    Up to 300 m

  • Number of sync sockets

    1 (instead of the second sync socket there is the radio antenna)

  • Stabilized flash voltage

    +/- 1%

  • Power requirements

    200-240 V / 50 Hz: 10 A
    110-120 V / 50-60 Hz: 16 A
    100 V / 50 Hz: 16 A

  • Dimensions (L x W x H)

    280 x 162,7 x 272 mm

  • Weight kg

    5.8

About Broncolor Broncolor Topas A2 RFS 100-240 V 1600 Ws Power Pack with 2 Head Outlets, Symmetrical and Asymmetrical.

Microprocessor controlled power pack with 2 lamp base connections. Automatic adaptation to the respective mains (AC-line) voltage. Flash energy 1600J (Japanese version 1200J). Symmetrical and variable individual (asymmetrical) output distribution. Control range: over 6 f-stops in 1/10 f-stop intervals; when switching over to asymmetrical mode 7,3 f-stops. Internal discharge when power setting is reduced. Photocell (can be switched off) and separate infrared receiver (can be switched off). Illuminated silicone keyboard and LED-display, resistant to dust and scratches.

Modelling light with 5 proportionality levels, adjustable to all Broncolor power packs and compact units. Ready display visual and audible. Dim-function of the modelling light during charging. Ready buzzer (can be switched off). Can be switched to slow charging mode. High repetitive precision for digital photography. Compatible with the entire Broncolor lamp base range.

The power pack is equipped with a switching mechanism to approach a stabilization of the color temperature (CTC light). Thereby in the symmetrical mode the color temperature can be maintained steady over a range of approx. 3 f-stops within +/-150 K. Integrated RFS interface (Radio Frequency System) for remote control respectively flash release of the unit by radio via a transmitter RFS as well as by means of a transceiver RFS from PC or Macintosh computer. When controlling via screen, 4 storage spaces for different lighting situations are at your disposal.

What's in the box:

  • Broncolor Power Pack with Integrated RFS Interface
  • Item Note: Missing Mains Cable; Dust Cover
