Used BZB GEAR BG-ND PTZ 30x Zoom Full HD NDI/HDMI/3G-SDI Live Streaming Camera with POE, Gray

SKU: US1580640 MFR: BG-ND-30XHSRP
Earn VIP Reward Points

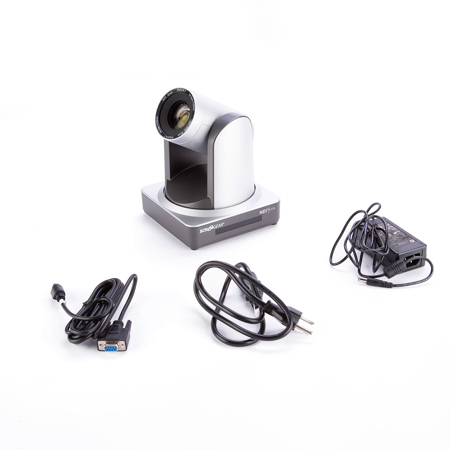

What`s in the box:

  • BG-ND PTZ 30x Zoom Full HD NDI/HDMI/3G-SDI Live Streaming Camera with POE (Gray)
  • Power Supply
  • RS232 Control Cable
See more

Key Features

  • Capture stunning detail with the BG-ND PTZ camera's powerful 30x optical zoom for any live event.
  • Enjoy versatile connectivity with NDI, HDMI, and 3G-SDI outputs for seamless integration.
  • Stream like a pro using this PTZ camera with Full HD resolution, perfect for broadcasts.
  • Remotely control pan, tilt, and zoom functions for dynamic video production with ease.
  • Experience superior video quality even in low light with advanced noise reduction tech.
  • Use PoE to simplify setup, providing both power and data through a single network cable.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

BZB GEAR BG-ND Specifications

Camera Parameters

Camera Parameters

Jump to...
  • Optical Zoom

    30X f=4.3-129mm

  • View Angle

    2.34 Degree (tele), 65.1 Degree (wide)

  • AV

    F1.6 - F4.7

  • Sensor

    1/2.8" high quality HD CMOS sensor

  • Effective Pixels

    16: 9 2.07 megapixel

  • Video Format

    HDMI/SDI: 1080P60 / 50 / 30 / 25 / 59.94 /29.97; 1080I60 / 50 / 59.94; 720P60 / 50 / 30 / 25 / 59.94 / 29.97

  • Minimum Illumination

    0.5Lux (F1.8, AGC ON)

  • DNR

    2D & 3D DNR

  • White Balance

    Auto / Manual / One Push / 3000K / 4000K / 5000K / 6500K

  • Focus

    Auto/Manual

  • Aperture

    Auto/Manual

  • Electronic Shutter

    Auto/Manual

  • BLC

    ON/OFF

  • WDR

    OFF/ Dynamic level adjustment

  • Video adjustment

    Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve

  • SNR

    >55dB

Input/Output Interface

Jump to...
  • Image code stream

    Double streams outputs simultaneously

  • Video Compression format

    H.264, H.265

  • Control Signal Interface

    RS-232 Ring through RS232 output, RS-485

  • Control Protocol

    VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/ 9600/ 4800/ 2400bps

  • Audio input Interface

    Double track 3.5mm linear input

  • Audio Compression Format

    AAC/MP3/PMC Audio compression

  • HD IP Interface

    100M IP port (100BASE-TX); 5G WiFi (optional), support NDI & IP Visca control protocol

  • Network Protocol

    NDI, RTSP/RTMP,ONVIF

  • Power Interface

    HEC3800 outlet (DC12V)

PTZ Parameters

Jump to...
  • Pan Rotation

    +/-170 Degree

  • Tilt Rotation

    -30 Degree -+90 Degree

  • Pan Control Speed

    0.1 -180 Degree /sec

  • Tilt Control Speed

    0.1-80 Degree /sec

  • Preset Speed

    Pan: 60 Degree /sec, Tilt: 30 Degree /sec

  • Preset Number

    255 presets (10 presets by remote controller)

Other Parameters

Jump to...
  • Supply Adapter

    AC110V-AC220V to DC12V/2A

  • Input Voltage

    DC12V +/-10%

  • Input Current

    1A (Max)

  • Consumption

    12W (Max)

  • Temperature

    Storage: 14 Degree F - 140 Degree F (-10 Degree C- 60 Degree C)
    Working: 14 Degree F - 122 Degree F (-10 Degree C- 50 Degree C)

  • Humidity

    Storage: 20%-95%
    Working: 20%-80%

  • Working Environment

    Indoor

  • Remote Operation (IP)

    Remote Upgrade, Reboot and Reset

Physical

Jump to...
  • Color

    Gray

  • Dimensions

    5.9 x 5.9 x 6.5" (150 x 150 x 167.5mm)

  • Weight

    3 lbs (1.4kg)

About BZB GEAR BG-ND PTZ 30x Zoom Full HD NDI/HDMI/3G-SDI Live Streaming Camera with POE, Gray

For professionals seeking a versatile and high-performance live streaming solution, the BZB GEAR BG-ND Full HD NDI/HDMI/3G-SDI Live Streaming 30x PTZ Camera in Gray is an exceptional choice. This advanced camera is designed to deliver stunning 1080P resolution at 60Hz, ensuring crisp and vivid imagery that meets the demands of modern video production environments.

Equipped with a powerful 30x optical zoom and an additional 10x digital zoom, this camera allows for detailed close-ups even from a considerable distance, making it ideal for a variety of applications such as studio recordings, remote education, healthcare, houses of worship, sports events, and concerts. The BG-ND series is compatible with a wide range of video software and hardware, enhancing its flexibility and usability.

One of the standout features of this camera is its support for NDI|HX technology, which facilitates seamless IP streaming to multiple devices and platforms without overwhelming bandwidth. The NDI|HX protocol is renowned for its low latency, multi-GPU acceleration, and support for advanced compression formats, all of which contribute to a smooth and efficient video production process. Additionally, the camera's ability to operate over a wireless network simplifies the setup, eliminating the need for cumbersome cables and enabling easy deployment, management, and scaling of video production, streaming, and conferencing applications.

The BZB GEAR BG-ND camera offers three simultaneous video outputs: HDMI, 3G-SDI, and NDI/IP streaming, providing flexibility in how you connect and share your content. It supports the latest streaming technologies, including H.264 and H.265 video compression, as well as the RTMP(S) network protocol, making it perfect for live streaming on platforms like YouTube and Facebook.

With its superb auto-focus capabilities, the camera utilizes the latest algorithms to ensure quick, accurate, and stable focus, enhancing the quality of your broadcasts. The adoption of NDI 4.0 from NewTek further solidifies its position as a cutting-edge tool for professional video production.

The camera's interface includes HDMI for crystal-clear images at resolutions up to 1080p at 60 fps, and SDI for high-quality video transmission over distances up to 300 feet. Control options are extensive, featuring an 8-pin Mini-DIN input for RS-232 control, output for cascadable connections, and an RS-422/485 interface. Additionally, the NDI interface supports Power over Ethernet, IP control, and streaming, while the stereo audio input allows for the integration of local audio into all four video output interfaces.

Ideal for event businesses, doctors, pastors, and other professionals, the BZB GEAR BG-ND Full HD PTZ Camera is a comprehensive solution that meets the diverse needs of today's dynamic video production landscape.

BZB GEAR BG-ND PTZ 30x Zoom Full HD NDI/HDMI/3G-SDI Live Streaming Camera with POE, Gray Features

  • Compatible with all NDI tools from NewTek: NDI Studio Monitor, NDI Scan Converter, NDI Virtual Input and other
  • POE - Deliver power directly over ethernet cable from your POE enabled network switch
  • Crystal Clear Image -1/2.8in 2.07 megapixel Low-Noise CMOS sensor insures High SNR (Signal to Noise Rate). Resolution up to 1080p@60fps
  • Wide FOV: Field of view up to 65.1 Degree - enough for the whole room
  • Add a Mic - supports stereo audio input and embedding
  • Extremely quiet - using high quality step driving motor and precise motor drive controller ensures whisper quiet and smooth rotation and zooming
  • Rich Network Protocol Support - NDI for Video over IP distribution, RTMP and RTMPS for Youtube, Facebook live streaming or other CDN. RTP and RTSP for media streaming. ONVIF and GB/T28181 - for your security applications, VISCA - to enable control

Warranty Information

This used item has a FREE 180-day warranty. See details.

Key Features

  • Capture stunning detail with the BG-ND PTZ camera's powerful 30x optical zoom for any live event.
  • Enjoy versatile connectivity with NDI, HDMI, and 3G-SDI outputs for seamless integration.
  • Stream like a pro using this PTZ camera with Full HD resolution, perfect for broadcasts.
  • Remotely control pan, tilt, and zoom functions for dynamic video production with ease.
  • Experience superior video quality even in low light with advanced noise reduction tech.
  • Use PoE to simplify setup, providing both power and data through a single network cable.
