Chroma-Q Lighting Console Specifications

  • Power supply

    12VDC +/-10% 2A

  • Power consumption

    24W max

  • Mains connector

    5.5/2.1mm coaxial DC power socket

  • Processor

    Atmel ARM9

  • DRAM

    128MB

  • FLASH

    256MB

  • Ambient temperature

    32 Degree F to -40 Degree F (0 Degree C to -40 Degree C)

  • Graphics Display

    4.3" (11cm) (480x272) TFT

  • Touch screen

    Resistive

  • Maximum Fixtures

    24

  • DMX512

    5 pin AXR

  • Ethernet

    100Mbit RJ45

  • USB

    Two Type A High Speed

  • VESA Mount

    100 x 100mm

  • Dimensions

    20.47 x 11.8 x 2.75" (520 x 300 x 70mm)

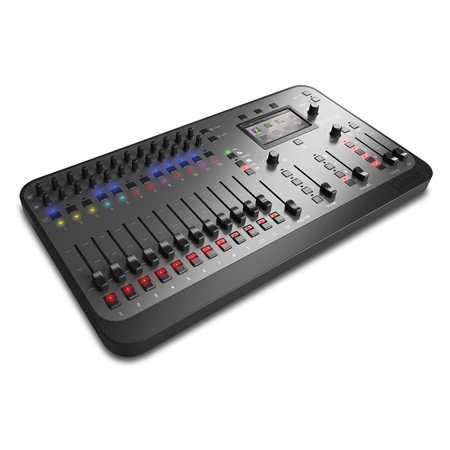

About Chroma-Q Stage CL Lighting Console 512-Channel - SKU#1660514

Take your lighting control to the next level with the Jands Stage CL Lighting Console, a state-of-the-art device designed for the precise control of intensity-only fixtures and multi-color LEDs. This console is meticulously engineered to simplify the control of full-color LED fixtures, making it an ideal choice for users of all skill levels, from novices to seasoned professionals.

The Stage CL Lighting Console is a versatile tool, perfect for a wide range of applications. It's the go-to choice for rental companies, corporate event suppliers, educational institutions, community theatres, and Houses of Worship. This console is designed to provide comprehensive control of up to 24 LED and/or intensity-only fixtures, making it a robust solution for diverse lighting needs.

Equipped with 12 fixture control channels, the Stage CL Lighting Console offers an array of controls including an intensity fader, Hue and Saturation controls, a select button, and a full-color RGB mimic LED. This console also allows for the control of a limited number of non-color parameters, offering you a broad spectrum of lighting possibilities.

The Stage CL Lighting Console is designed for efficiency and ease of use, featuring dedicated scene, chase, and cuelist controls for quick access. The console's design incorporates multicolor LED indicators to provide clear and immediate console feedback.

Programming on the Stage CL Lighting Console is a breeze, thanks to an integrated full-color TFT LCD touch screen. This console also boasts a DMX port, Ethernet ports compatible with Artnet and sACN receivers, and USB ports for use with standard USB FLASH drives, making it a comprehensive solution for all your lighting control needs.

In summary, the Jands Stage CL Lighting Console 512-Channel with Edison Power Lead is a powerful, user-friendly, and versatile tool that offers precise and comprehensive control over your lighting fixtures.

Chroma-Q Stage CL Lighting Console 512-Channel - SKU#1660514 Features

  • Dedicated color controls per fixture
  • 24 Fixtures in two pages of 12
  • Integrated RGB mimic LED per channel
  • Single Preset operation
  • Dedicated scene controls
  • Dedicated cuelist and controls
  • One-touch chase programming
  • Both single color and striped Presets
  • Dedicated chase controls and flexible operation modes
  • Fixtures libraries can be built on the console
  • Software Updatable without opening the chassis
  • DMX-512 and Ethernet (Artnet, sACN) output
  • 480x272 pixel TFT graphics touch screen
  • Audio trigger from inbuilt microphone
  • Tap synchronisation of chases
  • Backup to USB Flash drive
  • Spreadsheet style patch
  • Multiple color fan modes
  • High speed ARM9 processor
  • Universal input DC power supply
  • Ethernet port including indicator LEDs
  • Storage for multiple shows in the console
  • Power switch and indicator LED
  • Integrated cable retention
  • Kensington lock point
  • VESA mount enables mounting on standard monitor arms
  • Integrated carry handle

What's in the box:

  • Stage CL Lighting Console 512-Channel with Edison Power Lead
  • Original Box
