2022-03-15T08:14:13

Rated 5 out of 5

Awesome alternative to teredek

Great. Little to no latency. Clear picture.

JAHZIKIEL D.

2018-12-20T01:25:43

Rated 5 out of 5

cinegears

really nice , working very well, i buying again

LUCIANO M.

2018-09-20T12:56:21

Rated 1 out of 5

Worthless

I gave it one star because I couldn’t give it zero stars It won’t give a Clean picture with Clean audio on any of the 10 Chanel’s We were all the way down to 50 feet apart and still got a lot of distortion

LAVOY S.

2018-09-04T10:17:16

Rated 4 out of 5

Cinegears ghost v2 rx/rx

Connects well and quickly, but doesn’t hold good signal more than 100’. So not a great recommendation.

JOHN Y.

2017-10-31T11:10:59

Rated 5 out of 5

Excellent quality and has withstood the rigor of a Hollywood rental house

Excellent range. Good quality product. It just works!! And it's withstood the test of time of being rented out of a rental house. Pro's seem to love. Easily comparable to a Teradek Bot 1000.

Robert M.

Cinegears Ghost-Eye 150M V2 Kit Specifications

  • Transmitter: Interface

    SDI Input(BNC Female); HDMI Input(Type A female); 2 Antenna port(PR-SMA male); DC input

  • Transmitter: Supply Voltage Range

    6.5-16.8V DC

  • Transmitter: Transmission Range

    > up to 300 meters/984 ft.

  • Transmitter: Power Consumption

    <5.5W

  • Transmitter: Input Video Format

    SDI:3G,HD SD-SDI(Auto/Manual-Selected): 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60
    HDMI Type A: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60;SMPTE 259/274/292/296/372/424/425

  • Transmitter: Video Processing ColorDepth

    8bit; 10 bit; (4:0:0); (4:2:2); (4:4:4)

  • Transmitter: Input Audio Format

    SDI embedded 2 channel 24 bit/48Khz

  • Transmitter: Signal Indicator

    POWER-Green; VIDEO-Yellow

  • Transmitter: Frequency Band

    5.1-5.9GHz, configurable with China, North American, Europe, etc.

  • Transmitter: Modulation Mode

    OFDM 16QAM

  • Transmitter: Transmission Power

    <18dBm

  • Transmitter: Occupied Bandwidth

    40MHz

  • Transmitter: Temperature Range

    Operating Condition: 0 - 40 Degree C (32 - 104 Degree F)
    Storage: -20 - 60 Degree C (-4 - 140 Degree F)

  • Transmitter: Trans. Cross Capability

    Ghost-Eye 100M; 150M; 300M; 400M

  • Transmitter: Compliance

    FCC; CE; RoHS

  • Transmitter: Dimensions (L x W x H)

    115 x 67 x 23mm (4.52 x 2.63 x 0.90") (does not include antennas)

  • Transmitter: Mass Weight

    270g (0.59 lbs)

  • Receiver: Interface

    SDI Output(BNC Female); HDMI Output(Type A female); DC input

  • Receiver: Supply Voltage Range

    6.5-16.8V DC

  • Receiver: Transmission Range

    >up to 300 meters/984 ft.

  • Receiver: Power Consumption

    <6.5W

  • Receiver: Input Video Format

    SDI:3G,HD SD-SDI(Auto/Manual-Selected): 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60
    HDMI Type A: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60;SMPTE 259/274/292/296/372/424/425

  • Receiver: Output Video Format

    SDI:3G,HD SD-SDI(Auto/Manual-Selected): 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60
    HDMI Type A: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60;SMPTE 259/274/292/296/372/424/425

  • Receiver: Video Processing Color Depth

    8bit; 10 bit; (4:0:0); (4:2:2); (4:4:4)

  • Receiver: Output Audio

    SDI embedded 2 channel 24 bit/48Khz

  • Receiver: Signal Indicator

    POWER-Green; Wireless RSSI-Blue(4 LEDs); POWER/VIDEO-Yellow

  • Receiver: Frequency Band

    5.1-5.9GHz,configurable with China, North American, Europe, etc.

  • Receiver: Modulation Mode

    OFDM 16QAM

  • Receiver: Receiver Sensitivity

    -75dBm

  • Receiver: Occupied Bandwidth

    40MHz

  • Receiver: Temperature Range

    0-40 Degree C (operating condition); -20-60 Degree C (Storage)

  • Receiver: Transmission Cross Capability

    Ghost-Eye 100M; 150M; 300M; 400M

  • Receiver: Compliance

    FCC; CE; RoHS

  • Receiver: Dimensions (L x W x H)

    152 x 95 x 23mm (5.98 x 3.74 x 0.90")

  • Receiver: Mass Weight

    355g (0.78 lbs)

About Cinegears Ghost-Eye 150M V2 Wireless HD & SDI Video Transmission Kit, 984'

Cinegears Ghost-Eye wireless video transmission systems are already on thousands of film sets around the globe. With all the cutting edge features packed into the compact transmitters and receivers, the choice is clear: keep watch over your shot with Ghost-Eye. The Ghost-Eye M-series provides the best solution for video and audio transmission for film and television making professionals on set and in post-production.

No compromise for quality; your video and audio signals get sent at industry-leading speeds from A to B (or from A to B, C, D, and E with built-in point-to-multipoint topology) with zero compression. Your signal will arrive in all its 10-bit, 4:2:2, 1080p, 60fps glory; don't miss a single frame! Broadcast from virtually any SDI or HDMI output you can find, and have your signal received by an unlimited number of Ghost-Eye receivers of any model!

With a 3-year warranty and firmware upgrade guarantee, your Ghost-Eye units will always function at peak performance.

Ghost-Eye 150M Wireless Video Transmission kit

Avoid the clutter and headache of cables with the Cinegears Ghost-Eye 150M Wireless Video Transmission System; one Ghost-Eye Wireless Video Transmitter 150M, and one Ghost-Eye Wireless Video Receiver 150M.

Up to 300 meters/984 ft. of high fidelity, uncompressed HD video transmission, feel free as you shoot indoors or out, night or day. With both 3G and HDMI inputs and outputs, and 10 workable transmission frequencies (using an unlimited number of receivers simultaneously), you will utilize the current cutting edge of video transmission, adding a professional quality to your project.

The Cinegears Wireless HD/SDI HD Video Transmission system is an affordable and effective solution, requiring no technical skills and virtually no learning curve to operate. Cinegears focus on creating technologies that include the most effective, reliable, and affordable solutions. With simple and elegant design, Cinegears makes sure you're always in focus.

150M Wireless HD Video Transmitter

INPUT: HDMI, HD SDI
2 External paddle antenna

With the Cinegears Ghost-Eye Wireless HDMI & SDI Transmitter 150M, transmit high fidelity, uncompressed HD video transmission from up to 150m, and feel free as you shoot indoors or out, night or day. With both 3G and HDMI inputs and outputs, and 10 workable transmission frequencies (using an unlimited number of receivers simultaneously), you will utilize the current cutting edge of video transmission, adding a professional quality to your project. Ghost-Eye Wireless Video Receiver 150M required for full feature utilization.

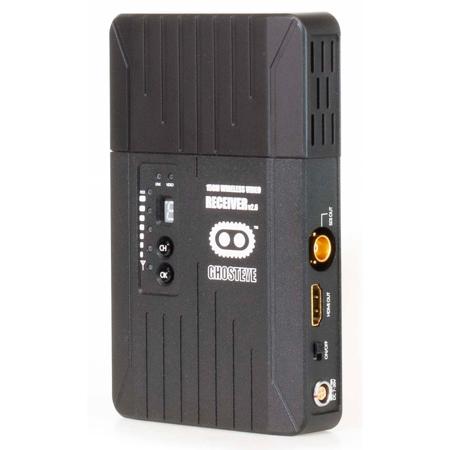

150M Wireless HD Video Receiver

OUTPUT: HDMI, HD SDI
Internal directional antenna

With the Cinegears Ghost-Eye Wireless HDMI & SDI Receiver 150M, receive high fidelity, uncompressed HD video transmission up to 300 meters/984 ft., and feel free as you shoot indoors or out, night or day. With both 3G and HDMI inputs and outputs, and 10 workable transmission frequencies (using an unlimited number of receivers simultaneously), you will utilize the current cutting edge of video transmission, adding a professional quality to your project. Ghost-Eye Wireless Video Transmitter 150M required for full feature utilization.

Cinegears Ghost-Eye 150M V2 Wireless HD & SDI Video Transmission Kit, 984' Features

  • Uses License-Free 5GHz ISM frequency band, maximum 10 frequency channels manual selection, Coexist with WIFI
  • Supports wireless 10 bit HD video with no compression and no delay up to 150-300 meters/ 492-984 ft.
  • Uncompromising picture quality with very low latency less than 1ms
  • Supports point to point, and point to multi points network topology, multiple receiver is supported with an unlimited number of receivers
  • Cross compatibility between Cinegears Ghost-eye 100M, 300M, and 400M transmitter and receivers
  • Highest resolution 10bits color depth 4:2:2, 1080p 60FPS HDMI and SD/HD/3G SDI input and output, HDMI - SDI cross conversion is supported
  • Support professional audio formats include Dolby True HD, DTS-master, etc.
  • AES-128 encryption with air interface HD video data stream
  • Wide range power voltage input, adapts most kinds of camera batteries, optional Standard V-mount, Anton Bauer, or 1/4 bolt Mount battery plate can be installed
  • Sony F970 battery buckle, convenient for field battery install and replacement
  • Any input and output ports with +/-8 kV ESD protection level (HBM, contact discharge)
  • Plug & Play- full hardware design, no software is required
  • Professional standard 2-pin LEMO power plugs
  • Built with industrial metal case that is both sturdy and reliable
  • RX (Receiver) built-in directional antenna
  • Signal indicators for wireless power status, Video status and receiver RSSI
  • Water and mist proof, shock proof production case with form insert ready for traveling
  • CE, FCC, RoHS certified product, safe to use worldwide

What's in the box:

  • 150M Video Transmitter
  • 150M Video Receiver
  • 2x Paddle Antennas
  • 2x 2-Pin Lemo Power Cable for 150M System
  • 2x Flathead Hex Tools
  • 1x 15mm-27mm Mounting Bracket
  • Waterproof Foam Case for Ghost Eye 150M
  • Item Note: Missing 1x 15mm-27mm Mounting Bracket
