Review Summary
12
8
Yes
Yes
Yes
Yes
Yes
Yes
No
No
For Business audio conferencing: No
Yes
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes

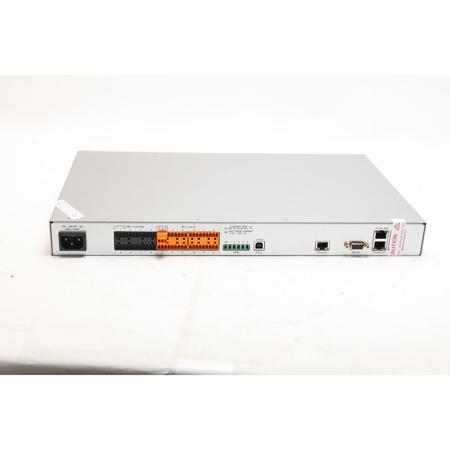

Balanced audio inputs, 3.81mm Orange color Phoenix/Euroblock type male header, Push-on mini-terminal block
Balanced audio outputs, 3.81mm Black color Phoenix/Euroblock type male header, Push-on mini-terminal block
20Hz - 22kHz at +4dBu, +/- 0.5dBu
20kHz BW, max gain, Rs = 150Ohms, -126dBu
20Hz - 22kHz at +4dBu, line level, 0.006%
20Hz - 22kHz at -56dBu, mic level, <0.04%
20Hz - 20kHz at 0dB, >105dB
Channel to Channel, stimulus at 20dBu to receptor at -56dBu, 1kHz, < -98dB
Balanced (line to ground), 2.2kOhms, 1%
Adjustable -56dB to 0dB, 7dB step coarse gain
-65dBu to 20dBu
48V, Impedance 6.81kOhms
Balanced (line to ground), 95Ohms, 1%
0dBu (Nominal), 20dBu (Max), -40dBu (Selectable)
USB-B connector
Digital Audio, 2 x 2 bidirectional channels
48kHz
24-Bit
USB 2.0
USB 3.0
RJ-45, 10/100Mbps Ethernet Network, Auto Negotiation
IPv4 (IPv6 upgradeable through future s/w, f/w upgrade)
RJ-45 (Cat5e or Cat6)
Proprietary Expansion Bus
64 Expansion channels
Solid core, factory terminated Cat 5e or 6 cable
Up to 150' (45M)
RJ-45 (Cat5e or Cat6)
Proprietary Peripheral Bus
P-Link In Port
PoE 802.3af Mode B, Midspan
Power on "spare pairs" 4,5 and 7,8
Input voltage range: 48V to 56V
Up to 3 Beamforming Microphone Array 2 units + up to 3 DIALOG 20 Wireless Receiver units + Up to 3 USB Expander units + Up to 3 GPIO Expander units
Solid core, factory terminated Cat 5e or 6 cable
Up to 200' (60.96m)
Increases P-Link distance from 200 Ft to 650 Ft 650 Ft (200M) maximum cable distance between any two units Cat6, 550 MHz, 23 AWG, solid conductor cable
Do not use Copper Clad Aluminum (CCA) cable
Available only for BFM2 peripheral units
48V PoE Midspan Mode B power injector for 1 BFM2 unit
56V PoE Midspan Mode B power injector for 3 BFM2 units
DB9 Female
9600/19200/38400/57600/115200 Baud; Serial Echo; Flow Control
Serial commands
5.08mm Green color Phoenix/Euroblock type male header
Control, Status, Variable Voltage Control
5V DC at 350mA Power Source
Open Collector Outputs: 40VDC at 250mA
Active Outputs (Source/Sink): 5VDC at 25mA
Logic Inputs: 40.2kOhms pull up
Variable Voltage Control Inputs: 5VDC max
GND
USB-B connector
Front Panel
USB 2.0
USB 3.0
Front Panel
Off: Unit still initializing
Blue - Fast Blinking: Stack Syncing in progress
Blue - Slow Blinking: Unit not configured
Blue - Solid: Configured unit
Red - Fast Blinking: Stack Sync error
Blue - Blinking: Unit "Locate" command received
Blue - Solid: Unit is powered on
Capacitive Touch Button
Front Panel
AC Inlet
100-240V AC, 50/60Hz
50 Watts Typical
170 BTU/Hr Typical
14 deg. F (-10 deg. C) to 104 deg. F (40 deg. C) Ambient Temperature
1 RU
Without rack-ears: 17 x 10.73 x 1.72" (43.18 x 27.25 x 4.37cm)
With rack-ears: 19 x 10.73 x 1.72" (48.26 x 27.25 x 4.37cm)
9.3 lbs (4.22kg) (Approximately)
If you're seeking a sophisticated and advanced solution for your professional audio needs, look no further than the CONVERGE Pro 2 DSP Mixer. This high-quality, innovative device is the industry's leading professional audio DSP platform, designed for both conferencing and sound reinforcement applications.
The CONVERGE Pro 2 excels in any room size, audio environment, and application, making it a versatile choice for your audio needs. This model boasts 12 mic/line inputs with Acoustic Echo Cancellation (AEC), 8 mic/line outputs, and built-in USB audio for seamless PC-based conferencing.
In addition to its powerful architecture, the CONVERGE Pro 2 offers scalable connectivity. You can stack units to achieve up to 144 mic/line inputs and utilize the "C-Link" expansion bus with 64 channels. The "P-Link" bus allows you to connect peripheral devices with ease.
The device's configuration and management are simplified with the new CONSOLE software, which features auto-discovery of devices, MatrixView for the entire system, and FlowView for visualized audio signal paths. This makes system monitoring and troubleshooting a breeze.
The CONVERGE Pro 2 is equipped with next-gen Acoustic Echo Cancellation processing, Distributed Echo Cancellation on every mic input, and Noise Cancellation with Adaptive-Ambience. It also features Acoustic Intelligence with faster convergence, DARE feedback elimination, and advanced microphone gating.
This DSP mixer is perfect for PC-based conferencing and Unified Communications, as well as video codec-based Video Conferencing. It offers flexible control options, including a dialer app for Windows, Mac, iOS, Android, and a Touch Panel Controller with tabletop and wall mount options.
The CONVERGE Pro 2 is also optimized to work with the new Beamforming Mic Array 2 and DIALOG 20 2-Channel Wireless Microphone System through its native connection, making it a comprehensive solution for your professional audio needs.
