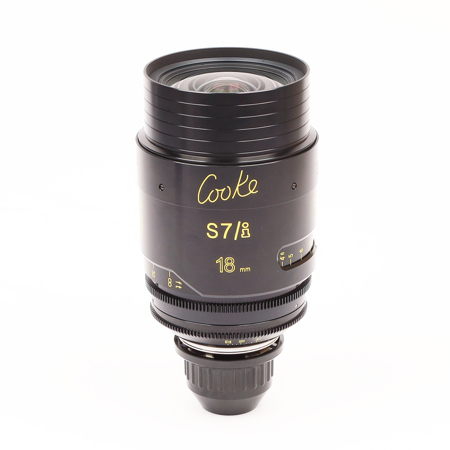

Used Cooke 18mm T2.0 S7/i Plus Prime Lens for PL Mount

SKU: US1796696

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Cooke S7/i Specifications

  • Focal Length

    18mm

  • T Stop Range

    T2-T22

  • Angular Rotation of Iris Scale

    90 Degree

  • Marked Object Distance

    Minimum: 16" (400mm)

  • Close Focus from Lens Front

    6" (158mm)

  • Angular Rotation to MOD Endstop

    270 Degree

  • Diagonal Angle of View

    Maximum: 78 Degree (Super 35 Format)
    Maximum: 100 Degree (24 x 36mm Format)

  • Format Cover

    Maximum: 1.82" (46.31mm) (Diameter)

  • Focus Scales

    Two opposing focus scales - metric & footage. Scales marked from infinity to MOD

  • Focus Drive Gear

    140 teeth 0.8 metric module x 6.0mm wide 103mm from the image plane

  • Iris Scales

    Two opposing linear T scales - whole and third stops marked

  • Iris Drive Gear

    134 teeth 0.8 metric module x 4.0mm wide x 81mm from image plane

  • Dimensions (Dia. x L)

    4.33 x 7.87" (110 x 200mm)

  • Weight

    7.7 lbs (3.5kg)

About Cooke 18mm T2.0 S7/i Plus Prime Lens for PL Mount - SKU#1796696

Enhance your photography and videography experience with the high-quality 18mm T2.0 S7/i Plus Prime Lens for PL Mount. This professional-grade lens, designed by the renowned brand Cooke, is engineered to cover full frame cinema camera sensors up to at least 46.31mm image circle, making it versatile enough to shoot in various formats from 35mm to VistaVision.

Experience the unique Cooke Look, known for its excellent optical and mechanical performance. This lens offers superior control of flare, veiling glare, distortion, and spherical aberrations at full aperture, ensuring reliable and consistent results.

The lens is color-matched to Anamorphic/i, S4/i, miniS4/i, 5/i, and Panchro/i Classic lenses, ensuring practical and seamless integration into your existing equipment. It also comes equipped with the next generation of /i Technology for automatic lens metadata capture, providing vital information on lens setting, focusing distance, aperture, and depth-of-field, among other details.

This lens is a product of handcrafted innovation, with traditional polishing techniques used to achieve the highest level of precision. More insights and measurements are taken than ever before to ensure superior quality. The glass is coated with evaporated minerals at a high temperature in a vacuum to create a thin film, and edging is carried out to ensure that glass diameters are perfectly round.

The lens features a large, clear focus scaling on both sides of the focus barrel, benefiting the focus puller when shooting under difficult lighting conditions. The Entrance Pupil position is also engraved on the lens.

All Cooke S4/i Primes have a common fixed front diameter of 110mm, with a focus drive gear of 140T x 0.8 mod and an iris drive gear of 1147 x 0.8. The lenses are color balanced, color-matched, and compatible with Cooke 5/i, miniS4/i, and Anamorphic/i.

The lens is finished with a scratch-resistant PTFE hard anodized finish, providing a durable, hard-wearing surface to meet the most demanding environmental conditions. It has a true T2 aperture and covers Super 35mm format, with an eight-leaf linear module iris assembly fitted into S4/i primes with an aperture range of T2 to T22.

Every index mark is labeled, allowing for more detailed focus control. The lens also features an Academy Award-winning cam-style focus movement, coupled with a large lens barrel diameter, for an increased number of focus markings, particularly at close focus.

Designed for all shooting applications, including handheld and Steadicam, this lens provides a comfortable balance ratio with the latest compact cameras. It comes with a Cooked Hardened PL Mount with /i Technology contacts, ensuring reliability and easy service.

The 18mm T2.0 S7/i Plus Prime Lens for PL Mount is a durable, reliable, and versatile choice for professionals seeking to elevate their photography and videography skills.

Cooke 18mm T2.0 S7/i Plus Prime Lens for PL Mount - SKU#1796696 Features

  • 18mm - T2.0 - T22 apeture
  • Covers at least 46.31mm image circle
  • Color matched to Anamorphic/i, Anamorphic/i Full Frame, S4/i, miniS4/i, 5/i and Pancro/i Classic lenses
  • Award-winning cam style mechanism for smooth focus adjustments
  • Especially well balanced for astigmatism and correct for lateral and longitudinal aberrations over the entire image area
  • Supplied with the next generation of /i Technology for lens metadata capture
  • Linear iris
  • The Cooke Look, of course

What's in the box:

  • Cooke 18mm T2.0 S7/i Full Frame Plus Prime Lens
  • Front Cap
  • Rear Lens Cap
  • Item Was Not Fully Tested
