Cooke Anamorphic/I 1.8x Specifications

  • Focal Length

    40mm

  • T Stop Range

    T2.3-T22

  • Angular Rotation of Iris Scale

    90 Degree

  • Marked Object Distance

    Minimum: 35" (900mm)

  • Close Focus from Lens Front

    25" (630mm)

  • Angular Rotation to MOD Endstop

    270 Degree

  • Diagonal Angle of View

    Maximum: 89 Degree (Super 35 Format)

  • Format Cover

    Maximum: 1.41 x 0.94" (36 x 24mm)

  • Focus Scales

    Two opposing focus scales - metric & footage. Scales marked from infinity to MOD

  • Focus Drive Gear

    140 teeth 0.8 metric module x 6.0mm wide 102mm from the image plane

  • Iris Scales

    Two opposing linear T scales - whole and third stops marked

  • Iris Drive Gear

    134 teeth 0.8 metric module x 4.0mm wide x 82mm from image plane

  • Dimensions (Dia. x L)

    5.35 x 8.3" (136 x 212mm)

  • Weight

    9.7 lbs (4.4kg)

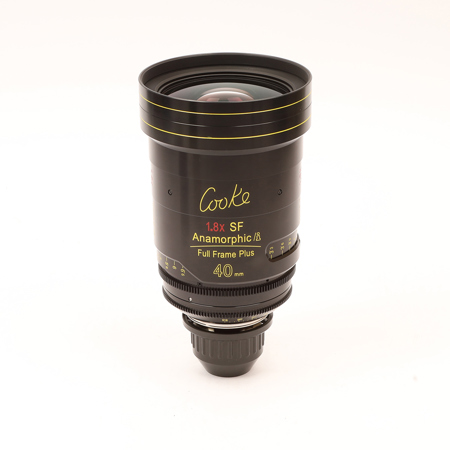

About Cooke 40mm T2.3 Anamorphic/i 1.8x Plus SF Prime Lens for PL Mount - SKU#1783367

While embracing the artistry of anamorphic cinematography, the 40mm T2.3 Anamorphic/i 1.8x Plus SF Prime Lens for PL Mount stands as a pinnacle of professional lens design, offering filmmakers and photographers the ability to capture expansive, high-resolution images with a distinct anamorphic aesthetic. This high-quality, durable lens is engineered to cover a full 24 x 36mm still size sensor, maximizing the use of today's full-frame camera capabilities.

The lens's 1.8x anamorphic squeeze factor hits the sweet spot between the excessive pixel loss of a 2x squeeze and the insufficient anamorphic character of a 1.6x squeeze. This optimal balance ensures a compelling anamorphic feel while preserving about 90% of the pixels when shooting at a 2.4:1 aspect ratio. For those seeking to utilize the entire sensor area, shooting at 2.7:1 delivers the full frame and 100% pixel utilization, ensuring that every detail is captured with precision.

With a wide T2.3 aperture, this lens excels in various lighting conditions, granting cinematographers the versatility to create shallow depth of field effects and shoot in lower light environments without compromising image quality. The professional-grade optics provide superb control over flare, distortion, veiling glare, and spherical aberrations even at full aperture, which is essential for maintaining image integrity and achieving the desired cinematic look.

The lens's cam-type focus mechanism is designed for smooth, precise focus adjustments, making it a reliable tool for capturing crisp, clear images. Its modular construction not only enhances durability but also simplifies maintenance and serviceability, ensuring that the lens can withstand the rigors of professional use.

Equipped with Cooke's /i Technology, the Anamorphic/i Full Frame Plus SF Prime Lens captures frame-by-frame digital information, a feature shared by all modern Cooke cine lenses. This technology facilitates seamless integration with film and digital capture workflows, making it a versatile choice for industry professionals.

In summary, the 40mm T2.3 Anamorphic/i 1.8x Plus SF Prime Lens for PL Mount is a testament to Cooke's legacy of producing reliable, professional-grade lenses that meet the exacting demands of photography and filmmaking. Its unique anamorphic qualities and exceptional optical performance make it a standout choice for creators seeking to elevate their visual storytelling.

Cooke 40mm T2.3 Anamorphic/i 1.8x Plus SF Prime Lens for PL Mount - SKU#1783367 Features

  • Coverage circle covers a full 24 x 36 still size sensor with 1.8 squeeze
  • Superb optical and mechanical performance, control of flare, distortion, veiling glare and spherical aberrations at full aperture
  • Modular construction increases ease of maintenance and serviceability
  • Anamorphic/i Full Frame Plus lenses come equipped with /i Technology

What's in the box:

  • Cooke 40mm T2.3 Anamorphic/i 1.8x Full Frame Plus SF Prime Lens
  • Rear PL Cap
  • Front Lens Cap
