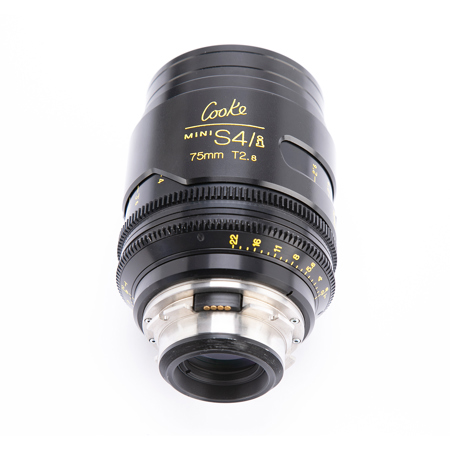

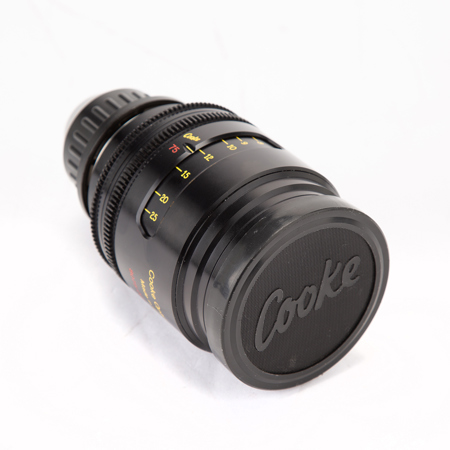

Used Cooke 75mm T2.8 miniS4/i Cine Lens - Focus Scales Marked in Feet - PL Mount

SKU: US1926028 MFR: CKEP 75
$4,289.00
New: $9,200.00
Used Savings: $4911 (53%)
OR
Earn VIP Reward Points

Key Features

  • Capture stunning, cinematic visuals with this 75mm Cooke Cine Lens, perfect for film.
  • Achieve beautiful bokeh with the T2.8 aperture, ideal for shallow depth of field shots.
  • Enjoy robust build quality, ensuring durability for demanding professional environments.
  • Experience precise manual focus, giving you full creative control over your images.
  • This PL Mount lens offers compatibility with a wide range of professional cinema cameras.
  • Get exceptional image quality and clarity across the entire Super 35mm format.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$203.99

3 Year

$318.99

4 Year

$433.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Cooke 75mm T2.8 Specifications

  • T-Stop Range

    T2.8-T22

  • Angular Rotation of Iris Scale

    77 Degree

  • Min. Marked Object Distance

    750 mm / 30 in

  • Close Focus from Lens Front

    564 mm / 22 in

  • Angular Rotation to MOD Endstop

    300 Degree

  • Max Diagonal AOV for Super 35 Format

    22 Degree

  • Length from Front of Lens to Lens Mount

    137mm / 5.39 in

  • Max Front Diameter

    87mm / 3.43 in

  • Total Weight

    1.60 kg / 3.30 lbs

  • Maximum Format Cover

    33.54mm Diameter (New Epic S35mm Format)

  • Focus Scales

    Two opposing focus scales. Scales marked from infinity to MOD.

  • Focus Drive Gear

    121 teeth 0.8 metric module x 5.0 wide x 104 from the image plane.

  • Iris Scales

    Two opposing linear T scales - whole and third stops marked.

  • Iris Drive Gear

    119 teeth 0.8 metric module x 2.5 wide x 84 from image plane.

About Cooke 75mm T2.8 miniS4/i Cine Lens - Focus Scales Marked in Feet - PL Mount

Are you a filmmaker seeking professional-grade, high-quality optics for your next project Look no further than the Cooke 75mm T2.8 miniS4/i Cine Lens for PL Mount. This exceptional lens is part of the renowned Cooke miniS4/i Primes series, offering a versatile range of T2.8 to T22 aperture settings.

Designed to meet the demands of today's filmmakers, this lens is compact and lightweight without compromising on resolution or optical quality. It matches the performance of the S4/i lenses at a T2.8 speed, making it an economical alternative to T2.0. With the rise of digital cameras, T2.8 has become the new standard for professional cinematography.

The Cooke 75mm T2.8 miniS4/i Cine Lens is interchangeable with S4/i and 5/i lenses, making it a versatile addition to your filmmaking toolkit. It's capable of capturing stunning film and digital images up to and beyond a 4K resolution, ensuring your work always looks its best.

This lens is designed for all PL mounted professional motion picture film and electronic cameras, making it a reliable choice for industry professionals. It's equipped with /i Technology, providing cinematographers and camera operators with crucial information on lens setting, focusing distance, aperture, and depth-of-field. It also displays the hyperfocal distance, serial number, owner data, lens type, and focal length in both metric and footage measurements. For zoom lenses, the zoom position is displayed.

In summary, the Cooke 75mm T2.8 miniS4/i Cine Lens for PL Mount is a durable, high-quality, and professional choice for filmmakers seeking superior optical performance. Its versatility and advanced features make it a valuable asset for any film or video production.

Cooke 75mm T2.8 miniS4/i Cine Lens - Focus Scales Marked in Feet - PL Mount Features

  • Optical Design: The optics are designed to give maximum performance at full aperture with superior control of flare, distortion and spherical aberration.
  • i Electronics: Accessible via contacts in PL mount that sync with /i compatible cameras.
  • Colour Balance: All miniS4/i prime lenses are colour balanced to a specification within parameters approved by Kodak.
  • Aperture: All miniS4/i primes have a true T2.8 aperture and cover Super 35mm format.
  • Index Marks: Every index mark is labelled. More detailed markings allow for more detailed focus control.
  • Focus Movement: Cooke cam-style focus movement coupled with the added benefit of a large lens barrel diameter, has allowed for an increased number of focus markings, particularly at close focus. Spherical aberration has been controlled throughout the range of focal lengths to eliminate compensation of changes in back focus with aperture
  • Camera Mounts: Arriflex PL Mount
  • Focus Scaling: Large, clear numerals on both sides of the focus barrel benefit thefocus puller when shooting under difficult lighting conditions. Plus the the Entrance Pupil position is engraved on the lens.
  • Compatibility: All Cooke miniS4/i primes have a common fixed front diameter of 87mm, with a focus drive gear of 121T x 0.8 mod and an iris drive gear of 119T x0.8.
  • External Finish: A scratch resistant PTFE hard anodised finish is provided on all Cooke lenses, providing a durable, hard-wearing surface to meet the most demanding environmental conditions.
  • Iris: An eight-leaf linear module iris assembly is fitted into miniS4/i primes with an aperture range of T2.8 to T22.
  • Weight/Size Ratio: The lenses are designed for all shooting applications, including handheld and Steadicam, providing comfortable balance ratio with the latest compact cameras.
  • Reliability and Service: miniS4/i prime lenses are designed to meet a market requirement for fully reliable performance with a minimum of downtime.

Warranty Information

This used item has a FREE 180-day warranty. See details.

Key Features

  • Capture stunning, cinematic visuals with this 75mm Cooke Cine Lens, perfect for film.
  • Achieve beautiful bokeh with the T2.8 aperture, ideal for shallow depth of field shots.
  • Enjoy robust build quality, ensuring durability for demanding professional environments.
  • Experience precise manual focus, giving you full creative control over your images.
  • This PL Mount lens offers compatibility with a wide range of professional cinema cameras.
  • Get exceptional image quality and clarity across the entire Super 35mm format.
