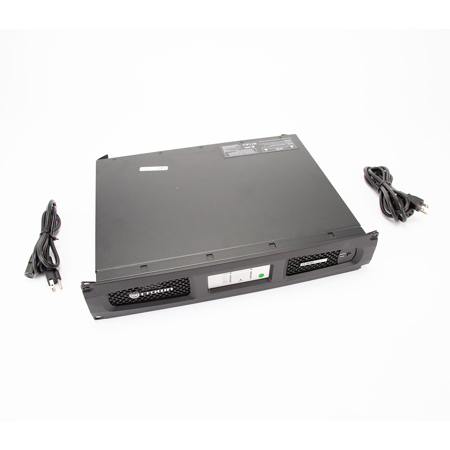

Used Crown Audio DCi 2X300 DriveCore Install Analog Series 2-Channel 2x300W Power Amplifier

SKU: US1758741 MFR: DCI2X300-U-USFX
$358.00
New: $1,670.00
Used Savings: $1312 (79%)
OR
Earn VIP Reward Points

Key Features

  • Experience pristine audio with this Crown power amplifier, boasting a >108dB signal-to-noise ratio.
  • DriveCore tech ensures high power output at 300W @ 8 Ohms, perfect for live sound or installations.
  • This 2-channel power amplifier offers flexible impedance matching for 2-16 Ohms, 70Vrms & 100Vrms systems.
  • Benefit from reliable protection circuits, guarding your speakers and amplifier from damage.
  • Efficient cooling system maintains optimal temperature, ensuring consistent performance for your audio.
  • Ideal for installations, this Crown amplifier delivers low distortion, high-quality sound for any venue.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$21.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Crown Audio DCI 2X300 Specifications

  • Channels

    2

  • Frequency Response

    +/- 0.25 dB (8 Ohms, 20 Hz - 20 kHz)

  • Signal To Noise Ratio

    > 108 dB (A-weighted)

  • Total Harmonic Distortion

    0.35% (at full rated power, 20 Hz - 20 kHz)

  • Voltage Gain

    34 dB

  • Damping Factor

    >1000 (20 Hz to 100 Hz)

  • Input Impedance

    10 kOhms, 5 kOhms (nominal balanced, unbalanced)

  • Maximum Input Level before Compression

    +20 dBu

  • Maximum Input Level before Clipping

    +26 dBu

  • Rated Power Output

    Dual-Mode
    150W @ 2 Ohm
    300W @ 4 Ohm
    300W @ 8 Ohm
    150W @ 16 Ohm

    Bridge Mono Mode
    300W @ 4 Ohm
    600W @ 8 Ohm
    600W @ 16 Ohm

  • Load Impedance

    2 - 16 Ohms; 70Vrms and 100Vrms (Stereo/Dual Mode)

  • Load Impedance Bridge Mono

    4 - 16 Ohms; 140Vrms and 200Vrms

  • Cooling

    Continuously variable speed forced air, front to back airflow

  • Maximum Fan Noise

    45 (re dBA SPL @ 1M)

  • Required AC Mains (+/- 10%)

    100V-240V - 50/60 Hz

  • IEC Power Connector

    15A

  • Dimensions

    19 x 3.5 x 14.25" (48.3 x 8.9 x 35.63cm)

  • Weight

    18.8 lb (8.53kg)

About Crown Audio DCi 2X300 DriveCore Install Analog Series 2-Channel 2x300W Power Amplifier

Enhance your sound system with the DCi 2X300 DriveCore Install Analog Series 2-Channel 2x300W Power Amplifier. This high-performance installation amplifier is part of the innovative DriveCore Install series, boasting proprietary DriveCore technology. Crafted to the highest industry standards, the DCi Series amplifiers offer system integrators the advanced features and flexibility needed for the demanding audio requirements of the 21st century.

This versatile and compact amplifier is highly energy-efficient, continuing Crown's tradition of leadership in professional and commercial power amplifier technology. It offers true rack density power points of 300W or 600W in 2-, 4-, or 8-channel configurations, all housed in a 2 Rack Unit form factor. This design allows for smaller infrastructure rooms, reducing operational costs and offering maximum installation flexibility.

The DCi 2X300 DriveCore Amplifier features Direct Drive Constant Voltage, allowing for the use of smaller gauge wiring to drive speakers at either 70Vrms or 100Vrms. This eliminates the need for a step-up transformer at the output, resulting in higher audio quality and improved efficiency.

The amplifier also offers channel independent Hi-Z/Low-Z selection, enabling you to drive either one or two speakers in low-Z mode, or hundreds of speakers in high-Z mode (70Vrms or 100Vrms). This provides superior design flexibility, as the DCi powers all loads on a channel-by-channel basis.

Unlike amplifiers from other manufacturers, the DCi Series channels are bridgeable even in 100Vrms mode, offering adaptability for higher power applications such as subwoofers. The amplifier also includes a remote on/off interface, allowing for easy integration into a control system for power conservation.

The DCi 2X300 DriveCore Amplifier features an efficient cooling design, with internal cooling fans providing airflow to the most heat-generating parts. The fans are incorporated into the amplifier brick design, maximizing cooling while minimizing wasted energy and noise.

With its Advanced Power Factor Correction (PFC) Universal Power Supply, this installation amplifier delivers power more efficiently under almost any condition, resulting in less power dissipated and less heat in your racks. Experience the superior sound and efficiency of the DCi 2X300 DriveCore Install Analog Series 2-Channel 2x300W Power Amplifier.

Crown Audio DCi 2X300 DriveCore Install Analog Series 2-Channel 2x300W Power Amplifier Features

  • Exclusive DriveCore Technology - The patented DriveCore integrated circuit combines hundreds of discrete circuits into one chip for better performance, lower power consumption and improved reliability
  • Power Saving Modes - Power consumption in sleep mode is less than 1W
  • Auto Standby - Amplifier goes into Sleep mode after 30 minutes of no input signal
  • Remote Power Off - Sleep mode activated via AUX port
  • 70 V / 100 V Direct Drive - Each channel individually selectable for low-Z or high-Z operation.
  • 100 V Direct Drive Capability - Higher voltage allows more speakers per output and reduced wiring costs.
  • TLC Protection - Protects amplifier from excessive heat and maintains operation by intelligently applying gain reduction when necessary
  • Advanced Protection Circuits - Amplifier and loads are protected against shorted outputs, DC, mismatched loads, overheating, over- or under-voltage, and high frequency overload
  • Complies with Green Edge by Harman - Environmentally friendly practices in design, manufacturing, and packaging complement energy-efficient operation
  • PFC Power Supply - the next generation power supply design guarantees minimum rated power delivered for drastically lower current draw

Warranty Information

This used item has a FREE 90-day warranty. See details.

Key Features

  • Experience pristine audio with this Crown power amplifier, boasting a >108dB signal-to-noise ratio.
  • DriveCore tech ensures high power output at 300W @ 8 Ohms, perfect for live sound or installations.
  • This 2-channel power amplifier offers flexible impedance matching for 2-16 Ohms, 70Vrms & 100Vrms systems.
  • Benefit from reliable protection circuits, guarding your speakers and amplifier from damage.
  • Efficient cooling system maintains optimal temperature, ensuring consistent performance for your audio.
  • Ideal for installations, this Crown amplifier delivers low distortion, high-quality sound for any venue.
