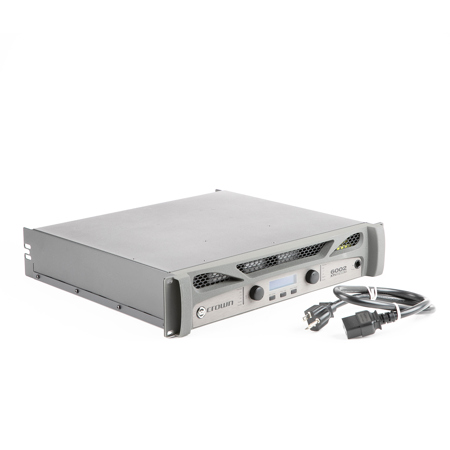

Used Crown Audio XTi 6002 1200W Stereo Power Amplifier, 20Hz to 20kHz Frequency Response, 1.4Vrms Input Sensitivity

3000W @ 2 Ohms Stereo (per Channel)
2100W @ 4 Ohms Stereo (per Channel)
1200W @ 8 Ohms Stereo (per Channel)
6000W @ 4 Ohms Bridged-Mono
4200W @ 8 Ohms Bridged-Mono

1.4 Vrms

(at 1 watt, 20 Hz - 20 kHz) +0 dB, -1 dB

103 dB (A weighted)

< 0.5%

> 500

20 kHz - 1 kHz: > 70 db

20k ohms balanced, 10k ohms unbalanced

+22 dBu typical

100 VAC, 120 VAC, 220-240 VAC 50/60 Hz

15.3A; no more than 180W at idle

0 Deg.C to 40 Deg.C at 95% relative humidity (non-condensing)

Two front-panel rotary level controls, one for each channel

On/Off switch applies AC power to the amplifier

Three buttons near the LCD screen that are used to access menu items and front panel lockout

Backlit liquid crystal display that shows preset and processing status

Green LED, one per channel, illuminates when a very low-level signal is present at input (may be used for troubleshooting cable runs).

Green LED flashes when output signal exceeds -10 dB below clip.

Green LED flashes when output signal level exceeds -20 dB below clip.

Green LED, one per channel, illuminates when the amplifier is ready to produce audio.

Red LED, one per channel, turns on at the threshold of audible distortion

Red LED, one per channel, illuminates under excessive temperature conditions

Blue LED illuminates when the amplifier has been turned on and has power

XLR, one per channel

Loop-thru signal from input connector for linking another amplifier, one per channel.

Two Neutrik Speakon NL4MP output connectors. Channel-1 Speakon is wired with Ch. 1 and Ch. 2 outputs for use with optional single 4-conductor cable. Two binding post outputs (in parallel with Speakon connectors).

Type B, connects to HiQnet network.

Steel

Cast-aluminum

Proportional speed fan with front-to-rear airflow.

19 x 3.5 x 16.2" (48.26 x 8.89 x 41.14cm)

24.0 lbs (10.9kg)
